Automatic Conveyor Powder Spray Line Metal Electrostatic Powder Coating Production Line

Automatic Conveyor Powder Spray Line Metal Electrostatic Powder Coating Production Line

FOB Reference Price: Get Latest Price

≥1 Pieces

US $20000

≥5 Pieces

US $19000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 50W

Power:: Multi Power

Dimension(L*W*H):: L*W*H

Weight (KG):: 4000

Name:: Electrostatic Powder Coating Line

After-sales Service Provided:: Online support

After Warranty Service 1:: Video technical support

After Warranty Service 2:: Spare parts

Application:: Metal Surface Finishing

Usage:: Powder Coating Workpieces

Advantage:: High Efficiency Low Cost

Function:: Metal Surface Powder Coating

Quick Details

Machine Type:: Coating Production Line, Painting Equipment

Place of Origin:: Zhejiang, China

Brand Name:: COLO

Voltage:: 50W

Power:: Multi Power

Dimension(L*W*H):: L*W*H

Weight (KG):: 4000

Name:: Electrostatic Powder Coating Line

After-sales Service Provided:: Online support

After Warranty Service 1:: Video technical support

After Warranty Service 2:: Spare parts

Application:: Metal Surface Finishing

Usage:: Powder Coating Workpieces

Advantage:: High Efficiency Low Cost

Function:: Metal Surface Powder Coating

Product Description

Automatic Conveyor Powder Coating Production Line

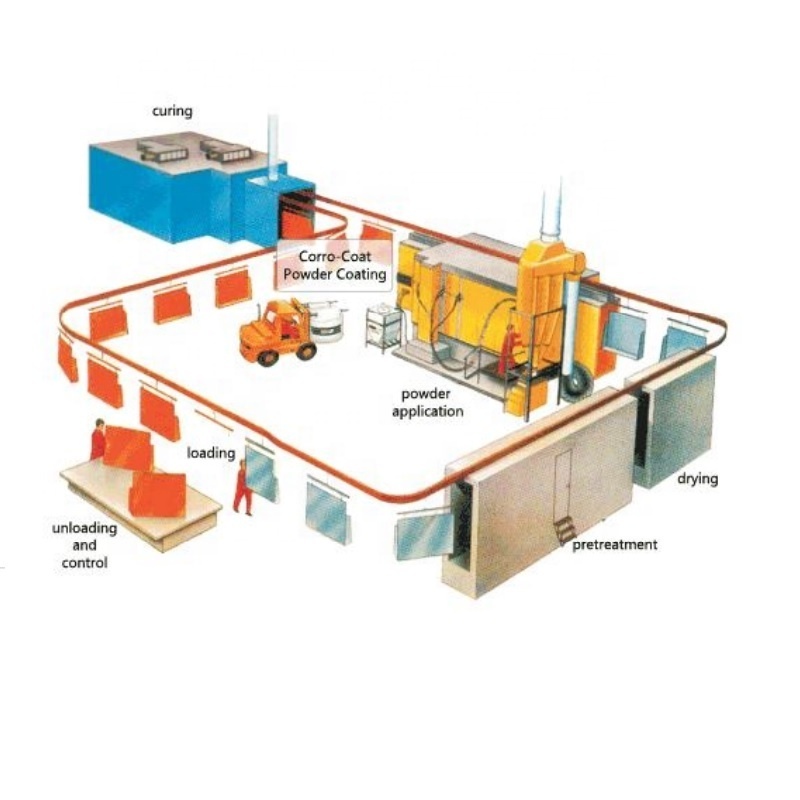

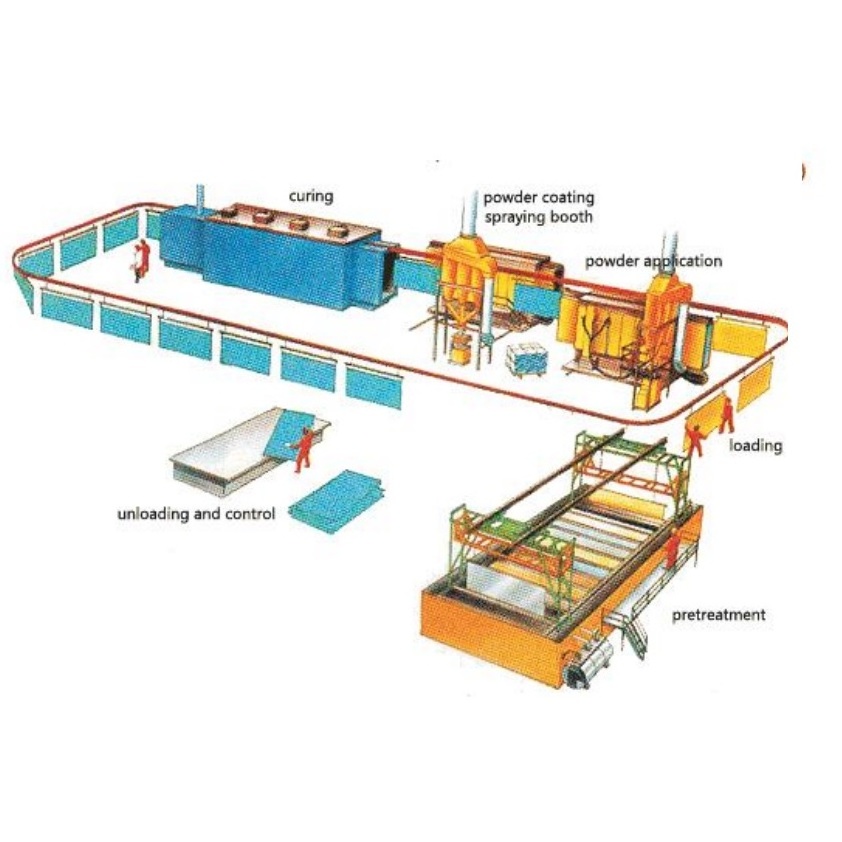

The whole automatic powder coating system line with d ipping tank pretreatment, powder coating system, powder coating booth and powder coating oven, suitable for metal workpieces coating, such as aluminum profile, LPG cylinder , alloy wheel, mold tree, statue, castings etc.

Tank pretreatment	L3.7×W2.5×H1.0（m）
Curing oven	L9.8×W(2.2~2.8)×H2.3（m）
Automatic spray booth	L6.0×W1.2×H1.8(m)
Curing oven	L12.5×W(1.6~2.2)×H2.3（m）
Powder feed center	1 set

Details Images

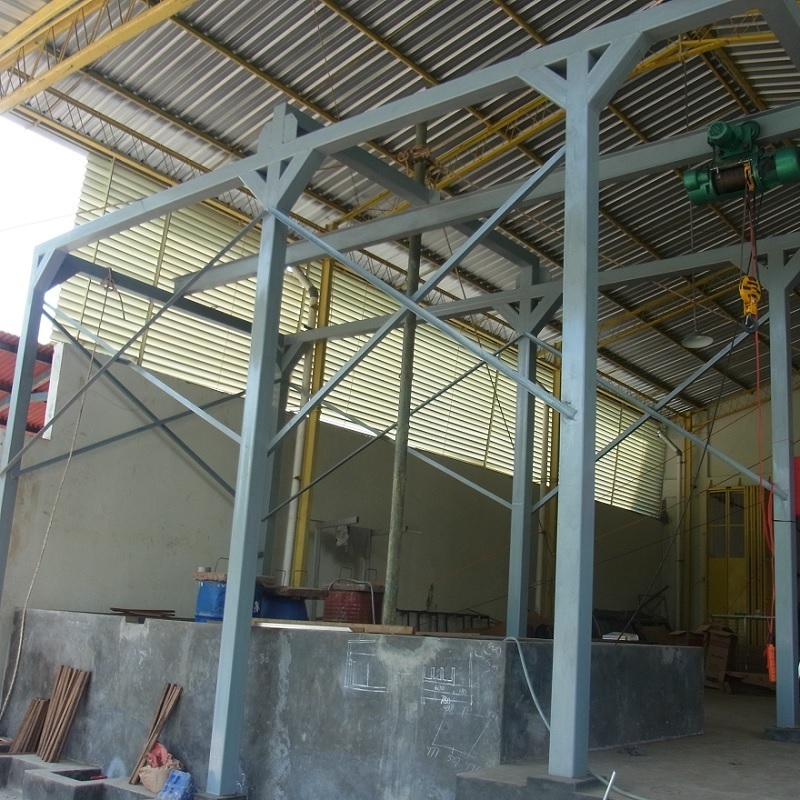

Dipping tank pretreatment

Include Hanging basket；1 set track frame；hoist with load 1 ton；1 set electric control system, 380v, 3 phase.

This pre-treatment system based on chemical reaction principle, the substrates dipping in the tank will react with the liquid to remove grease, scale, rust, dirts. obtains a superior surface on metal for quality powder coating or painting. The tank material can be plastic, cement, stainless steel.

Gas Heating Drying Oven

Inner size: L9.8×W(2.2~2.8)×H2.3（m）

Can be designed

Riello burner

PLC controller

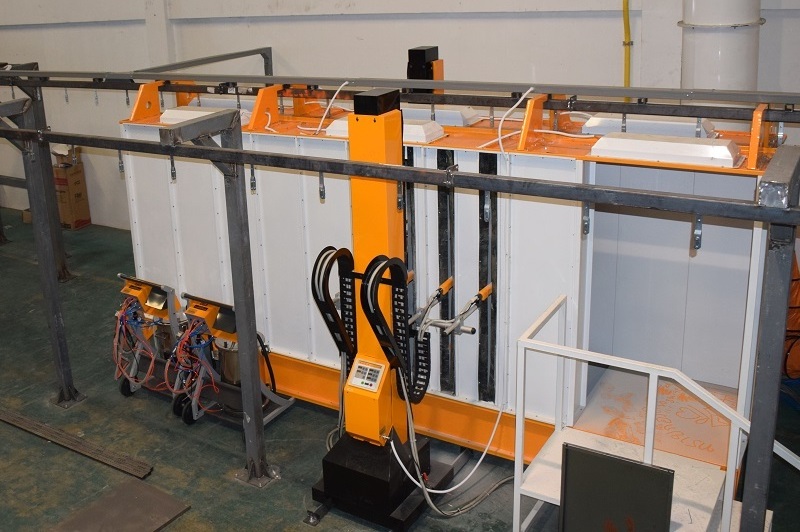

COLO Automatic Powder Coating System

Automatic powder spray guns installed in the reciprocators achieve continual and uniform powder coating, whose moving speed and stroke can be adjusted for precise demands. Reciprocating powder coating move to a new level of efficiency and quality.

The automatic powder spray guns are worked under a central control cabinet to easily set all processing parameters. Custom quantity of auto guns based on actual products and application.
