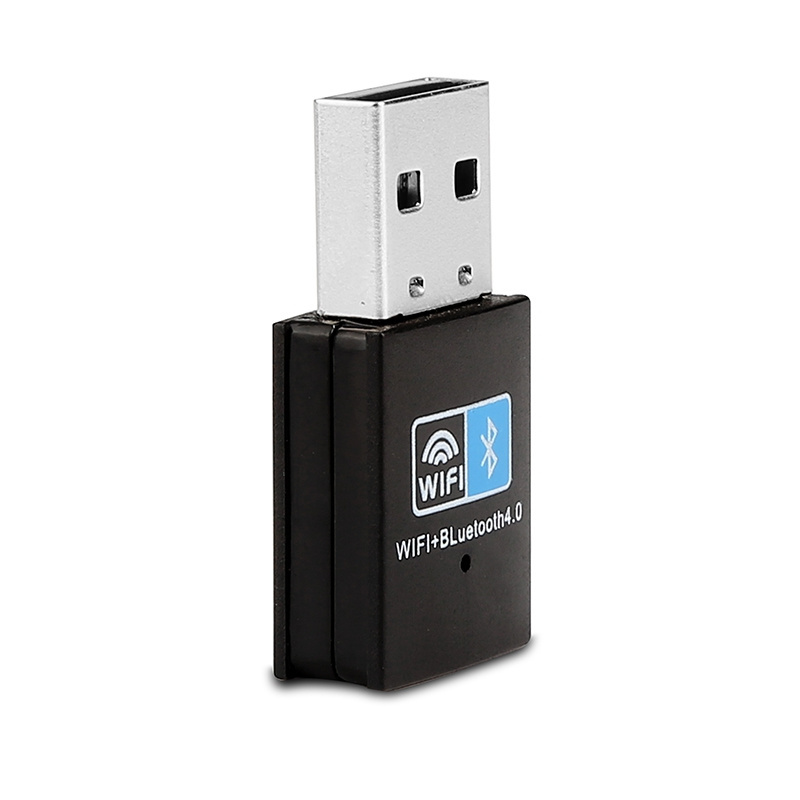

150mbps 2 in 1 BT4.0 wifi adapter dongle for PC/laptop

150mbps RTL8723Bu chipset 2 in 1 BT 4.0  wifi adapter dongle  for PC/laptop

1. General description:

* FX-BW150 is a highly integrated single-chip 802.11n Wireless LAN (WLAN) USB 2.0 Multi-Function network interface controller with integrated Bluetooth 2.1/3.0/4.0 controller. It is plug and play for windows10/8, 2 in 1 BT4.0  and wifi function.

*It combines a WLAN MAC, a 1T1R capable WLAN baseband, and RF in  single chip.

*It provides a complete solution for a high-performance integrated wireless and Blue-tooth device.

*The integration provides better coordination between 802.11 and Bluetooth, and with sophisticated dynamic power control and packet traffic arbitration.

* FX-BW150 is able to provide the best coexistence performance Overview.

2. Main features:

Wireless standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Host interface USB2.0
Frequency band 2.4 ~ 2.4835GHz
Data rate 11n: Up to 150M
11g: 6/9/12/18/24/36/48/54Mbps(auto adaptation)
11b: 1/2/5.5/11M(auto adaptation)
Working channel: 14
Data modulation: OFDM, OFDM with PSK,BPSK,16-QAM,64-QAM,CCK,DQPSK,DBPSK
RF power 20dBm (Maximum)
Transmission rate:150Mbps (Maximum) LED: Status
Operating system: Windows XP/VISTA/WIN7/WIN8/MAC/LINUX
Product size: 37 * 19 * 7mm
Color: Black
Antenna length: 122mm
Net weight: 8.9g

3. Datasheet and Specification:
