Quick Details
-
Table Travel (Y) (mm):
-
500 mm
-
Dimension(L*W*H):
-
2650x2260x2400mm
-
Weight (T):
-
5.5 T
-
Table Travel (Z) (mm):
-
500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.005
-
Range of Spindle Speed(r.p.m):
-
0 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
7.5
-
Max. Table Load(kg):
-
600 kg
-
Feed Speed(mm/min):
-
0 - 36 mm/min
-
Rapid Feed Speed(m/min):
-
36/36/36
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
huabei
-
Voltage:
-
220V/380V
-
Marketing Type:
-
New Product 2023
Quick Details
-
Table Size (mm):
-
1000x500mm
-
Number of Axes:
-
3
-
Table Travel (X) (mm):
-
800 mm
-
Table Travel (Y) (mm):
-
500 mm
-
Dimension(L*W*H):
-
2650x2260x2400mm
-
Weight (T):
-
5.5 T
-
Table Travel (Z) (mm):
-
500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.005
-
Range of Spindle Speed(r.p.m):
-
0 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
7.5
-
Max. Table Load(kg):
-
600 kg
-
Feed Speed(mm/min):
-
0 - 36 mm/min
-
Rapid Feed Speed(m/min):
-
36/36/36
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
huabei
-
Voltage:
-
220V/380V
-
Marketing Type:
-
New Product 2023

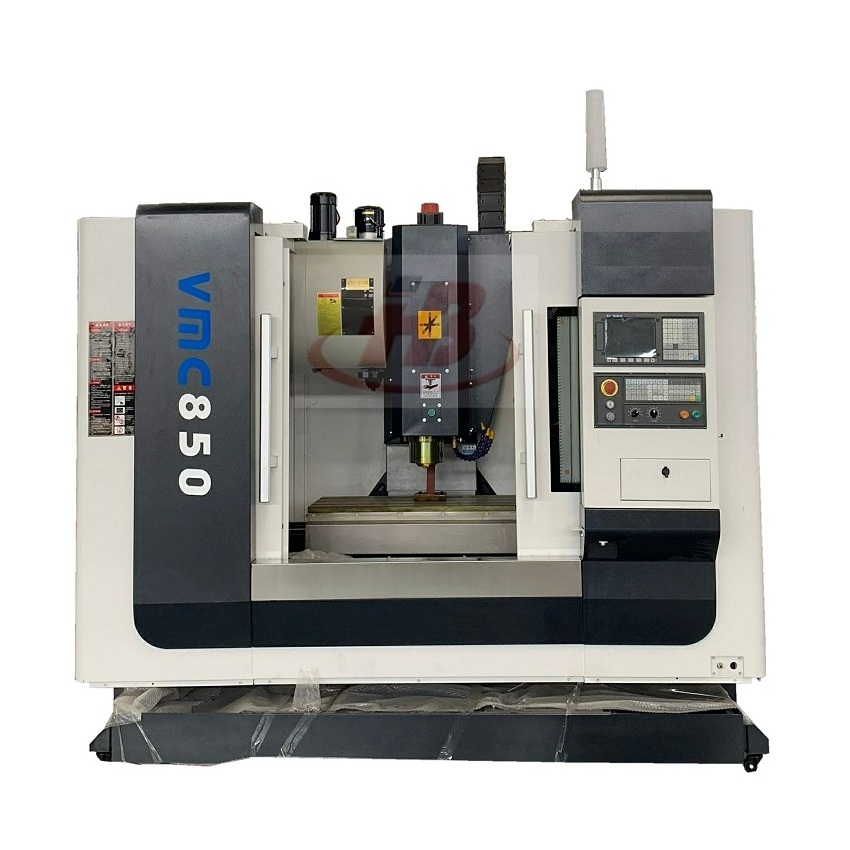

Main image
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from roughn
machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring
machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring
Product Paramenters
|
Model project
|
Unit
|
Parameter
|
|
Table size
|
mm
|
1000x500
|
|
X/Y/Z axis stroke
|
mm
|
800/500/500
|
|
Distance from spindle end face to workbench
|
mm
|
120-620
|
|
Distance from spindle center to column
|
mm
|
540
|
|
Worktable load
|
kg
|
600
|
|
T-groove of worktable
|
mm
|
5-19x90
|
|
X/Y/Z axis fast feed
|
m/min
|
36/36/36
|
|
X/Y/Z guide rail specifications
|
mm
|
RGH35
|
|
Positioning accuracy
|
mm
|
±0.008
|
|
Repetitive locator
|
mm
|
±0.005/300
|
|
Minimum quantitative unit
|
mm
|
±0.001
|
|
Speed of mainshaft
|
rpm
|
8000
|
|
Spindle end taper
|
mm
|
BT40-140
|
|
Hat-style tool magazine
|
pcs
|
24T
|
|
Controller system
|
/
|
KND2100MCI
|
|
X/Y/Z axis motor power
|
N
|
15+15+23
|
|
Spindle motor power
|
Kw
|
7.5
|
|
Machine tool weight
|
Kg
|
5500
|
|
Outline dimension
|
mm
|
2650x2260x2400
|
Details Images
Packing & Delivery
|
PACKAGING
|
Plywood
|
|
Size
|
265x226x240 mm
|
|
Weight
|
1250kg
|
|
Packaging details
|
1. normal package is wooden box
2. European countries : the wooden box will be fumigated |
