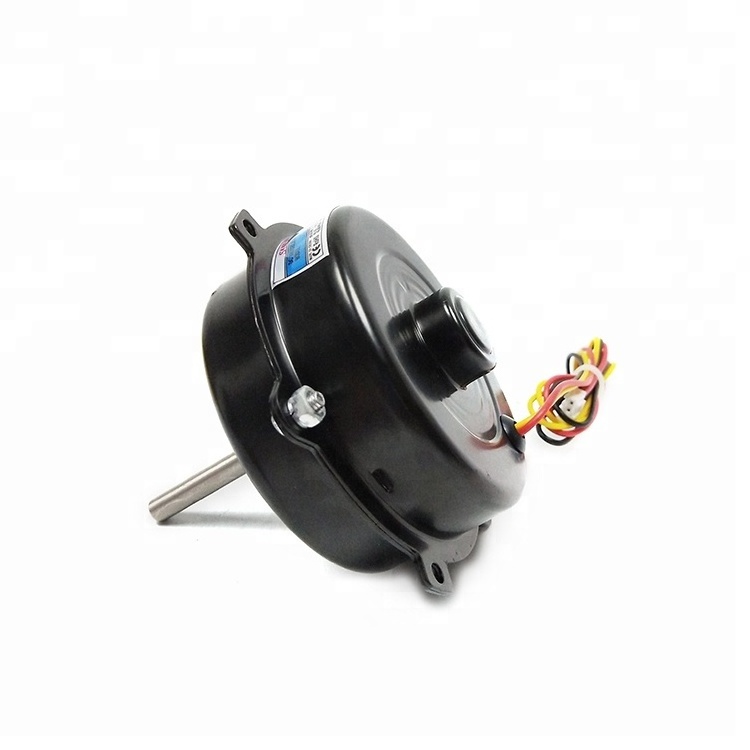

Cheap Price Power 24V Brushless Dc Motor With Power Wheelchair Motor

Cheap Price Power 24V Brushless Dc Motor With Power Wheelchair Motor

FOB Reference Price: Get Latest Price

≥200 Pieces

US $12.3

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product:: Brushless Dc Motor

Color:: Black

Dimension:: Dia83.5mmxH41mm

Shaft diameter:: 8mm

Operating Voltage Range:: 18to25.5

Rated Current:: 0.2

Power wire:: 2 wires

Option:: PWM/FG

Noise:: 38dB-A

Weight:: 870g

Quick Details

Speed(RPM):: 1600RPM

Continuous Current(A):: 0.2A

Place of Origin:: Guangdong, China

Product:: Brushless Dc Motor

Color:: Black

Dimension:: Dia83.5mmxH41mm

Shaft diameter:: 8mm

Operating Voltage Range:: 18to25.5

Rated Current:: 0.2

Power wire:: 2 wires

Option:: PWM/FG

Noise:: 38dB-A

Weight:: 870g

DC Brushless Motor

Application

Office computer peripherals, Electronic digital consumer products, Industrial control products, Medical equipments, Fans, etc.

Product Name	DC Brushless motor
Phase & Poles	Three phase 12 poles
Rotor	Inner rotor
Rotation Direction	CW / CCW
Materials	Cast iron housing, Stainless steel shaft
Bearing & Life time	2 ball bearing: 40000~50000h
Features	Reverse protection; Auto Re-start
Operating Temperature	-10℃ ~ 60℃
Lead Wire	RED: Positive(+); BLACK: Negative(-) Wire insert: 2.5-2P / NOP(Tin exposed 5mm)
Lead Wire	Custom: RED: Positive(+); BLACK: Negative(-); YELLOW: Function wire. Wire insert: 2.5-3P/4P/NOP(Tin exposed 5mm)
Certification	CE, RoHS

Dimension: Unit (mm)

Model	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	No-load Speed	Noise
NO	VDC	VDC	Amp	Watt	R.P.M	dB-A
SF8440BM	12	6to13.5	0.18	2.16	1600	34.0
SF8440BH	12	6to13.5	0.25	3.00	2000	42.0
SF8440BM	24	18to25.5	0.20	4.80	1800	38.0
SF8440BH	24	18to25.5	0.25	6.00	2500	48.0

Note:

1. We can produce more power motor. Please tell us your requirements.

2. Voltage: DC5V, DC12V, DC24V, other voltage (within 48V)
3. Power: Energy saving design. Power with 50W.
4. Warranty: 1 year.

Packing & Delivery

Packing Details : Samples: 1-10pcs/carton, Large order goods: Use the right carton according to the total quantity
Delivery Details : 3-30 days after received deposit payment
