China High Output Mining Equipment 180 Ton Vertical Shaft Compound Impact Crusher for Quarry Sand Making Plant

China High Output Mining Equipment 180 Ton Vertical Shaft Compound Impact Crusher for Quarry Sand Making Plant

FOB Reference Price: Get Latest Price

≥1 Sets

US $100000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Greatwall

Dimension(L*W*H):: depends on models

Weight:: 42000 KG

Color:: customized

Installation:: Technical Guidance

Advantage:: High Effiency

Max feeding size:: 240mm

Price:: Favorable

Quality:: High Level

Features:: High Crushing Efficiency

Crusher type:: Quarry Machine Stone Crusher

Quick Details

Application:: Quarry,stone ,rock sand making, Construction

Capacity(t/h):: 30-160tph

Place of Origin:: Henan, China

Brand Name:: Greatwall

Dimension(L*W*H):: depends on models

Weight:: 42000 KG

Color:: customized

Installation:: Technical Guidance

Advantage:: High Effiency

Max feeding size:: 240mm

Price:: Favorable

Quality:: High Level

Features:: High Crushing Efficiency

Crusher type:: Quarry Machine Stone Crusher

Product Description

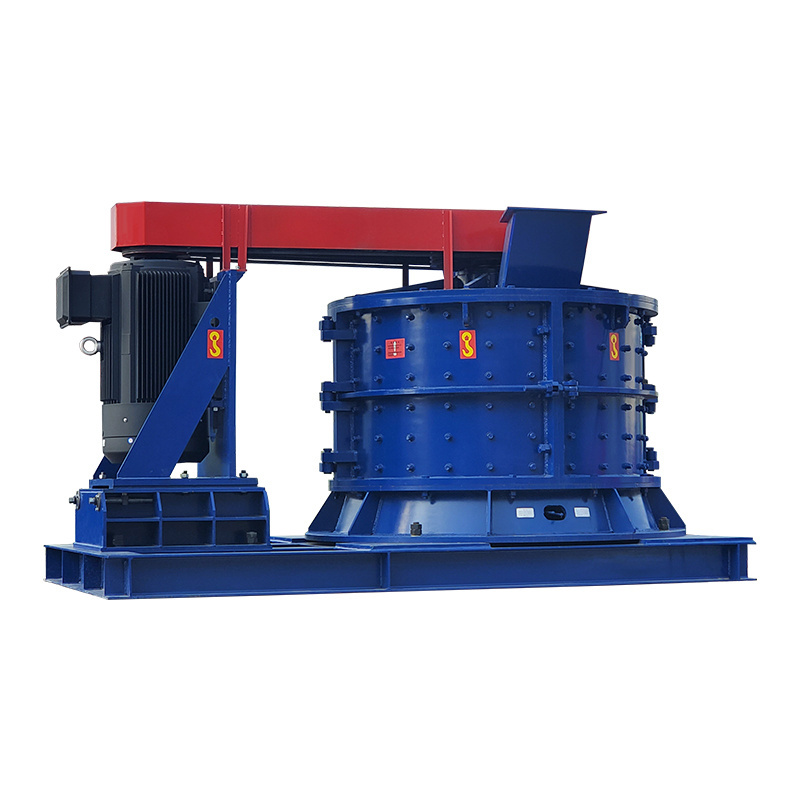

Vertical composite sand making machine description:

Composite sand making machine is a fine crushing equipment and is widely used in building materials, construction sand making, chemical industry, metallurgy, electricity, energy and other processes.

It is mainly used to crush materials with medium hardness and below. In terms of crushing and making sand from soft rocks, it not only has strong processing capabilities, but also has good particle shape of the finished product.

And compared with the axial impact crushing equipment, the cost is relatively low, making it the best choice for small and medium-sized investors.

Features of composite sand making machine:

* Large crushing ratio and high yield
The maximum feed particle size is 240mm, the finished product discharge particle size is <3mm, and the crushing ratio is large;the one-time finished product rate is as high as 70%-90%

.
* The wearing parts have a long service life and low loss.
The wearing parts are made of practical multi-alloy materials with high hardness and high toughness, which have a long service life; the distance between the hammer head and the impact plate is adjustable to increase the crushing effect between materials and reduce wear.

* Long service life and low loss of wearing parts
The wearing parts are made of practical multi-alloy materials with high hardness and high toughness, which have a long service life; the distance between the hammer head and the impact plate is adjustable to increase the crushing effect between materials and reduce wear.

* Strong processing capacity and high output

It adopts straight-through crushing, adopts rigid connection between the plate hammers, and uses the inertia of the rotor to impact and crush the materials, which improves the processing capacity of the equipment. Compared with the same type of equipment,the output is higher.

* Optimal design and performance upgrade of crushing chamber
Through the optimized design of the rotor part and crushing cavity, a multi-stage continuous crushing cavity is formed to fully utilize the energy and space, thus improving the performance of the machine.

Product Paramenters

Model	Max feed size(mm)	ouput size(mm)	Rotary speed (r/min)	Capacity(t/h)	Power(Kw)	Demension(mm)
ZSL1250	≤150	≤3 70-90%	510-770	30-45	90	313017301840
ZSL1500	≤180	≤3 70-90%	430-640	50-70	132	353020502200
ZSL1750	≤200	≤3 70-90%	420-540	70-100	160	382023702300
ZSL2000	≤220	≤3 70-90%	360-500	90-120	200	430026102450
ZSL2000	≤240	≤3 70-90%	330-450	120-160	250	447229302554
