Quick Details
-
Color:
-
full color
-
Panel Size:
-
P10(240X1000MM), P10(240X1000MM)
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
L1
-
Brightness:
-
800-4000, 800-4000
-
pixel density:
-
P4X8 P5X10 P6 P6.5 P8 P10 P16, P4X8 P5X10 P6 P6.5 P8 P10 P16
-
Color Depth:
-
Full Color, Full Color
-
Lifespan (hours):
-
100000 Hours, 100000 Hours
-
IP Rating:
-
good, good
-
View Angle（H/V）:
-
170degree, 170degree
-
Product name:
-

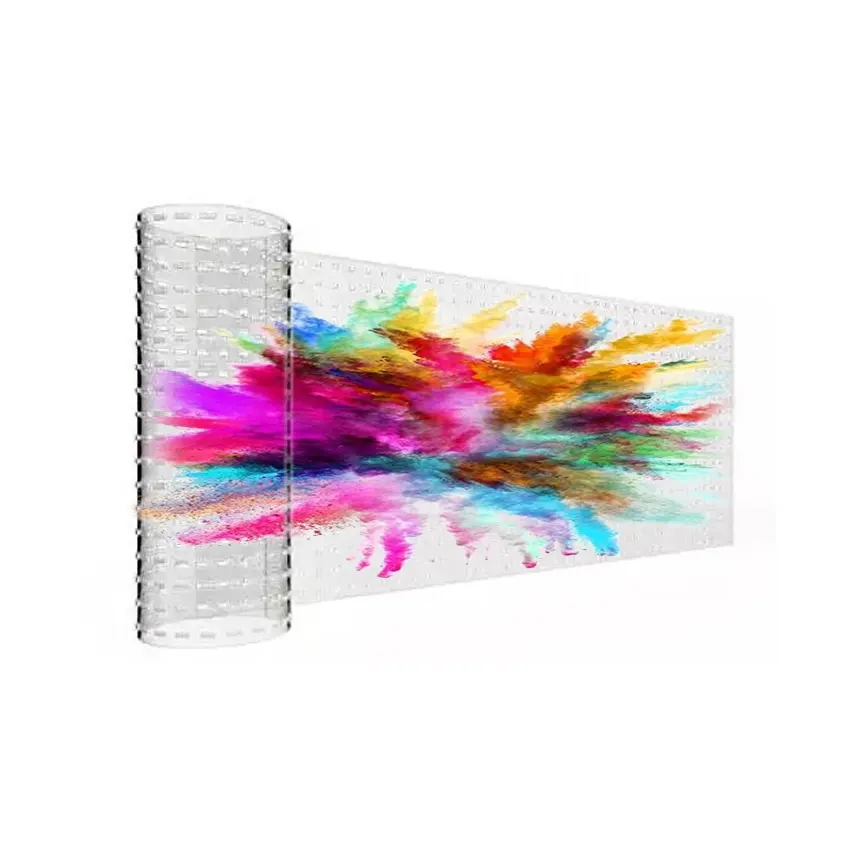

Led Film screen
-
Display Function:
-
Video Picture Graphic Text Message
-
Usage:
-
Adertising
-
Certificate:
-
CE ROHS FCC
-
Weight:
-
1.5kg
-
Warranty:
-
2 Years
-
Lamp life (hours)::
-
100000 Hours
Quick Details
-
Application:
-
Indoor, Outdoor, Semi-outdoor
-
Type:
-
LED
-
Brand Name:
-
Techlets
-
Color:
-
full color
-
Panel Size:
-
P10(240X1000MM), P10(240X1000MM)
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
L1
-
Brightness:
-
800-4000, 800-4000
-
pixel density:
-
P4X8 P5X10 P6 P6.5 P8 P10 P16, P4X8 P5X10 P6 P6.5 P8 P10 P16
-
Color Depth:
-
Full Color, Full Color
-
Lifespan (hours):
-
100000 Hours, 100000 Hours
-
IP Rating:
-
good, good
-
View Angle（H/V）:
-
170degree, 170degree
-
Product name:
-
Led Film screen
-
Display Function:
-
Video Picture Graphic Text Message
-
Usage:
-
Adertising
-
Certificate:
-
CE ROHS FCC
-
Weight:
-
1.5kg
-
Warranty:
-
2 Years
-
Lamp life (hours)::
-
100000 Hours
Products Description
Specification
|
Model
|
T10
|
customization
|
|
Pixel pitch
|
10mm-10mm
|
√3.91~50mm
|
|
led number
|
1921
|
1921 or 2121
|
|
Module size/PC
|
960mm*80mm
|
Can be cut to any shape
|
|
Box size
|
960mm*320mm*45mm
|
-
|
|
Pixel density
|
10000px/㎡
|
-
|
|
Color
|
1R1G1B
|
-
|
|
The optimal viewing distance
|
＞10m
|
＞4m
|
|
Transparency
|
≤60%
|
|
|
Viewing angle
|
120°
|
-
|
|
Input(V)
|
AC110~220
|
-
|
|
Average power
|
≤200w/㎡
|
-
|
|
Max consumption
|
≤400w/㎡
|
-
|
|
Refresh rate
|
1920 Hz
|
√3840Hz
|
|
Grayscale
|
12 bit
|
√16bit
|
|
White balance brightness
|
≤2000w/㎡
|
800~6000w/㎡
|
|
operating temperature range（℃）
|
-20℃-55℃
|
-
|
|
Storage temperature range(℃)
|
-25℃-90℃
|
-
|
|
Operating humidity range（RH）
|
10%-90%
|
-
|
|
Storage humidity range(RH)
|
20%-90%
|
-
|
|
Drive (S)
|
1/8S
|
static 、1/2、1/4、1/7、1/8、1/16S
|
|
Mean time of failure
|
≥6500
|
-
|
|
life
|
100000
|
-
|
|
Protection class
|
/
|
IP45
|
|
Screen material
|
PC+aluminum profile
|
-
|
|
Driver IC brand
|
Mingyang/Fuman
|
-
|
|
Panel power supply
|
LED ZQZ-PD
|
-
|
|
Weight
|
3.5KG/㎡
|
-
|
Applications
Installation Instructions
1) Cleansing the glass surface & Comfirming the size
2) Sticking the panel on glass & removing the air
3) Fixing frame & connecting film and HUB board
4) Putting aluminum cover on control bar
5) Power on main power box
6) Screen configuration & Sending program
3) Fixing frame & connecting film and HUB board
4) Putting aluminum cover on control bar
5) Power on main power box
6) Screen configuration & Sending program
Package
flight case/wooden case/carton case
