Quick Details
-
Brand Name:
-
CAIVI
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
20m*2m*3m
-
Weight:
-
15-20ton
-
Output (kg/h):
-
100 - 500
-
Certification:
-
CE/ISO
-
Automatic Grade:
-
automatic
-
Machine:
-
PU air hose production Line
-
Extruding material:
-
PVC/PE/PU/PS etc
-
Screw Diamter:
-
45-65mm
-
Certificate:
-
CE/ISO
-
Shipping term:
-
by sea or train
-
Motor:
-
Siemens
-
Final usage:
-
PU Air pipe
Quick Details
-
Screw Design:
-
Double-screw
-
Screw diameter (mm):
-
75 mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CAIVI
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
20m*2m*3m
-
Weight:
-
15-20ton
-
Output (kg/h):
-
100 - 500
-
Certification:
-
CE/ISO
-
Automatic Grade:
-
automatic
-
Machine:
-
PU air hose production Line
-
Extruding material:
-
PVC/PE/PU/PS etc
-
Screw Diamter:
-
45-65mm
-
Certificate:
-
CE/ISO
-
Shipping term:
-
by sea or train
-
Motor:
-
Siemens
-
Final usage:
-
PU Air pipe
PVC PE PU plastic high precision medical breathing tube making machine
Extruding materials :
This extrusion line can be used to manufacture most resin and plastics, including flexible and rigid PE, ABS, AS, EVA, PA, PC,PEI,POM,PP,PMMA,TPU,PS,etc
Types of products :
This extrusion line can be used to manufacture single and multi-lumen tube, multi color tube, single and multi-layer sheets, recycled materials and mixed-color granulates, and all kinds of spcial designed tubings.
Application Fields :
Fields such as medical device,electronic industry,automobile manufacturing,and construction pipe line and
laboratory.
Technical Parameters:
|
Type |
Screw diameter(mm) |
L/D |
Screw speed (rpm) |
Production(kg/h) |
P ower(kw) |
|
SJ-15 |
15 |
25 |
12-80 |
1-2 |
0.55-1.1 |
|
SJ-20 |
20 |
25 |
16-90 |
2-4 |
0.72-1.5 |
|
SJ-25 |
25 |
25 |
18-110 |
3-6 |
1.5-2.2 |
|
SJ-30 |
30 |
25,28,30 |
17-120 |
4-10 |
2.2-3 |
|
SJ-35 |
35 |
25,28 |
15-120 |
5-15 |
3-5.5 |
|
SJ-40 |
40 |
25,28 |
15-110 |
7-25 |
5.5-7.5 |
|
SJ-45 |
45 |
25,28 |
15-110 |
12-35 |
7.5-11 |
|
SJ-50 |
50 |
25,28 |
12-100 |
20-50 |
15-22 |
|
SJ-65 |
65 |
25,28,36 |
8-90 |
40-130 |
22-45 |

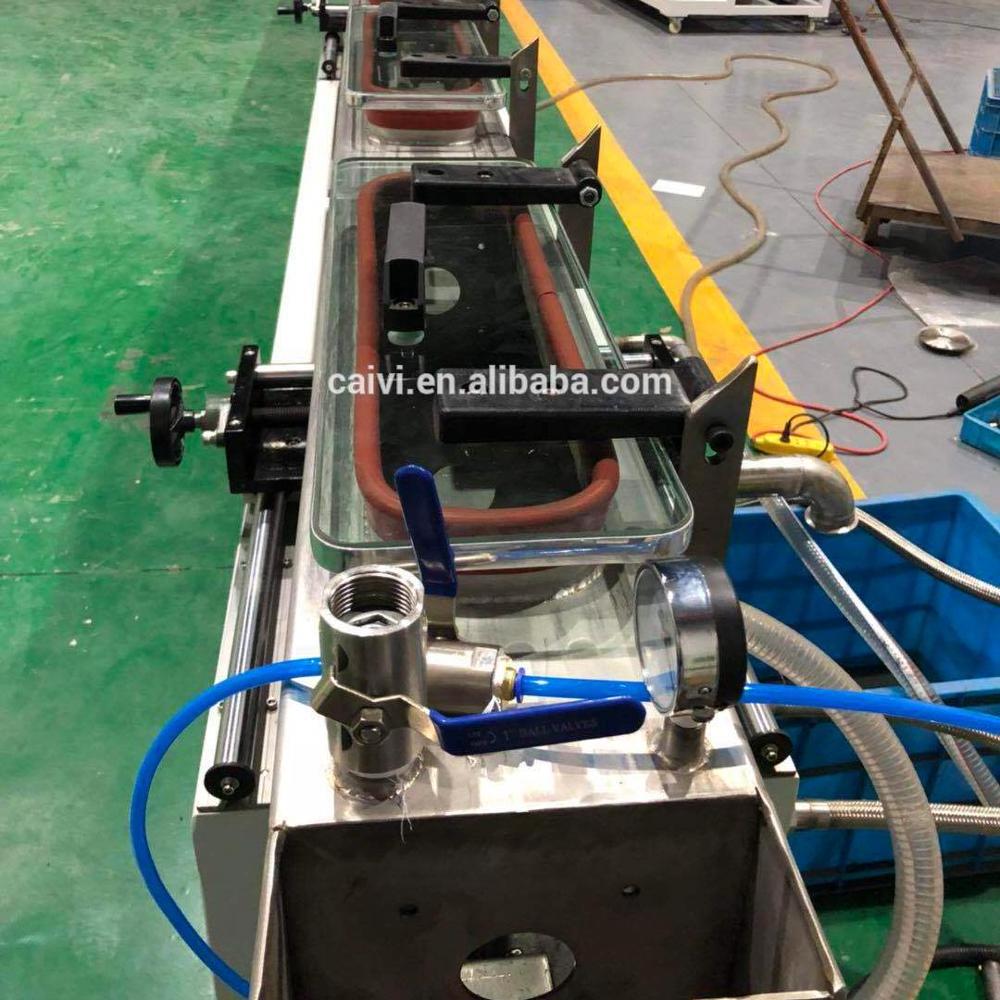

Product Pictures:
Exhibition Show:
Shipping Show:
For more information, please contact us without any hesitation,
Welcome to our facotry to check your Precision Pipe Production Line
