Quick Details
-
Warranty:
-
3
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
WQ
-
Model Number:
-
11
-
Material:
-
ZnSe
-
Product name:
-
zinc selenide window
-
Size:
-
Customized Size
-
Clear Aperture:
-
95%
-
Color:
-
yellow
-
Focal length:
-
5mm~1000mm 2%
-
Thickness:
-
0.5-50mm
-
Surface quality:
-
60/40 40/20
-
Diameter:
-
3-300mm
-
Wavelength:
-
10.6um
Quick Details
-
Use:
-
Infrared Optical Lens
-
Structure:
-
Other
-
Shape:
-
Other
-
Warranty:
-
3
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
WQ
-
Model Number:
-
11
-
Material:
-
ZnSe
-
Product name:
-
zinc selenide window
-
Size:
-
Customized Size
-
Clear Aperture:
-
95%
-
Color:
-
yellow
-
Focal length:
-
5mm~1000mm 2%
-
Thickness:
-
0.5-50mm
-
Surface quality:
-
60/40 40/20
-
Diameter:
-
3-300mm
-
Wavelength:
-
10.6um
Products Description

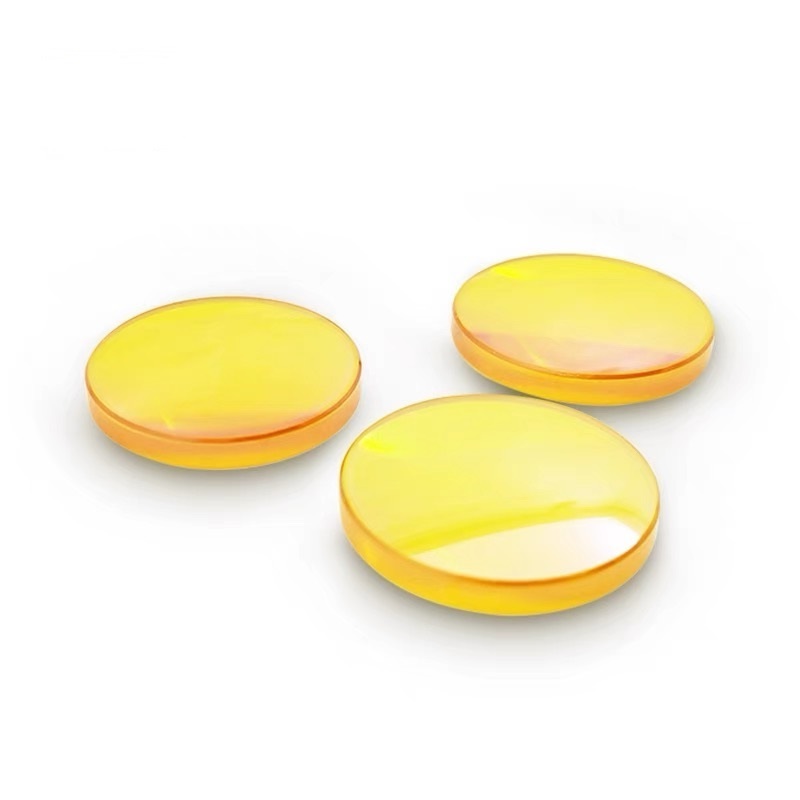

Zinc selenide (ZnSe) lenses
are designed for focusing or collimation applications in medium and long wave infrared spectroscopy. These lenses are made of II-VI infrared zinc selenide material, have a volume absorption coefficient of <0.0005cm-1 at a wavelength of 10.6μm, and are available without coating or in a variety of broadband anti-reflective coating options. 8-12μm coatings are ideal for use with CO2 lasers and thermal camera applications, while dual-band 3-12μm coatings are suitable for hyperspectral applications. Zinc selenide plano-convex lenses have irregularities of <λ/20 at 10.6μm wavelengths, a surface quality of 40-20, and a surface roughness of <50Å. Available in three diameter options with effective focal lengths ranging from 12.7mm to 200mm.
|
Material
|
Zinc selenide
|
|
Purity
|
99.999%
|
|
Surface accuracy
|
1/4-1/10λ
|
|
Surface quality
|
40/20-10/5
|
|
Coating
|
Dual AR/AR
|
|
Transmittance
|
＞99%
|
|
Coating area
|
＞95%
|
