Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JinJia
-
Model Number:
-
HW-1T~50T
-
Product name:
-
Heavy duty high speed hydraulic winch
-
Motor:
-
Chinese Famous Brand
-
Color:
-
Customized
-
Type:
-
Standard
-
Usage:
-
skid steer/towing line/ truck crane/boat/trailer/bulldozer/ lifting
-
Material:
-
Steel Carbon
-
Certification:
-
CE ISO SGS GOST
-
Warranty:
-
12 Months
-
Power:
-
Hydraulic System
-
Structure:
-
Cable Drum
Quick Details
-
Power Source:
-
Hydraulic
-
Application:
-
CRANES
-
Capacity:
-
1T~50T
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JinJia
-
Model Number:
-
HW-1T~50T
-
Product name:
-
Heavy duty high speed hydraulic winch
-
Motor:
-
Chinese Famous Brand
-
Color:
-
Customized
-
Type:
-
Standard
-
Usage:
-
skid steer/towing line/ truck crane/boat/trailer/bulldozer/ lifting
-
Material:
-
Steel Carbon
-
Certification:
-
CE ISO SGS GOST
-
Warranty:
-
12 Months
-
Power:
-
Hydraulic System
-
Structure:
-
Cable Drum

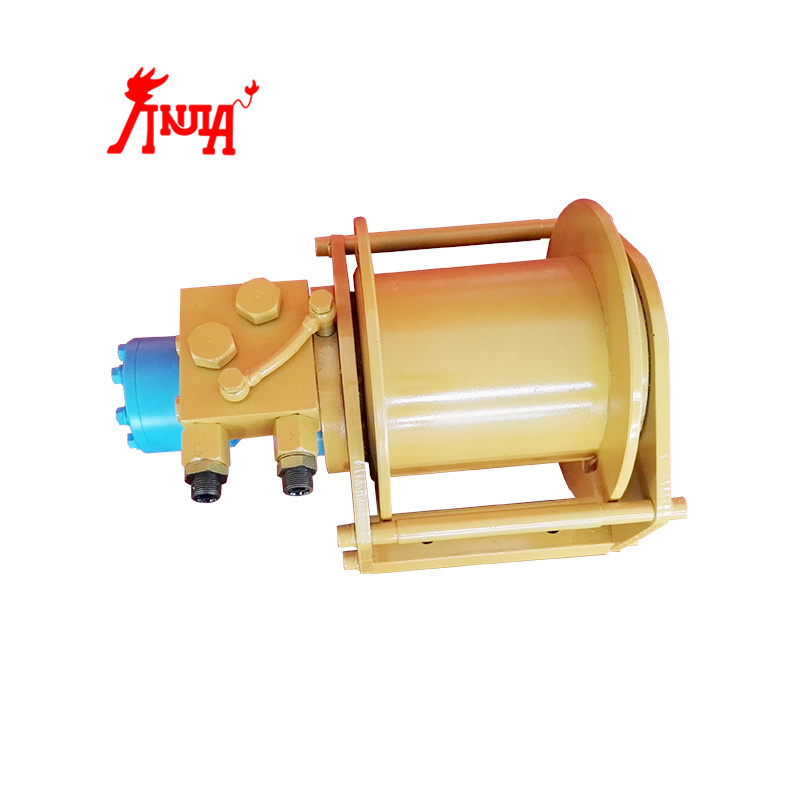

Jinjia brand 1 ton(2200 lbs) ~50 tons(110000 lbs) hydraulic winch is mainly composed of hydraulic motor (low speed or high speed motor), brake, gear box, drum, support shaft, frame, rope device (optional), etc.
Our whiches can be widely used in all kinds of lifting equipment, such as railway locomotive and truck crane, ship, oil field drilling, coal mine, port, small engineering machinery and so on.
| Jinjia Brand Hydraulic Winches Technical Specifications | ||||||||
| Product Items | 1T~3T | 5T | 6T | 8T | 10T | 12T | 16T~25T | |
| Torque(max) | Tnom(N.M) | 1912 | 2266 | 2421 | 3200 | 3560 | 5318 | 9000~12000 |
| Reduction ratio | i | 6 | 5 | 7 | 22.5 | 25 | 30 | 36~42 |
| Wire rope winding layer | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Wire rope specification | mm | φ11 | φ11 | φ11 | φ11 | φ11 | φ11 | φ11 |
| Output revolution (rated) | Nnom(r/min) | 44.5 | 66 | 49 | 53 | 47 | 63 | 60 |
| Brake opening pressure | Mpa | 0.8~1.5 | 0.8~1.5 | 0.8~1.5 | 0.8~1.5 | 0.8~1.5 | 0.8~1.5 | 1.5~2 |
| Hydraulic motor series | Optional part | OMR series | OMS series | OMS series | A2F55 series | A2F55 series | A2F55 series | A2F80~A2F107 |
| Lubricating oil specification | Grease | Grease | LCKD220 | LCKD220 | LCKD220 | LCKD220 | LCKD220 | |
| Amount added | Q(L) | 1 | 1.5 | 1.5 | 2 | 2 | 2.5 | 3 |
| Weight | Kg | 40~45 | 70 | 90 | 125 | 125 | 125 | 135-180 |
*Notice:We Provide Customized Services For Various Capacity Of Hydraulic Winches From 1 Ton (2200 lbs) To 50 Tons(110000 lbs)!*
JinJia hydraulic winches can be widely used in conveyor tensioning device and mechanical engineering from heavy machinery such as truck crane, crawler crane, aerial vehicles, forestry crane, and shipping ports such as port cranes, floating crane, dredger, cranes, davits, and can for large play equipment such as oil rigs and offshore oil drilling platform, piling machinery rotary drilling rig, drilling, core drilling, hydrostatic pressure pile machine and so on.
