1.All of the vegetable meat chopper/ cutter is made of food grade SUS304 (bowl, pot, rack, sheel etc.).
The structure is compact and beautiful,easy to clean, it is in accordance with food hygiene standards
2.The main parts are processed by CNC machining center to ensure accuracy.
3.The knives are made of 9CrSi,sharp and durable,smooth running in high speed.
4.Sweden imported SKF bearing,the imported dual-bearing spindle tandem installation,ensure knife shaft group has good concentricity.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
13.6kw
-
Weight:
-
680 KG, 680kg
-
Dimension(L*W*H):
-
1200*680*1415mm
-
Model:
-
ZB80
-
Name:
-
Industrial high speed chopper mixer
-
Capacity:
-
80L
-
Dimension:
-
1200*680*1415mm
-
Cutter shaft rotating speed:
-
3000/1500/80r/min
-
Motor power:
-
13.6KW
-
Pot rotating speed:
-
16r/min
-
Material:
-
SUS304 Stainless Steel
-
Application:
-
Meat Processing Industrial
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Green
-
Voltage:
-
3 phases electric power
-
Power:
-
13.6kw
-
Weight:
-
680 KG, 680kg
-
Dimension(L*W*H):
-
1200*680*1415mm
-
Model:
-
ZB80
-
Name:
-
Industrial high speed chopper mixer
-
Capacity:
-
80L
-
Dimension:
-
1200*680*1415mm
-
Cutter shaft rotating speed:
-
3000/1500/80r/min
-
Motor power:
-
13.6KW
-
Pot rotating speed:
-
16r/min
-
Material:
-
SUS304 Stainless Steel
-
Application:
-
Meat Processing Industrial
Product Description
|
Model
|
ZB80
|
|
Pot volume
|
80L
|
|
Cutter shaft rotating speed
|
3000/1500/80r/min
|
|
Motor power
|
13.6KW
|
|
Pot rotating speed
|
16r/min
|
|
Overall dimension
|
1200×680×1415mm
|
|
Weight
|
680kg
|
Features:
Introduce of meat bowl:

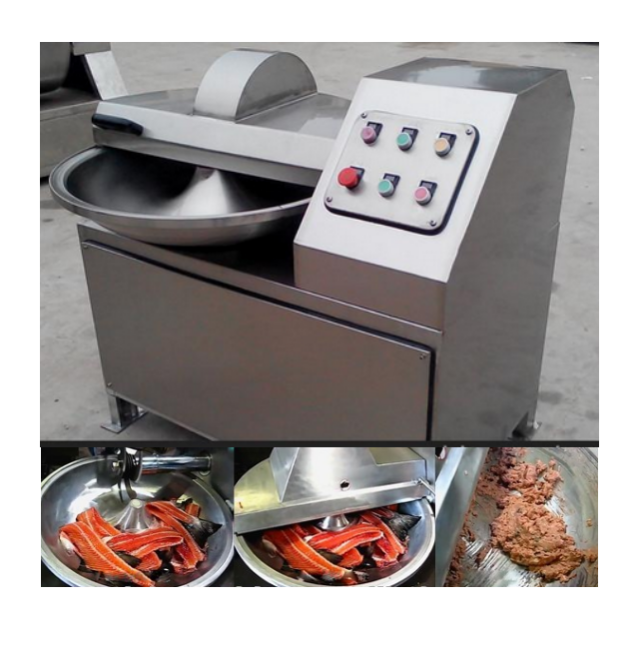

Meat and vegetable bowl chopper machine mainly used for all kinds of meat roots, stems, leafy vegetables (carrots, potatoes, tomatoes, celery, cabbage, etc.) for cutting or grinding broken to make the dumplings and steamed.
1.It use the principle of relative motion make vegetables and blade for relative motion, with the differential rotation then chop the vegetables or meat into a paste.
2.The cutting blade with a curved shape, compact design, simple operation, easy cleaning and maintenance..
3.This machine adopt a turbine rotation, low noise, long service life.
Detailed Images
It is widely used in hotelaboratories, college food laboratories, college canteens, and catering industry. Under the high-speed rotation, the machine will cut the meat and accessories into meat paste in a short time, and also stir the auxiliary materials into a uniform emulsion.
Parameters:
|
Model |
Capacity (kg) |
Power (KW) |
Number of knife |
Chopper speed (rpm) |
Chopper pot Speed (rpm) |
Dimension (mm) |
Weight (kg) |
|
ZB-20
|
15
|
4.1
|
3
|
1800-3600
|
9
|
780*600*850
|
600
|
|
ZB-40
|
30
|
5.1
|
3
|
1800-3600
|
7
|
1100*830*1080
|
1000
|
|
ZB-80
|
60
|
13.98
|
6
|
1800-3600
|
7/16
|
1820*1380*1260
|
1400
|
|
ZB-125
|
90
|
22.25
|
6
|
1800-3600
|
7/16
|
2020*1450*1300
|
1800
|
|
ZB-200
|
170
|
41.87
|
6
|
1800-3600
|
7.5/10/15
|
2300*3200*1800
|
2500
|
Packing&Shipping
Packing: Anti-rust oil, PE film and complete wooden case (standard export packing).
Company Introduction
Weifang Green Food Machinery Co., Ltd.
is a comprehensive enterprise that is integrated with the ability of food machinery development, manufacture, technical advice and service. The company has a group of senior engineers engaged in the development and manufacture of food machinery with more than ten years experience, excellent managerial personnel and staff. The Green people begin with the slight place, constantly absorb the latest technology at home and abroad and learn widely from others' strong points. It ensures the products achieve leading position in the industry with exquisite technology and first-rate technology.
FAQ
1. What is the voltage/phase for this machine?
220V 50Hz/single phase ,380V 50Hz/three phase , 110V 60Hz/single phase also can made as
the clients’ requirement.
2. What is the Mode of transportation?
LCL and FCL by ship ,By Express (DHL,TNT, Fedex etc) ,By air
3. How long can we get the goods?
we usually delivery in 15-20 working days after deposit.
4. How long is the guarantee?
we promise guarantee as one year for non-human damage factor.
5. How should I do if meet some trouble while using?
we can supply English manual book and also take a video for showing how to resolve the problems. or dispatch our worker to your factory.
