Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1840mm*1040mm*2.5mm
-
Panel Efficiency:
-
21.5%
-
Product name:
-

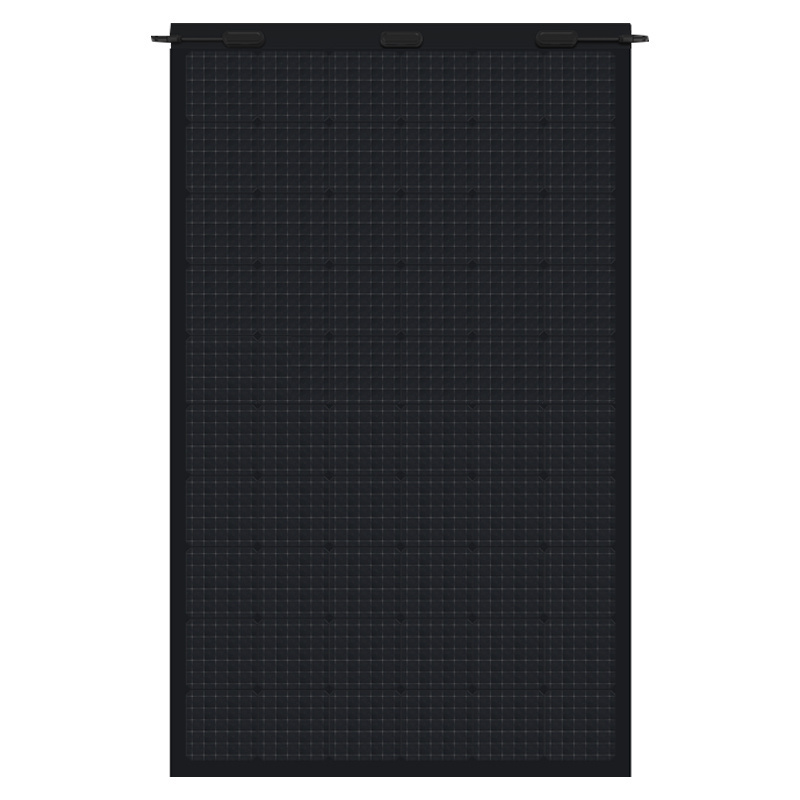

MWT Full Black Flexible Solar Panles
-
Installation Module Dimension:
-
1840mmx1040mmx2.5mm
-
Weight:
-
5.7 kg
-
Back material:
-
Back Sheet(black)
-
Cell:
-
126(21x6) / Mono / Half-cell
-
Encapsulant:
-
POE
-
Frame:
-
None
-
Junction box(protection degree):
-
IP68
-
Cable (length/cross-section area):
-
Customizable / 4mm2
-
Bending radius:
-
0.3m
Quick Details
-
Cell size:
-
126(21x6)
-
Brand Name:
-
Sunport
-
Model Number:
-
QHES(B)
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1840mm*1040mm*2.5mm
-
Panel Efficiency:
-
21.5%
-
Product name:
-
MWT Full Black Flexible Solar Panles
-
Installation Module Dimension:
-
1840mmx1040mmx2.5mm
-
Weight:
-
5.7 kg
-
Back material:
-
Back Sheet(black)
-
Cell:
-
126(21x6) / Mono / Half-cell
-
Encapsulant:
-
POE
-
Frame:
-
None
-
Junction box(protection degree):
-
IP68
-
Cable (length/cross-section area):
-
Customizable / 4mm2
-
Bending radius:
-
0.3m
Product Description
Specification
|
Electrical Characteristics at Standard Test Conditions(STC)
|
|
|
|
|
|
|
||||||
|
Spec/Model
|
Unit
|
SPP360QHES
|
SPP365QHES
|
SPP370QHES
|
SPP375QHES
|
SPP380QHES
|
||||||
|
Max-Power(Pm)
|
W
|
360
|
365
|
370
|
375
|
380
|
||||||
|
Power Tolerance
|
W
|
0~5%
|
|
|
|
|
||||||
|
Max-Power Voltage(Vm)
|
V
|
34.7
|
34.9
|
35.1
|
35.3
|
35.5
|
||||||
|
Max-Power Current(lm)
|
A
|
10.37
|
10.46
|
10.54
|
10.62
|
10.70
|
||||||
|
Open-Circuit Voltage(Voc)
|
V
|
42.4
|
42.6
|
42.8
|
43.0
|
43.2
|
||||||
|
Short-Circuit Current(lsc)
|
A
|
10.94
|
11.02
|
11.10
|
11.18
|
11.26
|
||||||
|
Module Efficiency(qm)
|
%
|
20.4
|
20.7
|
21.0
|
21.2
|
21.5
|
||||||
Module Size
Technology Comparison
TECHNOLOGY COMPARISON
Compared with conventional module, MWT modules reduce 3% shaded area with no busbars. MWT module technology replaces string ribbon by conductive back sheet, abandoning strain, micro-crack and results power degradation, greatly improving stability and reliability.
— Structural Feature —
MWT
Positive and negative electrodes are both on the rear side of solar cell
Conventional
Positive and negative electrodes are located on opposite sides of the cell
— Cell Structure —
MWT
Busbar-free design exhibits higher power output by decreasing shading area up to 3 %
Conventional
Conventional design covers more cell surface from the main busbars, therefore the power output is limited
— Module Encapsulation —
Replace conventional soldering with conductive foil and 2D encapsulation structure
Conventional Cells connected by string ribbons
