Quick Details
-
Brand Name:
-
DLSW
-
Dimension(L*W*H):
-
508x1500mm
-
Weight:
-
110
-
Product name:
-

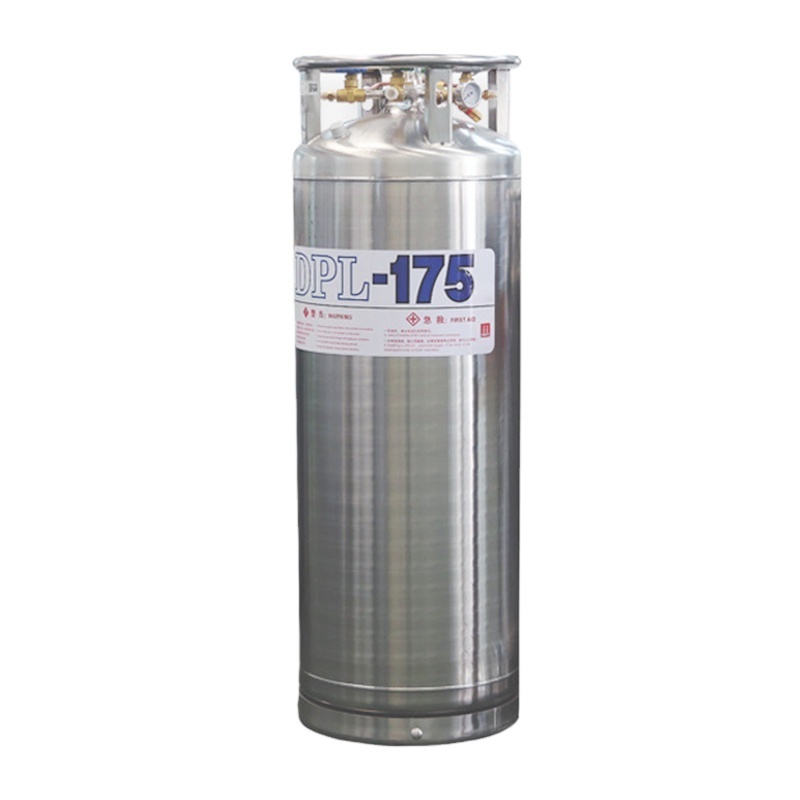

Liquid Nitrogen Dewar Tank
-
Nominal Volume:
-
175L
-
Effective Capacity(L):
-
157/166
-
Working pressure (MPa):
-
1.4
-
Safety valve takeoff pressure (MPa):
-
1.59
-
Bursting pressure of bursting disc (MPa):
-
2.6
-
Evaporation rate (liquid nitrogen):
-
≤ 2.4%
-
Liquid meter:
-
Float type sensor
-
Certification:
-
TPED Approved
-
Application Medium:
-
LOX,LNG,LAr,LCO2,LN2O,LN2
Quick Details
-
Capacity:
-
175 L
-
Max Working Pressure(MPa):
-
1.4 MPa
-
Place of Origin:
-
Gansu, China
-
Brand Name:
-
DLSW
-
Dimension(L*W*H):
-
508x1500mm
-
Weight:
-
110
-
Product name:
-
Liquid Nitrogen Dewar Tank
-
Nominal Volume:
-
175L
-
Effective Capacity(L):
-
157/166
-
Working pressure (MPa):
-
1.4
-
Safety valve takeoff pressure (MPa):
-
1.59
-
Bursting pressure of bursting disc (MPa):
-
2.6
-
Evaporation rate (liquid nitrogen):
-
≤ 2.4%
-
Liquid meter:
-
Float type sensor
-
Certification:
-
TPED Approved
-
Application Medium:
-
LOX,LNG,LAr,LCO2,LN2O,LN2
We have
30 years
of experience in one-stop solutions for gas storage and transportation, with many specifications and models. The prices of each model vary, and you can send us an inquiry for specific information！
Products Description
The DPL series containers are vacuum insulated, Stainless steel containers designed to store and transport cryogenic liquid oxygen, nitrogen or argon. Containers may be used for over the road transportation of cryogenic fluids, as well as on-site storage and supply in a wide range of applications.
As rugged, long holding time, self-contained gas supply systems, these cylinders are capable of providing continuous flow rates of up to 9.2 cu.m/h, with a delivery pressure of approximately 100psig (6.9bar/690Kpa)
As rugged, long holding time, self-contained gas supply systems, these cylinders are capable of providing continuous flow rates of up to 9.2 cu.m/h, with a delivery pressure of approximately 100psig (6.9bar/690Kpa)
|
Size of product
|
|
DPL450-175
|
DPL450-195
|
DPL450-210
|
|
|
External size (diameter X height) mm
|
|
508x1500
|
508x1620
|
508x1707
|
|
|
Working Pressure(MPa)
|
|
1.40
|
1.40
|
1.40
|
|
|
Safety valve starting pressure (MPa)
|
|
1.59
|
1.59
|
1.59
|
|
|
Bllasting pressure (MPa)
|
|
2.60
|
2.60
|
2.60
|
|
|
geometric volume (L)
|
|
175
|
195
|
210
|
|
|
available capacity (L)
|
|
157/166
|
175/185
|
189/197
|
|
|
Evaporation rate (liquid nitrogen)
|
|
≤2.4%
|
≤2.4%
|
≤2.4%
|
|
|
Empty bottle dead weight (Kg)
|
|
110
|
117
|
122
|
|
|
Filling quality
|
Oxygen (Kg)
|
172
|
191
|
205
|
|
|
|
Nitrogen (Kg)
|
121
|
135
|
145
|
|
|
|
Argon (Kg)
|
208
|
233
|
250
|
|
|
|
Natural gas (kg)
|
66
|
73
|
79
|
|
Features
S30408 Refined Polish
Each of our cylinder must strictly go through degreasing and refined polish.
Digital level gauge
we provide digital level gauge for optional liquid level monitor, which is measured by precision percentage
Anti-Shock Rubber Cushion
The thicken rubber cushion can greatly prevent the inner container from any Sudden shock and buffer
the impact.
25 layers of Vacuum insulated quiit
We use 25 layers of mutiple thermal insulated quilt to ensure the vacuum effectiveness
High Vacuum Performance
Each unit of tank will under vacuumized processing, we provide three-year warranty to each user.
irm Foundation Structure
Our DPL-450L&410L serials are all fabricated by bolts and nuts with strong frame foundation
