The vacuum calibration tank is advanced in design, it has the advantages of high output, good plasticizing,low energy-consumption and environmental-friendly.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
GOLDEN FAR EAST
-
Voltage:
-
380
-
Power:
-
110kw
-
Dimension(L*W*H):
-
16m*2.1m*2.1m
-
Weight:
-
5 kg
-
screw diameter:
-
75mm
-
length of screw:
-
2475mm
-
motor power:
-
110kw
-
extruder type:
-
single screw extruder
-
diameter of HDPE pipes:
-
75mm-250mm
-
usage of pipe:
-
drainage pipes
Quick Details
-
Pipe Material:
-
PE
-
Production Capacity:
-
180kg/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
GOLDEN FAR EAST
-
Voltage:
-
380
-
Power:
-
110kw
-
Dimension(L*W*H):
-
16m*2.1m*2.1m
-
Weight:
-
5 kg
-
screw diameter:
-
75mm
-
length of screw:
-
2475mm
-
motor power:
-
110kw
-
extruder type:
-
single screw extruder
-
diameter of HDPE pipes:
-
75mm-250mm
-
usage of pipe:
-
drainage pipes
Products Description

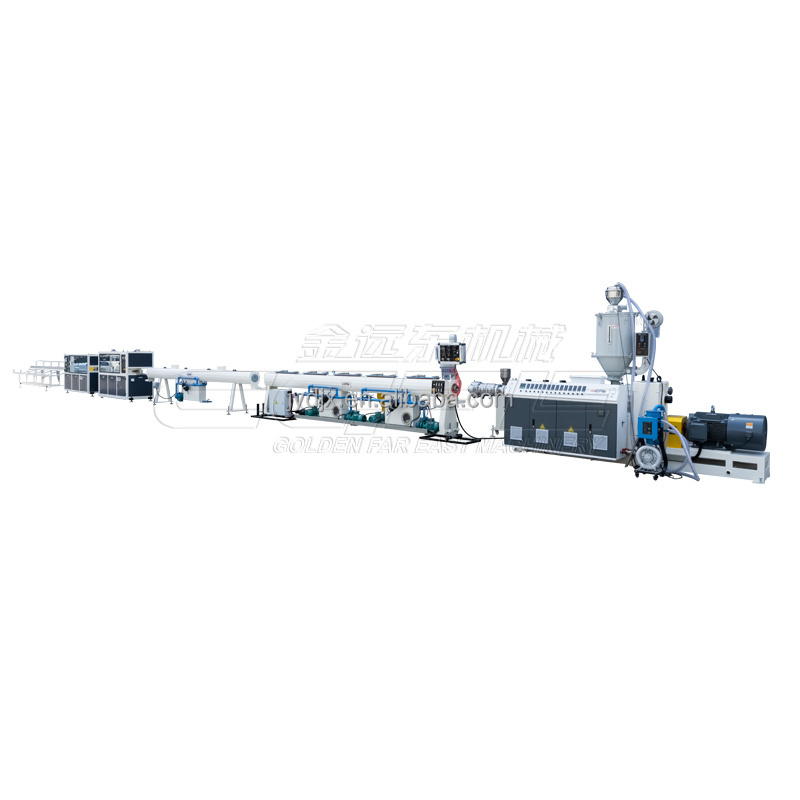

PE Pipe Production Line
Main Components
A. Single Screw Extruder
Single-screw extruder can produce many kinds of plastic products such as film, pipe, board, braid, belt and granules.
Extrusion Mould
Caliber
Mandril
The haul-off machine has different claw number, we have two claws. three claws and so on, it depends on the diameter of the pipes.
The cutting machine has different types, such as planetary cutter, knife-lifting cutter and no-dust cutter, etc. This unit is reliable and has high production efficiency.
This machine is used for stacking finished materials after cutting in fixed size, and
inspecting the packing and warehousing at the same time.
Processing Flow
raw material mixing → extruder → vacuum calibration tank → cooling tank→ haul-off machine → cutting machine → stacker
Applications
●water supply and
●gas transmission
●landscaping
Advantages
●simple operation and high output
●high quality standard
●h
ighly automatic and mechanized, energy saving and environmental-friendly
Technical Parameter
|
Machine Model
|
SJG45/33
|
SJG65/33
|
SJG75/33
|
SJG90/33
|
SJG120/33
|
SJG150/33
|
|
Screw Diameter（mm)
|
45
|
65
|
75
|
90
|
120
|
150
|
|
Main power(kw)
|
22/30
|
45/75/90
|
90/110
|
160/185
|
280/315
|
355/400
|
|
Max output(kg/h
|
100/120
|
150/250/300
|
350/450
|
550/700
|
950/1100
|
1500
|
|
Ratio L/D(mm)
|
33:1
|
33:1
|
33:1
|
33:1
|
33:1
|
33:1
|
Pre-sales and after sales service
24/7 Online service
1. 24 hours online reply
2. Factory design and machine layout design for free
3. Product formula provided for free
3. Product formula provided for free
Machine production inspection
1. Supervise the machine quality all the time.
2. Inform any new progress of the machines.
3. Test machines by official QC and take machine pictures and videos.
3. Test machines by official QC and take machine pictures and videos.
Machine installation guidance
1. Provide machine installation guidance
2. Provide professional engineer field installation.
3. Provide long-term technical guide and service.
3. Provide long-term technical guide and service.
