Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1300*2500*200mm
-
Warranty:
-
1 Year
-
Certification:
-
CE TUV SGS BV ISO9001
-
Power:
-
3.4KW without spindle
-
Weight:
-
1750KGS
-
Cnc Router Name:
-
Wood Tongue And Groove Machine Gmelina Wood Router
-
Cnc Router Control System:
-
Mach3 Control System
-
Spindle:
-
Water Cooling Spindle
-
Motor:
-
Stepping Motor
-
Transmission:
-
Taiwan TBI Ball Screw
-
Spindle power:
-
2.2kw 3.0 Kw 4.5kw 6.0kw
-
Software:
-
Ucancam
-
Application:
-
Wood Working
-
Table:
-
Vacuum + T-slot
-
Frame:
-
Steel Tube Structure
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OMNI
-
Model Number:
-
1325
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1300*2500*200mm
-
Warranty:
-
1 Year
-
Certification:
-
CE TUV SGS BV ISO9001
-
Power:
-
3.4KW without spindle
-
Weight:
-
1750KGS
-
Cnc Router Name:
-
Wood Tongue And Groove Machine Gmelina Wood Router
-
Cnc Router Control System:
-
Mach3 Control System
-
Spindle:
-
Water Cooling Spindle
-
Motor:
-
Stepping Motor
-
Transmission:
-
Taiwan TBI Ball Screw
-
Spindle power:
-
2.2kw 3.0 Kw 4.5kw 6.0kw
-
Software:
-
Ucancam
-
Application:
-
Wood Working
-
Table:
-
Vacuum + T-slot
-
Frame:
-
Steel Tube Structure
Recommended product list:
|
|
|
|
machine name :omni carousel type atc cnc router. features: this machine with CATC 8 tool maganizes,can change the tools by itself. functions: it i main for the furniture and door making. |
machine name:omni cnc router with saw. features :the saw can cut the wood fsater and good effect. functions: it i main work on the furniture. |
machine name:omni 4axis atc cnc router. features :the machine the spindle can rotate 0-180 degree. functions: it i main work on the curved surfure. |

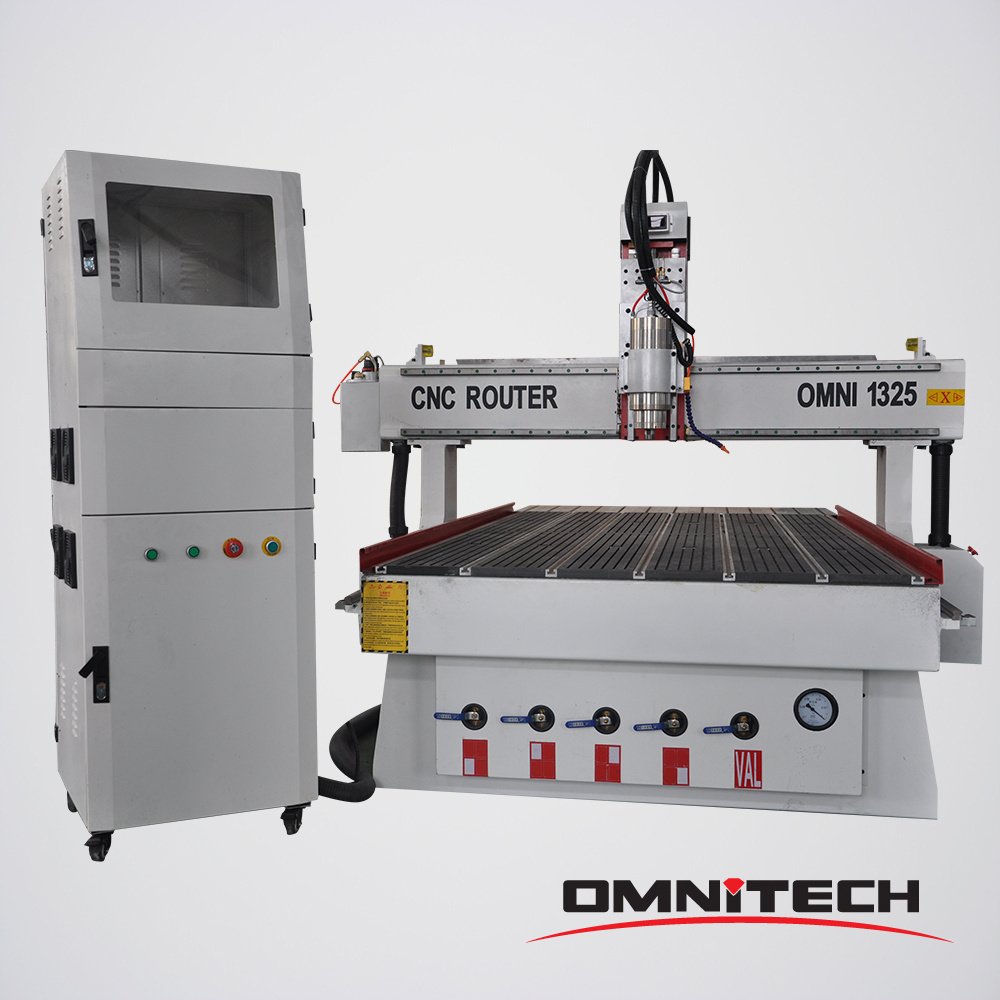

Wood Tongue And Groove Machine Gmelina Wood Router
|
X,Y,Z working area |
1300*2500*200mm(4*8feets) |
|
Drive and motor |
YAKO drive and stepper motor |
|
Control system |
Mach3 control system |
|
Spindle |
Watercooling spindle,0-24000RPM |
|
Inverter |
Taiwan Delta frequency inverter |
|
Machine table |
Bakelite table combined Aluminum T -slot extrusion, vacuum table |
|
Frame |
Big thickened Steel Square Tubes, thickness up to 8mm |
|
X, Y structure |
Helical Rack and pinion drive, Hiwin square rail linear bearing 20mm |
|
Z axis structure |
Taiwan TBI ballscrew and Hiwin square linear rail 20mm |
|
Package |
3200*2100*1900MM(12.77CBM) |
|
Gross weight |
1750KGS |
1 Watercooling Spindle:wih good cutting and engraving effect.
2 Stepper Motor and Yako deiver
3 Control System: DSP control system(control card)
4 Bakelate tabble with t slot
