Quick Details
-
Core Components:
-
teaching pendant, 3 axis dispensing robot, Dispensing controller, Machine gantry and body, glue dispensing valve
-
Product name:
-
hot melt Automatic glue dispensing machine robots
-
After-sales Service Provided:
-
1 year
-
Certification:
-
Overseas third-party support available
-
Working area:
-
380*380*100mm
-
motor system:
-
precise micro step motor
-
Movement patterns:
-
3 axis spot to spot, continue line, arc
-
Operating system:
-
LCD pannel/ Teach Pendant
-
Resolution:
-
0.01
-
Reaptabily:
-
±0.025mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Second Intelligent
-
Weight (KG):
-
55
-
Core Components:
-
teaching pendant, 3 axis dispensing robot, Dispensing controller, Machine gantry and body, glue dispensing valve
-
Product name:
-
hot melt Automatic glue dispensing machine robots
-
After-sales Service Provided:
-
1 year
-
Certification:
-
Overseas third-party support available
-
Working area:
-
380*380*100mm
-
motor system:
-
precise micro step motor
-
Movement patterns:
-
3 axis spot to spot, continue line, arc
-
Operating system:
-
LCD pannel/ Teach Pendant
-
Resolution:
-
0.01
-
Reaptabily:
-
±0.025mm
Product Description

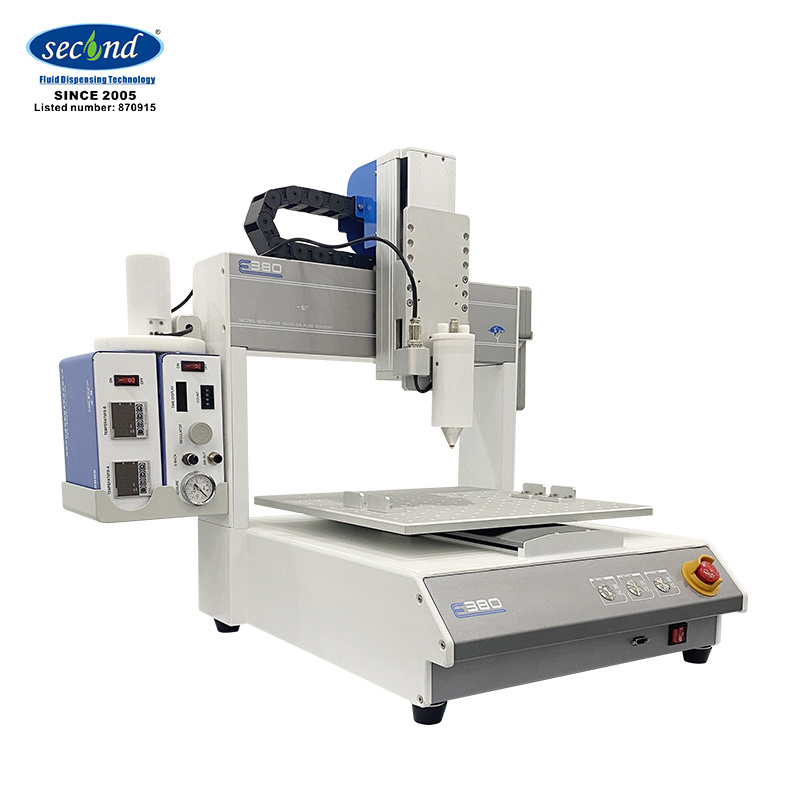

SEC-E380 is durable desktop design automatic glue dispensing machine, one machine for multi-purpose, can equips with different valves and feeding system
.
Features:
1.Durable fully automatic 3 axis dispensing robot.
2.Suit for UV glue, solder paste, hot melt red glue...etc.
3.One-piece die-casting aluminum boday.
4.User friendly teaching pendant.
5. Can be equipped with different glue supply systems
2.Suit for UV glue, solder paste, hot melt red glue...etc.
3.One-piece die-casting aluminum boday.
4.User friendly teaching pendant.
5. Can be equipped with different glue supply systems
Details
Preheating system
Hot melt adhesive is heated before use to improve work efficiency
Hot-melt dispensing valve
Suitable for 5cc, 30cc, 50cc syringe packaging hot melt glue, convenient and easy to replace.
One-piece die-casting aluminum body
Lighter in weight, saves the use of screws, and the structure is more stable and durable.
Teaching pendant
The operation and programming are convenient and simple, up to 999 programs can be stored.
Dispensing controller
Precisely control the size of the air pressure to ensure the stability of the amount of glue.
Precision needles
Precision dispensing needles, stainless steel needles, flexible needles, large-flow oblique needles, etc.
Applications
Specification
|
Model
|
SEC-E380
|
SEC-E480
|
SEC-E580
|
||
|
Working range
|
380(X)*380(Y)*100(Z）mm
|
480(X)*480(Y)*100(Z）mm
|
580(X)*580(Y)*100(Z）mm
|
||
|
Max payload
|
7kg(Y)/3kg(Z)
|
|
|
||
|
Max travel speed
|
400mm/sec(XY)/200mm/sec(Z)
|
|
|
||
|
Driven mode
|
Stepper motor, belt, lead screw
|
|
|
||
|
XYZ position accuracy
|
±0.025mm
|
|
|
||
|
Resolution
|
0.01
|
|
|
||
|
Memory storage
|
999 program setup (each program store up to 65535 spots)
|
|
|
||
|
Operating method
|
LCD, User friendly teach pendant
|
|
|
||
|
Motor
|
Precision stepper motor
|
|
|
||
|
Monement patterns
|
3 axis spot to spot, continue line, arc
|
|
|
||
|
I/O
|
1 input, 4 output(support expansion)
|
|
|
||
|
Power supply
|
AC 22V 50/60 Hz 0.5 KW
|
|
|
||
|
Working environment
|
Temperature 0~40℃，Humidity 20%~90%
|
|
|
||
|
Weight
|
Approx 48kg
|
Approx 60kg
|
Approx 75kg
|
||
|
Machine demension
|
520*583*645mm
|
620*683*645mm
|
720*783*645mm
|
||
