Quick Details
-
Power:
-
battery
-
Name:
-

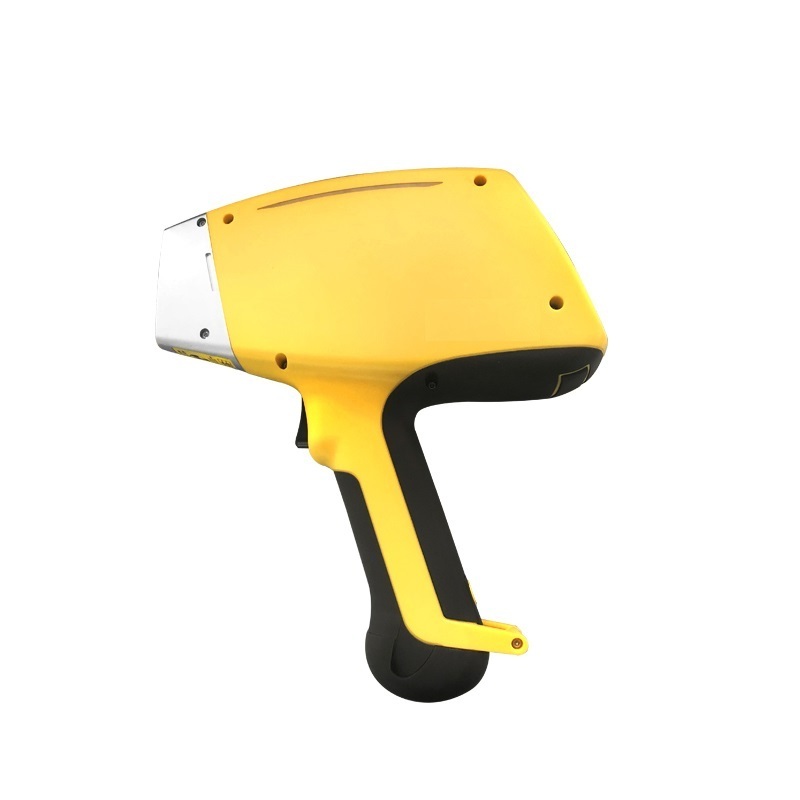

handheld XRF analyzer gold tester
-
Heat dissipation:
-
T-slot radiator
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Color:
-
4.3" touch screen
-
Power:
-
battery
-
Name:
-
handheld XRF analyzer gold tester
-
Heat dissipation:
-
T-slot radiator
Product Description
Performance Features
1. Small, light and easy to carry.
2. High-speed processing chip, advanced algorithm and high-responsive software, resulting in even faster analysis.
3. High-performance X-ray Tube, Ultra-high Resolution Detector combined with Digital Multi-channel Processing Technology, yielding super-high detection resolution.
4. Indicator lights flash on both sides for safety purposes during measurement, i.e., the built-in double beam technology will automatically sense whether there is a sample at the measurement window.
5. Industrial resistive touch screen, superior to capacitor screen in back-light and clearer against sunlight in the field. At
the same time, people don't need to take off gloves when they are opreating machine in some particular environment.
6. TrueX utilizes anti-slip, abrasion resistance and streamlined design, which is light and easy to carry. Italso integrates the new high speed digital multi-channel technology, the new library grade base identification system and the super-FP algorithm.
These features allow it to measure elements faster, with higher accuracy and greater repeatability.
7. Intelligent battery management exerts a real-time monitoring of the residual capacity of battery and backup battery through MSBUS bus.
8. Automatic switch to standby mode when not used and recovery after the machine is picked up, which saves power and extends working time; moreover, TrueX has a gravity sensing system which shuts down instrument automatically when it accidentally falls down, another safety consideration; TrueX will also give out alarm when ambient temperature or humidity exceeds the scope of application.
9. TrueX adjusts air pressure factor automatically based on altitude it has detected. This function increases excitation effect of light elements by 40% and that of rare earth elements by 30%.
10. On TrueX, users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin of products and batch number).
11. TrueX is built with double beam technology which can automatically sense whether there is a sample at the measurement window.
This is also a safety and protection feature. The brightness of the display of TrueX is automatically regulated according to environment brightness.
12. TrueX can be configured and maintained in a remote way via Internet.
13. TrueX's new algorithm optimizes the spectral resolution, so lower detection limits can be achieved, which are comparable with even large-scale lab instruments.
14. TrueX Ultra-short optical™ path design can significantly improve light element excitation effects,
without the fall/fill condition.
15. TrueX has a built-in environmental sensing system covering conditions such as temperature, dust humidity and others.
2. High-speed processing chip, advanced algorithm and high-responsive software, resulting in even faster analysis.
3. High-performance X-ray Tube, Ultra-high Resolution Detector combined with Digital Multi-channel Processing Technology, yielding super-high detection resolution.
4. Indicator lights flash on both sides for safety purposes during measurement, i.e., the built-in double beam technology will automatically sense whether there is a sample at the measurement window.
5. Industrial resistive touch screen, superior to capacitor screen in back-light and clearer against sunlight in the field. At
the same time, people don't need to take off gloves when they are opreating machine in some particular environment.
6. TrueX utilizes anti-slip, abrasion resistance and streamlined design, which is light and easy to carry. Italso integrates the new high speed digital multi-channel technology, the new library grade base identification system and the super-FP algorithm.
These features allow it to measure elements faster, with higher accuracy and greater repeatability.
7. Intelligent battery management exerts a real-time monitoring of the residual capacity of battery and backup battery through MSBUS bus.
8. Automatic switch to standby mode when not used and recovery after the machine is picked up, which saves power and extends working time; moreover, TrueX has a gravity sensing system which shuts down instrument automatically when it accidentally falls down, another safety consideration; TrueX will also give out alarm when ambient temperature or humidity exceeds the scope of application.
9. TrueX adjusts air pressure factor automatically based on altitude it has detected. This function increases excitation effect of light elements by 40% and that of rare earth elements by 30%.
10. On TrueX, users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin of products and batch number).
11. TrueX is built with double beam technology which can automatically sense whether there is a sample at the measurement window.
This is also a safety and protection feature. The brightness of the display of TrueX is automatically regulated according to environment brightness.
12. TrueX can be configured and maintained in a remote way via Internet.
13. TrueX's new algorithm optimizes the spectral resolution, so lower detection limits can be achieved, which are comparable with even large-scale lab instruments.
14. TrueX Ultra-short optical™ path design can significantly improve light element excitation effects,
without the fall/fill condition.
15. TrueX has a built-in environmental sensing system covering conditions such as temperature, dust humidity and others.
The ARM architecture Cortex-A8 1 GHZ
System Processor:The Android 4.2 operating system/80MHZ ADC digitalpulse processor/4096 MCA channel , 32GB memory
Display: Industrial resistive touch screen with screen size of 4.3"
Data storage: Built-in 32gb memory, 300,000 spectral data and spectrumcan be stored
Operating Temperature: -20℃~+50℃
Operating Humidity: ≤90%
Limit of Detection: PPM
CPU: 1GB
RAM: 1GB
Battery: lithium battery, which can be loaded with a maximum capacity of our 6800Ah can operate continuously for 8 hours; Equipped
with high voltage (110V-220V) adapter, can work under current alternative
Sensor resolution ＜129eV
Excitation source: 40KV / 100mA-Ag window miniature tube anode X of light and high voltage source
Collimator and filter: 1.5mm and 3mm
Display: touchscreen TFT - LCD, resolution of 640 * 480.
Protection against water, dust and shock
Test window: 12mm.
Security: standalone password manager mode.
data transmission: digital multi-channel technology, the transmission of data SPI, a quick scan, count rate, waterproof miniature USB, which can be connected to the desktop computer.
System Processor:The Android 4.2 operating system/80MHZ ADC digitalpulse processor/4096 MCA channel , 32GB memory
Display: Industrial resistive touch screen with screen size of 4.3"
Data storage: Built-in 32gb memory, 300,000 spectral data and spectrumcan be stored
Operating Temperature: -20℃~+50℃
Operating Humidity: ≤90%
Limit of Detection: PPM
CPU: 1GB
RAM: 1GB
Battery: lithium battery, which can be loaded with a maximum capacity of our 6800Ah can operate continuously for 8 hours; Equipped
with high voltage (110V-220V) adapter, can work under current alternative
Sensor resolution ＜129eV
Excitation source: 40KV / 100mA-Ag window miniature tube anode X of light and high voltage source
Collimator and filter: 1.5mm and 3mm
Display: touchscreen TFT - LCD, resolution of 640 * 480.
Protection against water, dust and shock
Test window: 12mm.
Security: standalone password manager mode.
data transmission: digital multi-channel technology, the transmission of data SPI, a quick scan, count rate, waterproof miniature USB, which can be connected to the desktop computer.
|
Weight
|
1.6Kg（with battery）.
|
|
Dimensions
|
254 x 79 x 280 mm（L x W x H）.
|
|
Excitation source
|
50KV/200μA maximum pipe pressure pipe flow can be adjusted freely,Agtarget (standard),Au,W,Rh target(optional).
|
|
Detector
|
SDD detector.
|
|
Range of detection
|
All elements between Mg and U.
|
|
Display system
|
Industrial resistive touch screen with screen size of 4.3".
Proprietary operating system software and sound waves. Multiple languages including English and Chinese. And it automatically adjusts display brightness according to the environment brightness. |
|
Data processing
|
32GB memory
USB, bluetooth, WIFI, or liked to the Internet; instrument can be configured and repaired remotely. Data can be exported via EXCEL or PDF. Users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin and batch number). |
|
Heat dissipation
|
Equipped with a dedicated T-shaped radiator to dissipate the heat；no need to wait for cooling of detector time again.
|
|
Safety
|
Built-in double beam technology can automatically sense whether
there is a sample at the measurement window. This is also a safety and protection feature. Waterproof, dust-proof and shockproof suitcase |
|
Power supply system
|
Intelligent battery management through MSBUS bus, real-time
monitoring of the residual capacity of battery and backup battery. The battery complies with air transport regulations of dangerous goods. A single battery can last 8 hours. |
