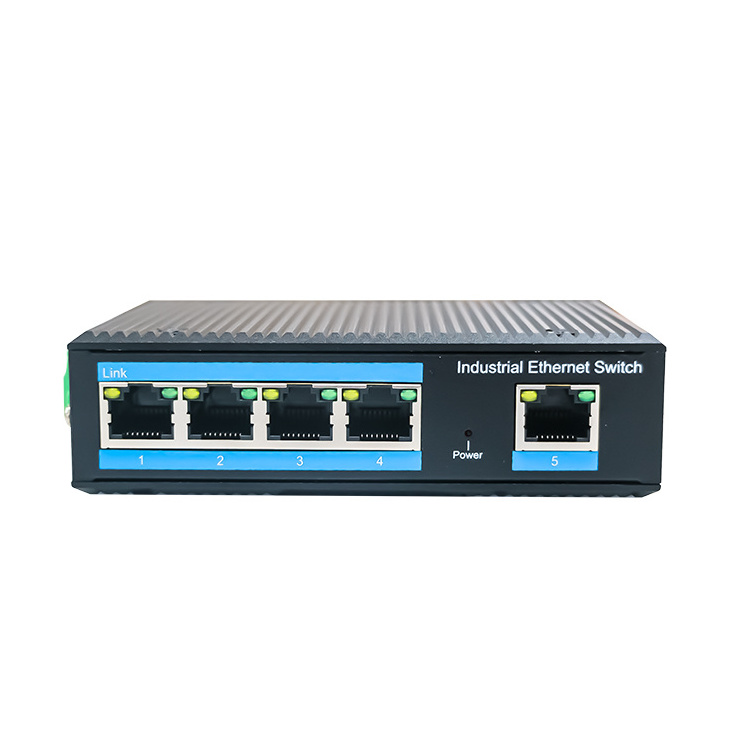

Quick Details
-
Brand Name:
-
Jointoptic
-
Model Number:
-
IUS1005-5GE, IUS1005-5GE
-
Place of Origin:
-
Tianjin, China
-
Type:
-
Industrial Ethernet Switch
-
Optical Communication Port:
-
SC/FC/SFP Optional
-
Data Rate:
-
1000Mbps
-
Installation method:
-
Din Rail
-
Electrical Signal Port:
-
5*10/100/1000Base-TX
-
PoE Port:
-
4
-
Dimensions (W x D x H):
-
86mm x 118mm x 33mm
-
Power Interface:
-
Phoenix Terminal, Dual Power Supply Redundancy
-
Imput Voltage:
-
DC12-52V,DC48-57V(POE)
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex
-
Switch Capacity:
-
18.2G
-
Brand Name:
-
Jointoptic
-
Model Number:
-
IUS1005-5GE, IUS1005-5GE
-
Place of Origin:
-
Tianjin, China
-
Type:
-
Industrial Ethernet Switch
-
Optical Communication Port:
-
SC/FC/SFP Optional
-
Data Rate:
-
1000Mbps
-
Installation method:
-
Din Rail
-
Electrical Signal Port:
-
5*10/100/1000Base-TX
-
PoE Port:
-
4
-
Dimensions (W x D x H):
-
86mm x 118mm x 33mm
-
Power Interface:
-
Phoenix Terminal, Dual Power Supply Redundancy
-
Imput Voltage:
-
DC12-52V,DC48-57V(POE)
Product Overview
Main Features:
⚫ Fanless metal case for heat dissipation, high temperature resistance +80°C, low temperature -40°C
⚫ Redundant power supply design, power supply anti-reverse protection
⚫ Working wide voltage: 12~52VDC 48~57VDC(POE)
⚫ 8KV-15KV anti-static protection, 6KV surge protection
⚫ IP40 degree of protection against dust, chips and dirt
⚫ DIN rail installation
⚫ Full-duplex or half-duplex mode, with auto-negotiation capability
⚫
Linear data forwarding ensures real-time performance
⚫ Optical port supports SC/FC/SFP multiple interface forms
⚫ Strong compatibility, compatible with various brands in the market
|
PARAMETER LIST
|
|
|
||
|
PORT
|
Electrical Signal Port
|
5*10/100/1000Base-TX
|
||
|
|
Product name
|
Network switch
|
||
|
|
Optical Signal Port
|
type SC/FC/SFP optional
|
||
|
接口
|
PoE port
|
4(optional)
|
||
|
|
POE protocol
|
802.3af, 802.3at
|
||
|
|
Power interface
|
Phoenix terminal, Dual power supply redundancy
|
||
|
|
LED indicator
|
PWR, electrical port, optical port (Link/ACT)
|
||
|
Electrical Characteristics
|
Input voltage
|
DC12-52V, DC48-57V (POE);
|
||
|
|
Machine power consumption
|
< 3W
|
||
|
|
Reverse polarity protection
|
support
|
||
|
|
Overvoltage protection
|
support
|
||
|
Characteristics
|
Switch capacity
|
18.2G
|
||
|
|
Packet forwarding rate
|
7.44Mpps
|
||
|
|
MAC address table
|
4K
|
||
|
|
Forwarding delay
|
< 5us
|
||
|
|
Polarity Reversal (MDX/MIDX)
|
Supported
|
||
|
|
Package cache
|
2M
|
||
|
|
Watchdog function
|
support
|
||
|
|
Port trunking
|
support
|
||
|
|
Working temperature
|
-40℃~+80℃
|
||
|
|
Storage/Transportation Temperature
|
-40℃~+80℃
|
||
|
|
Relative humidity
|
5%~95%
|
||
|
|
Heat dissipation method
|
Fanless design, natural heat dissipation
|
||
|
|
MTBF
|
30 years
|
||
|
Protection
|
IP rating
|
IP40
|
||
|
|
Surge (shock) immunity
|
IEC 61000-4-5 Level 3
|
||
|
|
Electrical fast burst immunity
|
IEC 61000-4-4 Level 3
|
||
|
|
Electrostatic Discharge Immunity
|
IEC 61000-4-2 Level 4
|
||
|
|
Free fall
|
0.5m
|
||
|
|
Dimensions
|
86mm x 118mm x 33mm
|
||
|
|
Installation method
|
Rail installation
|
||
|
|
Weight about
|
0.36KG
|
||
|
Certification
|
Product certification
|
CE/FCC/ROHS
|
||
