- Product Details
- {{item.text}}
Quick Details
-
Color:
-
Grey, Blue, other color can be customized
-
Length/Height/Wide (mm):
-
42.5/41/6.2
-
Connection method:
-
Screw connection
-
Material:
-
Nylon PA66
-
Rated Voltage/Current:
-
800V/32A
-
Cross section, solid/soft Cable:
-
0.2-4 sqmm / 0.2-2.5 sqmm
-
Mounting Type:
-
NS 35/7.5
-
Item:
-

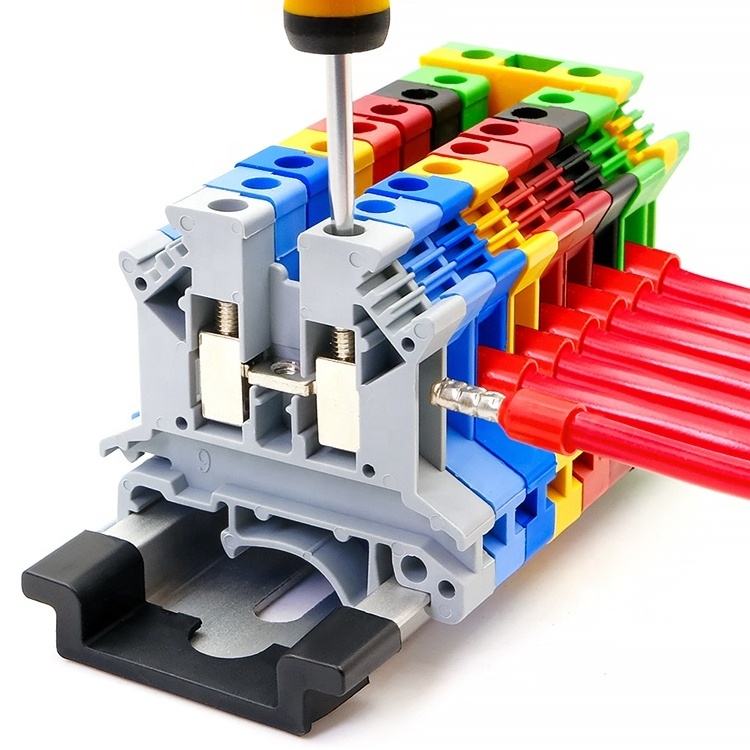

UK2.5B Din Rail Terminal Block
-
Certificate:
-
CE/RoHS/CQC/ISO 9001
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
W.DE
-
Model Number:
-
UK 2.5B, UK 2.5B
-
Color:
-
Grey, Blue, other color can be customized
-
Length/Height/Wide (mm):
-
42.5/41/6.2
-
Connection method:
-
Screw connection
-
Material:
-
Nylon PA66
-
Rated Voltage/Current:
-
800V/32A
-
Cross section, solid/soft Cable:
-
0.2-4 sqmm / 0.2-2.5 sqmm
-
Mounting Type:
-
NS 35/7.5
-
Item:
-
UK2.5B Din Rail Terminal Block
-
Certificate:
-
CE/RoHS/CQC/ISO 9001
|
Model N o. |
UK 2 .5 B |
|
Length/Height/Wide (mm) |
42.5/4 1 / 6. 2 |
|
Type |
UK2.5B Din Rail Terminal Block |
|
Material |
Flame resistant Nylon PA66 , Nickel plated brass conductor |
|
Rated Voltage /Current |
800V /32A |
|
Application |
Screw connection |
|
C ross section , solid/soft Cable |
0. 2 - 4 mm² / 0. 2 - 2 .5 mm² |
|
Conductor Size |
24-12 AWG, 24- 14 AWG |
|
Mounting Type |
DIN Rail NS 35 |
|
Standard |
IEC 60947-7-1 |
|
LOGO |
LOGO can be customized |
|
Color |
Grey, Blue, other color can be customized |
|
Certification |
CE/Ro HS / CQC/ISO 9001 |
|
Terminal Block Accessories |
End cover: D-UK 2.5 Fixed bridge:FBI 10-6 Insertion bridge : EB 10-6 |
