Quick Details
-
Brand Name:
-
SunSoont
-
Model Number:
-
SST-LP4EH2EH
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
4* 100M POE Port And 2* Uplink Ethernet Smart Switch
-
PoE Ports:
-
4*10/100Mbps POE Ports
-
Uplink Ports:
-
2*10/100Mbps RJ45
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
-
Applications:
-
CCTV Security System, IP Phone, Wireless AP
-
Power Supply:
-
External power supply
-
PoE Port Power:
-
DC48V~DC56V
-
Dimensions (W x D x H):
-
202mm*140mm*45mm
-
Operating Temperature:
-
-20℃ ~ 50℃
-
Warranty:
-
2 years
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1.2Gbps
-
Brand Name:
-
SunSoont
-
Model Number:
-
SST-LP4EH2EH
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
4* 100M POE Port And 2* Uplink Ethernet Smart Switch
-
PoE Ports:
-
4*10/100Mbps POE Ports
-
Uplink Ports:
-
2*10/100Mbps RJ45
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
-
Applications:
-
CCTV Security System, IP Phone, Wireless AP
-
Power Supply:
-
External power supply
-
PoE Port Power:
-
DC48V~DC56V
-
Dimensions (W x D x H):
-
202mm*140mm*45mm
-
Operating Temperature:
-
-20℃ ~ 50℃
-
Warranty:
-
2 years
Product Description

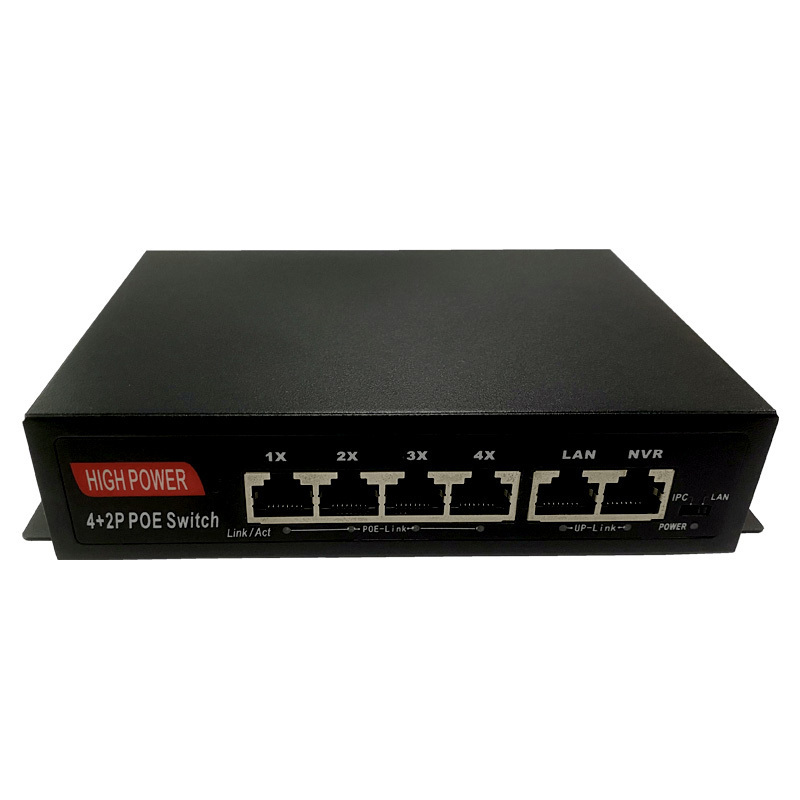

75w POE Switch 4 POE Port IEEE 802.3 AF/AT Ethernet switch Suitable For IP Camera 10/100M
The PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100Mbps or 10/100/1000Mbps link and supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power to 802.3af end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.
The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems,and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.
The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems,and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.
Feature
◆4
* 10/100M PoE Ports+2*10/100Mbps RJ45 Uplink port;
◆ Support IEEE802.3、IEEE802.3u，IEEE802.3x，IEEE802.3af/at;
◆ Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w);
◆ Ethernet Uplink port supports 10/100/1000M adaptive;
◆ Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard;
◆ Support port auto flip (Auto MDI/MDIX);
◆ All ports support wire-speed switching;
◆ Automatically supplied to adaptive devices;
◆ Panel indicator monitoring status and help failure analysis;
◆ Support VLAN Mode and Extend 250 meters Mode;
◆ Support 1U Rack Mount.
◆ Support IEEE802.3、IEEE802.3u，IEEE802.3x，IEEE802.3af/at;
◆ Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w);
◆ Ethernet Uplink port supports 10/100/1000M adaptive;
◆ Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard;
◆ Support port auto flip (Auto MDI/MDIX);
◆ All ports support wire-speed switching;
◆ Automatically supplied to adaptive devices;
◆ Panel indicator monitoring status and help failure analysis;
◆ Support VLAN Mode and Extend 250 meters Mode;
◆ Support 1U Rack Mount.
Specification
|
Technical parameter list
|
|
|
|
Product Name
|
4 ports 10/100Mbps POE Switch(4+2)
|
|
|
Product Model
|
SST-LP4EH2EH
|
|
|
DATA PIN
|
1/2+,3/6- 4/5+7/8-
|
|
|
Power Supply Type
|
Build In, 1/2+,3/6-
|
|
|
PoE Output Power
|
15.4W/30W
|
|
|
Connector
|
4*100Mbps POE port, 2*100mpbs RJ45 Uplink
|
|
|
Network Medium
|
Cat5 (UTP) or more
|
|
|
Technology
|
|
|
|
Network Standards
|
IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet |
|
|
PoE power
|
15.4W per port(IEEE802.3af). Internal power supply
Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5 (+) and 7/8(-) |
|
|
Processing types
|
Store-and-forward
Half-duplex back pressure and IEEE 802.3x full-duplex flow control |
|
|
Address database Table Size
|
2K MAC address
|
|
|
Buffer memory
|
48Kb embedded memory per unit
|
|
|
Backboard Bandwidth
|
1.2Gbps Full duplex
|
|
|
Network Latency
|
Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission
|
|
|
Power
|
|
|
|
Input
|
DC48-56V
|
|
|
PoE power consumption
|
15.4W per port(IEEE802.af/at)
|
|
|
Overload current protection
|
Present
|
|
|
Mechanical
|
|
|
|
Casing
|
Metal
|
|
|
Installation
|
DESKTOP/Rack mounting with Bracket
|
|
|
Interface
|
|
|
|
LED Indicators
|
System: Power, PoE Maximum power
Per port: Link, Activity, Speed, PoE active, PoE error |
|
|
Environment specification
|
|
|
|
Operating temperature
|
-10-55℃(32-104℉)
|
|
|
Storage temperature
|
-40-70℃(14-158℉)
|
|
|
Operating humidity
|
90% maximum relative humidity, non-condensing
|
|
|
Storage humidity
|
95% maximum relative humidity, non-condensing
|
|
|
Regulatory Approval
|
|
|
|
ISO
|
Manufactured in ISO9001 facility
|
|
|
Safety
|
CE/CCC
|
|
|
Warranty
|
5 years
|
|
|
Dimensions
|
202*140*45mm (L*W*H)
|
|
|
Weight
|
N.W:0.88Kg G.W:1.0Kg
|
|
Details Images
