Quick Details
-
Brand Name:
-
VACORDA
-
Model Number:
-
HKD-LVD
-
Matrial:
-
SS
-
Application:
-
Liquid / Gas
-
Connection:
-
Welding/Flange
-
Pressure:
-
Max PN420
-
Temperature:
-
700℃(customization)
-
Transmitter power supply:
-
24VDC
-
Output signal:
-
4-20mA
-
Diameter:
-
DN15~DN1200 or customization
-
Protection Class:
-
IP65 (common Type)
-
Explosion proof:
-
Exd (if have transmitter)
Quick Details
-
Type:
-
Differential Pressure Flow Meter, wedge-shape Flow Meter
-
Warranty:
-
12 months
-
Place of Origin:
-
Sichuan
-
Brand Name:
-
VACORDA
-
Model Number:
-
HKD-LVD
-
Matrial:
-
SS
-
Application:
-
Liquid / Gas
-
Connection:
-
Welding/Flange
-
Pressure:
-
Max PN420
-
Temperature:
-
700℃(customization)
-
Transmitter power supply:
-
24VDC
-
Output signal:
-
4-20mA
-
Diameter:
-
DN15~DN1200 or customization
-
Protection Class:
-
IP65 (common Type)
-
Explosion proof:
-
Exd (if have transmitter)

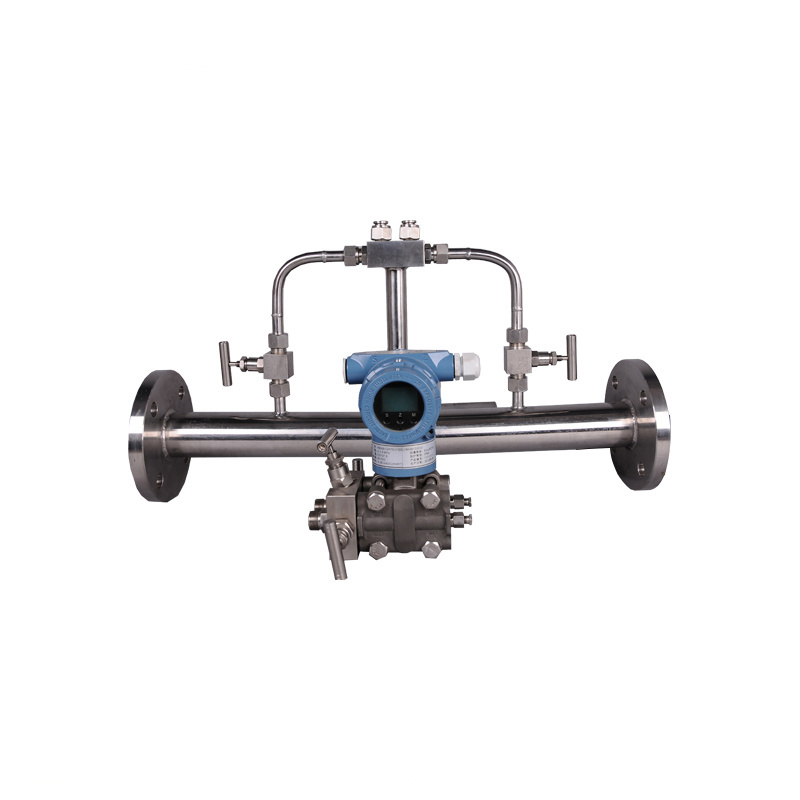

Vacorda wedge shaped differential pressure flow meter for liquid gas and steam application
Working Principle
Wedge-shaped flow meter is new style differential pressure flow meter from our company, which is consist of flow sensor and differential pressure transmitter. It has already made up the gap that domestic measuring domain have no flowmeter that can measure city gas with large-scale change(flow change can be dozens of times with the change of time) and natural gas; Which has solved the flow measuring difficulty of pix, pitch, residue oil, paraffinic oil and all kinds of mediums with high viscosity. Besides, it is also widely used in measuring those enterprises with strong causticity , those saturated or oversaturated acid, alkaline, and saline liquid will separate out crystallization with the change of temperature.
LX wedge-shaped flowmeter with simple structure, reliable property, easy installation, competitive price and low cost to be maintained, and has been widely used in measuring clean liquid, fluid with high viscosity, corrosive fluid, slurry, kinds of gas---air, steam, smudgy gas and natural gas etc. It is also can be used under this situation--- Reynolds number of pipe is 500 and viscosity is 500 mpa.s.
|
Accuracy class |
0.5(0.2,0.3,0.4 customize) |
|
Long-term stability |
± 0.2% F.S / Y |
|
Repeatability |
± 0.2% |
|
Medium |
All kinds of liquid, gas and steam |
|
Min flow rate |
0.01m/s |
|
Measuring range |
Normal: 1:25, max:1:33 |
|
Pressure loss |
About 1/5 of measuring differential pressure (1/3 orifice plate) |
|
Medium viscosity |
500mpa.s or more |
|
Working pressure scope |
-0.1~42MPa |
|
Working temperature scope |
-160℃~450℃(max 700℃) |
|
Pipe size |
DN10mm~DN1200mm(max 2500mm) |
|
D P transmitter power output supply |
4mA ~ 20mA DC ( HART ) , 24VDC |
