Tuya app remote control flowing automatic on/off valve wifi enable smart water valve

Tuya app remote control flowing automatic on/off valve wifi enable smart water valve

FOB Reference Price: Get Latest Price

≥5 Pieces

US $46.9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Zhongpei

Model Number:: UWM-214C

Nominal Diameter (mm):: DN15-DN20

Q3/Q1:: R250

Accuracy class:: ISOclass 2

Water pressure class:: 1.6MAP

Temperature class:: T30/T50

Installation position:: H/V

Types of Indicating device:: LCD:9-digits, 0~199999.9999m3

Power Source:: Lithium battery ER26500(replaceable)

Battery Voltage &Capacity:: 3.6V 8500mAh 8years

Standard:: ISO class B

Quick Details

Warranty:: 1 years

Type:: Ultrasonic meters, Prepaid water meters

Place of Origin:: Zhejiang, China

Brand Name:: Zhongpei

Model Number:: UWM-214C

Nominal Diameter (mm):: DN15-DN20

Q3/Q1:: R250

Accuracy class:: ISOclass 2

Water pressure class:: 1.6MAP

Temperature class:: T30/T50

Installation position:: H/V

Types of Indicating device:: LCD:9-digits, 0~199999.9999m3

Power Source:: Lithium battery ER26500(replaceable)

Battery Voltage &Capacity:: 3.6V 8500mAh 8years

Standard:: ISO class B

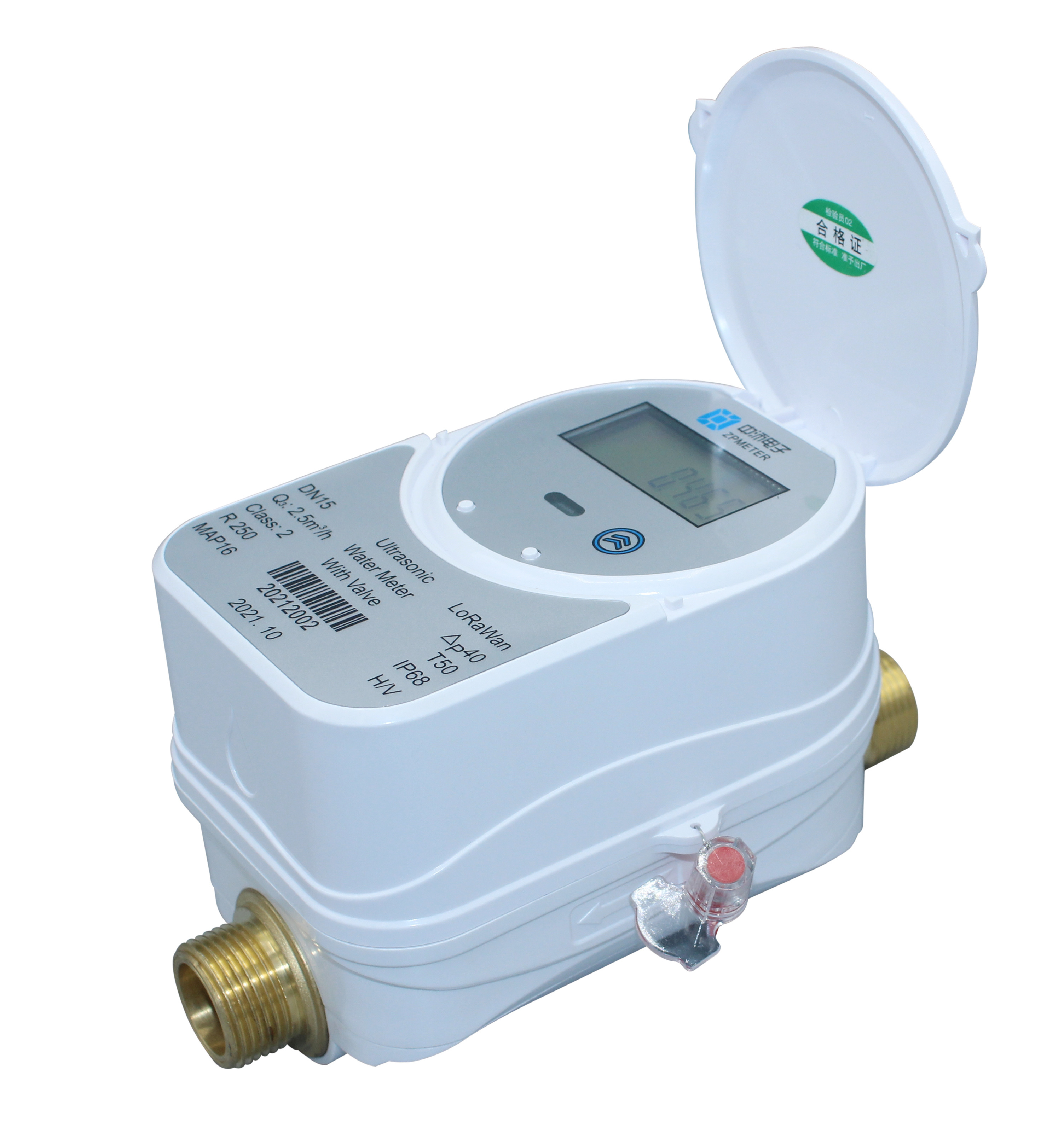

Products Description

Flexible Battery Life Span

214C has no moving parts, presents as IP68, and
its body is fabricated from durable brass material. This robust design makes the 214C maintenance-free and highly precise
throughout its flexible 3 or 10 years battery life depends upon customers’ needs.

Battery Replaceable
Battery is able to get replaced in case of failure of battery sets. This action can be treated by professional engineers without
any injection on electronic parts.

Proof of Humidity, Water and UV 214C is specially designed for extreme complex environment which has high humidity, blood or high UV.

IoT Ready 214C supports multiple communication interfaces for both wired and wireless which suitable for any type of installation environment, e.g. MBus, RS485 (Modbus), Pulse, LoRaWAN. Multiple Dynamic Range Options (Q3/Q1) Application for multiple requirements. From R160 to R250 and R400. Able to count every drop of water. Exceptional Industry Design Golden ratio of Length-Width-Height, splendid color assortment with Ocean Blue & Night Sky Black. Anti-dirty enclosure ensures long duration of tidy outlook same as original meter.

Pipe Diameter	DN15	DN20	DN25
Minimum Flow Rate Qi (m3/h)	0.00625	0.01	0.0252
Permanent Flow Rate Qp (m3/h)	2.5	4.0	6.3
Maximum Flow Rate Qs (m3/h)	3.125	5.0	7.875
Connection	G3/4”	G1”	G1 1/4”
Length (mm)	165	195	225
Width (mm)	97	97	97
Height (mm)	96.5	96.5	107
Temperature	Medium Range: T30/T50/T70/T90 Ambient Temperature:5 - 55℃ Storage Temperature:-20-60℃
Materials	Brass
Meteorologic Class	R125/R160/R200/R250/R400 (Optional)
Maximum Operation Pressure	1.6 Mpa
Pressure Loss	∆P≤0.063 Mpa
Pressure Stage	PN16 Bar
Protection Class	IP68
Battery	3.6VDC lithium battery, ≥ 6 years
Data Storage	24 months history data
Environmental Requirement	Environmental Class: E1, M1, B
Interface & Communication	M-Bus/RS485/Lora/GPRS/LoraWan/NB-IOT/Pulse/Zigbee/Sigfox (optional)
Installation	Horizontal or Vertical
Display and Indication	Unit:m3/Gallon (optional) LCD: 8-digital
Standard Compliance	EN14154 ISO4064 OIML R49
