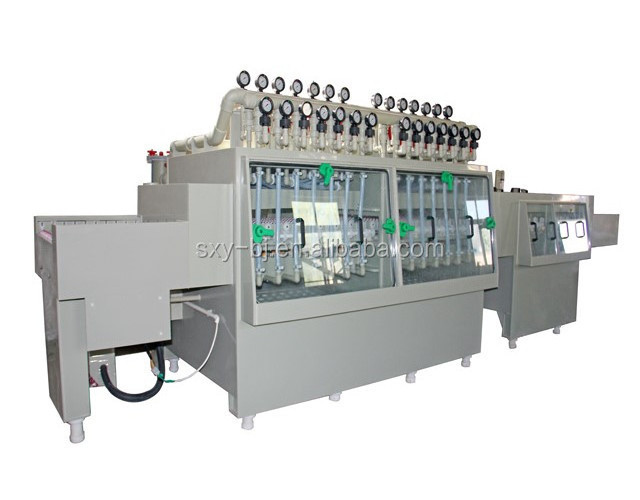

PCB Manufacturing Machine / PCB etching machinery

Circuit Board Manufacturing Machine/ PCB machines

Machine Model

SK-4

Machine Power

380V/50HZ/47KW

Working width

700mm

Etching area

size: 700mm W x 4000mm L

pump: 4KW motor x 4 sets

double etching with oscillation

heater: titanium -- 3KW/pc x 4 pcs

cooling : titanium pipe

nozzle: Fan-nozzles

Stripping area

size: 700mm W x 2000mm L

pump: 4KW motor x 2 sets

heater: titanium -- 3KW/pc x 2 pcs

cooling : titanium pipe

nozzle: Fan-nozzles

Rinse Part

2.2KW motor

Machine Material

PP plate, resist high temperature

Conveyor Wheel

specialized conveyor wheel for PCB machine

Machine Size

8000x1700x1800mm

Protection Function

1. Temperature Control System
2. Pressure Control System
3. Double Filter System
4. Conveyor Control System
