Quick Details
-
Range of Spindle Speed(r.p.m):
-
40 - 1400 r.p.m
-
Width of bed (mm):
-
360
-
Max. Turned Length (mm):
-
1000 mm
-
Spindle Motor Power(kW):
-
4
-
Year:
-
2022
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SuperTech
-
Model Number:
-
LC410/1000
-
Voltage:
-
380/220/415, 220V/ 380V/ 415V
-
Dimension(L*W*H):
-
2450*1150*1750mm
-
Weight (KG):
-
1750 KG
-
Product name:
-
Lathe Machine
-
Function:
-
Metal-Cutting
-
Control:
-
Manual
-
Color:
-
Customizd
-
Cutting material:
-
Metal .alloy Metal .aluminum
-
Max. Swing Diameter:
-
410mm
Quick Details
-
Max. Length of Workpiece (mm):
-
1000
-
Machining Capacity:
-
Heavy Duty
-
Spindle Bore(mm):
-
52
-
Range of Spindle Speed(r.p.m):
-
40 - 1400 r.p.m
-
Width of bed (mm):
-
360
-
Max. Turned Length (mm):
-
1000 mm
-
Spindle Motor Power(kW):
-
4
-
Year:
-
2022
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SuperTech
-
Model Number:
-
LC410/1000
-
Voltage:
-
380/220/415, 220V/ 380V/ 415V
-
Dimension(L*W*H):
-
2450*1150*1750mm
-
Weight (KG):
-
1750 KG
-
Product name:
-
Lathe Machine
-
Function:
-
Metal-Cutting
-
Control:
-
Manual
-
Color:
-
Customizd
-
Cutting material:
-
Metal .alloy Metal .aluminum
-
Max. Swing Diameter:
-
410mm

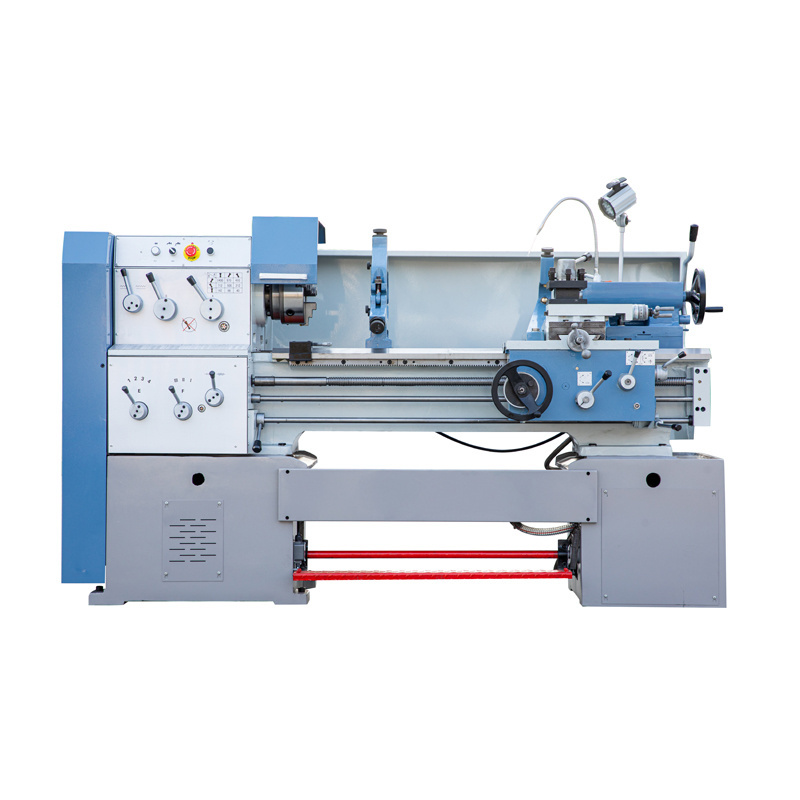

LC410 SERIES
LC410/1000 for
teaching equipment
LC510(A) SERIES
LC510/2000 for factory
LC600(A) SERIES
LC600/2000 for ship workshop
Production Description
PRODUCT FEATURES
*THE SURFACE OF THE BEDWAYS IS SUPERSONIC FREQUENCY HARDENED AND PRECISION GRINDING.
*HEADSTOCK GEARS PRECISELY GROUND AND HARDENED TO REDUCE NOISE.
*KINDS OF THREADS, RAPID TRAVEL PATENTED.
*THE SURFACE OF THE BEDWAYS IS SUPERSONIC FREQUENCY HARDENED AND PRECISION GRINDING.
*HEADSTOCK GEARS PRECISELY GROUND AND HARDENED TO REDUCE NOISE.
*KINDS OF THREADS, RAPID TRAVEL PATENTED.
|
SPECIFICATION
|
Item
|
UNIT
|
LC410
|
LC510(A)
|
LC600(A)
|
||
|
CAPACITY
|
Max.swing over bed
|
mm
|
410
|
500
|
600
|
||
|
2
|
Max.swing over cross slide
|
mm
|
230
|
330
|
360
|
||
|
|
Center Distance
|
mm
|
1000/1500/2000
|
|
|
||
|
HEADSTOCK
|
Spindle hole
|
mm
|
52
|
52(82)
|
52(82)
|
||
|
|
Spindle speed(Number)
|
rpm
|
40-1400
|
|
|
||
|
FEEDS AND THREADS
|
Longitudinal feeds range
|
mm
|
0.0832-4.66
|
|
|
||
|
|
Cross feeds range
|
mm
|
0.048-2.69
|
|
|
||
|
3
|
Metric threads range
|
mm
|
0.25-14
|
|
|
||
|
4
|
Inch threads range
|
TPI
|
2-40
|
|
|
||
|
TAILSTOCK
|
Dia.of tailstock sleeve
|
mm
|
65
|
75
|
75
|
||
|
6
|
Taper of tailstock sleeve
|
/
|
MT4
|
MT5
|
MT5
|
||
|
7
|
Max.travel of tailstock
|
mm
|
140
|
150
|
150
|
||
|
MOTOR
|
Main drive motor
|
KW
|
4
|
5.5
|
7.5
|
||
Product Details
The standard configuration for LC series lathe machine.
1. 3-jaw chuck
2. 4-jaw chuck
3. face plate
4. drive plate
5. steady rest
6. follow rest
7.
longitudinal touch stop
8. t
hread-cutting dial
The optional configuration for LC series lathe machine.
1. 2axis or 3axis digital readout system(SINO brand)
2. quick change tool post(USA/Italy/Europe type)
3. CE protection(Chuck/toolpost/leadscrew)
4. live center
5. drill chuk
6. taper function attachment
7. rapid travel for X/Z axis with motor
8. turning tools set and inserts
