- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
JM Spiral roller, return idler
-
Description:
-

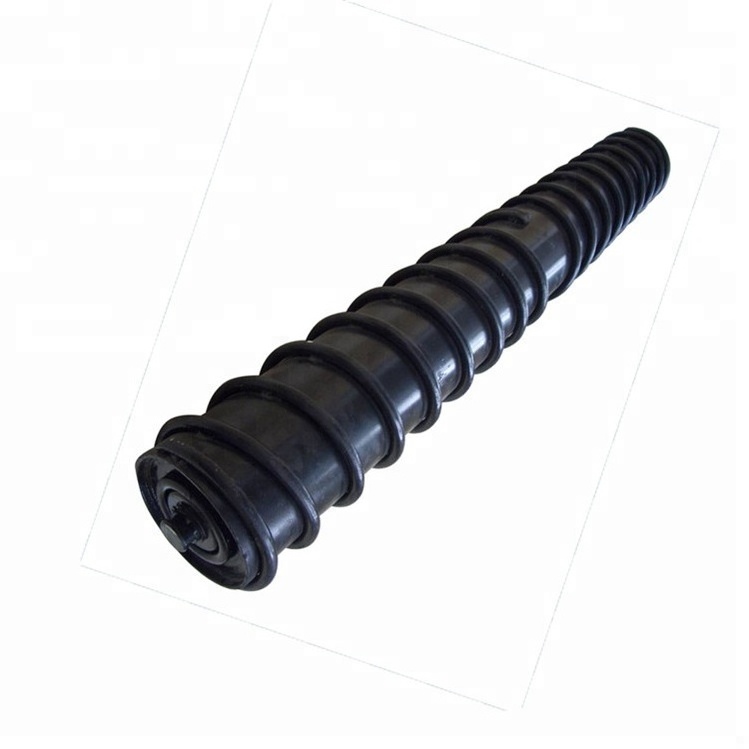

Concrete plant Rubber Spiral Return Conveyor Roller Factory
-
Diameter:
-
50-219mm
-
Length:
-
190-3500mm
-
Material:
-
carbon steel pipe, rubber, HDPE or UHMWPE
-
Colour:
-
as your requirement
-
Standard:
-
ISO,CEMA,DIN
-
Sample:
-
Available for you
-
Application field:
-
Cement,Grain, Electric power, mining, Steel factory, stone quarry,,...
-
Service life:
-
1 Year
-
Usage:
-
Conveyor Belt System
Quick Details
-
Warranty:
-
1 Year
-
Weight (KG):
-
5
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JM Spiral roller, return idler
-
Description:
-
Concrete plant Rubber Spiral Return Conveyor Roller Factory
-
Diameter:
-
50-219mm
-
Length:
-
190-3500mm
-
Material:
-
carbon steel pipe, rubber, HDPE or UHMWPE
-
Colour:
-
as your requirement
-
Standard:
-
ISO,CEMA,DIN
-
Sample:
-
Available for you
-
Application field:
-
Cement,Grain, Electric power, mining, Steel factory, stone quarry,,...
-
Service life:
-
1 Year
-
Usage:
-
Conveyor Belt System
Products Description
Material of CEMA standard conveyor roller
1.Rubber Roller idlers Dia 60mm-219mm, length 190-3500mm, which are used in the steel industry, harbor, coal industry, power industry, cement industry, etc.
2.Shaft: 45# STEEL equal to C45, or as request.
3.Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance, the brand can be according to the customers'
requirements.
4.Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.
5. Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.
6. Welding: Mixed gas shielded arc welding end
7. Painting: ordinary painting, hot galvanized painting, electric static spraying painting, baked painting.
1.Rubber Roller idlers Dia 60mm-219mm, length 190-3500mm, which are used in the steel industry, harbor, coal industry, power industry, cement industry, etc.
2.Shaft: 45# STEEL equal to C45, or as request.
3.Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance, the brand can be according to the customers'
requirements.
4.Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.
5. Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.
6. Welding: Mixed gas shielded arc welding end
7. Painting: ordinary painting, hot galvanized painting, electric static spraying painting, baked painting.
Specification of CEMA standard conveyor roller
|
Product name
|
Belt Conveyor roller
|
|
Lift time
|
50000 hours
|
|
Production capacity
|
As usual 600 pieces/day
|
|
Diameter & Length
|
Dia: 76-219mm, Len: 190-3500mm
|
|
Tube
|
Q235 carbon steel
|
|
Shaft
|
45# Cold drawing round steel, Dia: 20mm, 30mm , 35mm, 40mm
|
|
Bearing
|
Single and double row deep groove ball bearing 2RZ and 2Z with C3 clearance
|
|
Bearing No.
|
6204, 6205, 6305, 6306, 6307, 6308, 6309, 6310
|
|
Seals
|
Grease retaining inner seal with multi-stage labyrinth and retention cap with outboard rubbing flinger seal
|
|
Welding
|
Mixed gas shielded arc welding end
|
|
Finish
|
Painting/rubber/steel screw/galvanized
|
|
Standard
|
ISO/BS/JIS/DIN/CEMA/Australia
|
|
Material feature
|
Water, wear, dust and corrosion resistance
|
|
Certifications
|
ISO9001/BV/SGS
|
|
Application
|
Harbor & port, coal, mining, quarry, power industry, cement plant etc
|
Easy installationand nice flexibility.
Heavy-duty carrying capacity
and definitely water/dust proof.
Strong construction and
perfect dynamic balance.
Reduce vibration and 20% lifetime extension of belt.
Extremely low roundness and
low friction coefficient.
Nicely powder coating
makes the roller high wear resistance and good-looking
Hebei Juming Conveyor Machinery Co.,Ltd is a China-based professional manufacturer of belt conveyor and spare parts
(idler,frame,pulley,belt)，the factory in a 10 000 sqm. Established in 1980, we are full of experience, CEMA/DIN,JIS/AS/SABS /GB
standard available. Our products are widely used in electric power, metallurgy, mine, coal, cement, steel, chemical, port,
hydroelectric power and grain industries.
(idler,frame,pulley,belt)，the factory in a 10 000 sqm. Established in 1980, we are full of experience, CEMA/DIN,JIS/AS/SABS /GB
standard available. Our products are widely used in electric power, metallurgy, mine, coal, cement, steel, chemical, port,
hydroelectric power and grain industries.
We have accumulated 39 years of experience in manufacturing conveyor idlers. So we know well how to produce and supply stable and reliable products to our customers.
The experienced engineer can design the products as customer’s requirement and give the advice.
Our highly specialized workshops are equipped with the advanced production means.
The standardized and automatic manufacturing technology ensure the conformity and reliability of the products, thus avoiding the risks from product discrepancy.
Perfect quality inspection system can guarantee product quality.
During the development of the enterprise, Hebei Juming passed the international system certifications ISO9001, export products countries all over the world, like the UK,GERMANY,ITALY, SOUTH AFRICA,CANADA,USA,MEXICO,CLOMBIA,PERU,CHILE,enjoy a good reputation.
Q: Are you a factory or trading company?
A: We are a factory and have export license. Besides, our factory has a number of product lines to provide products with stable
production capacity for customers in delivery time.
Q: What information do I need to provide in order to confirm the conveyor rollers order?
A: We work with technical drawings for any non-standard products. If the order is for standard parts, you only have to provide us
with the part number so we may define the parts of the order.
Q: Do you have the products in stock?
A: No. All the products are produced according to your order.
Q: Can you produce the hose with my own brand?
A: Yes, we have been offering OEM services to famous manufacturer for several years. Please send email to talk about details.
Q: How long is your delivery time?
A: Generally it is 7-30 days, details depend on your order quantity.
Q: How does your factory do regarding to quality control?
A: Quality is priority. We always attach great importance to quality control from beginning to the end of the production. Every
batch conveyor rollers will be carefully inspected before it's packed for shipment.
Q: Can I order a sample?
A: Of course. We can offer regular model roller sample for free, but the freight cost shall be borne by your side. If you want
customized model sample, we'd like you to bear the charge for sample and freight.
Q: What’s benefit will I get?
A: Your client satisfied on the quality.
Your client continued orders.
You can get good reputation from your market and obtain more orders.
A: We are a factory and have export license. Besides, our factory has a number of product lines to provide products with stable
production capacity for customers in delivery time.
Q: What information do I need to provide in order to confirm the conveyor rollers order?
A: We work with technical drawings for any non-standard products. If the order is for standard parts, you only have to provide us
with the part number so we may define the parts of the order.
Q: Do you have the products in stock?
A: No. All the products are produced according to your order.
Q: Can you produce the hose with my own brand?
A: Yes, we have been offering OEM services to famous manufacturer for several years. Please send email to talk about details.
Q: How long is your delivery time?
A: Generally it is 7-30 days, details depend on your order quantity.
Q: How does your factory do regarding to quality control?
A: Quality is priority. We always attach great importance to quality control from beginning to the end of the production. Every
batch conveyor rollers will be carefully inspected before it's packed for shipment.
Q: Can I order a sample?
A: Of course. We can offer regular model roller sample for free, but the freight cost shall be borne by your side. If you want
customized model sample, we'd like you to bear the charge for sample and freight.
Q: What’s benefit will I get?
A: Your client satisfied on the quality.
Your client continued orders.
You can get good reputation from your market and obtain more orders.
