Quick Details
-
Brand Name:
-
ITECH, ITECH
-
Model Number:
-
PPM-A320VB
-
Product name:
-
Pick And Place Machine
-
Mounting No.:
-
2pcs
-
PCB Maximum Size:
-
320*450mm
-
PCB Thickness:
-
2mm
-
Feeder::
-
8mm, 12mm, 16mm, 24mm,32mm
-
Vision Camera:
-
4pcs
-
Compatible File Format:
-
CSV, TXT format
-
Mounting Speed:
-
5500pcs/H
-
Certification:
-
CE Certificated
Quick Details
-
Weight (KG):
-
96
-
Marketing Type:
-
Automatic Pcb Assemble
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ITECH, ITECH
-
Model Number:
-
PPM-A320VB
-
Product name:
-
Pick And Place Machine
-
Mounting No.:
-
2pcs
-
PCB Maximum Size:
-
320*450mm
-
PCB Thickness:
-
2mm
-
Feeder::
-
8mm, 12mm, 16mm, 24mm,32mm
-
Vision Camera:
-
4pcs
-
Compatible File Format:
-
CSV, TXT format
-
Mounting Speed:
-
5500pcs/H
-
Certification:
-
CE Certificated
Products Details
Products Description
|
Model
|
|
PPM-A320VB
|
|
|
|||
|
Mounting Numbers
|
|
2PCS
|
|
|
|||
|
Mounting Precision
|
|
0.025mm
|
|
|
|||
|
Mounting Angle
|
|
0～360°
|
|
|
|||
|
Mounting Speed
|
|
5500pcs/hour
|
|
|
|||
|
Suction Nozzle Type
|
|
Juki Series Nozzle
|
|
|
|||
|
Applicable Element
|
|
RC(0402、0603、0805、1206 etc)
|
|
|
|||
|
|
|
LED Lamp Beads(0603、0805、3014、5050 etc)
|
|
|
|||
|
|
|
Chip(SOT、SOP、QFN、BGA etc)
|
|
|
|||
|
SMD Height
|
|
≤5.5mm(Customize ≤11mm)
|
|
|
|||
|
PCB Minimal Size
|
|
10×10mm
|
|
|
|||
|
PCB Maximum Size
|
|
320×450mm
|
|
|
|||
|
PCB Thickness
|
|
≤2mm
|
|
|
|||
|
Components Wheel Type
|
|
8mm, 12mm, 16mm, 24mm
|
|
|
|||
|
Front IC Location
|
|
10pcs
|
|
|
|||
|
Back IC Tray
|
|
1pc
|
|
|
|||
|
Vibration Feeder
|
|
ITECH Customized Feeder(Optional)
|
|
|
|||
|
X/Y Axis Moving Range
|
|
430×530mm
|
|
|
|||
|
Z Axis Moving Range
|
|
10mm
|
|
|
|||
|
Z Axis Rotation Angle
|
|
0～360°
|
|
|
|||
|
Visual Camera
|
|
CCD High-definition Camera
|
|
|
|||
|
Numbers of Visual
|
|
Parts Camera×3、PCB Camera×1
|
|
|
|||
|
Recognition Capability
|
|
MAX. 22×22mm
|
|
|
|||
|
PC System
|
|
Microsoft WIN7
|
|
|
|||
|
Operational Software
|
|
R & D
|
|
|
|||
|
Compatible File Format
|
|
CSV. TXT. Format
|
|
|
|||
|
Program Method
|
|
Support Online and Offline Ways
|
|
|
|||
|
Air Pressure
|
|
0.4Mpa
|
|
|
|||
|
Vacuity Degree
|
|
-66kpa
|
|
|
|||
|
Power
|
|
230W
|
|
|
|||
|
Power Supply
|
|
AC220V±10％ 50Hz
|
|
|
|||
|
Main Engine Outline Size
|
|
L990×W730×H375mm
|
|
|
|||
|
1#Materials Feeder Outline Size
|
|
L235×W700×H245mm
|
|
|
|||
|
2#Materials Feeder Outline Size
|
|
L235×W485×H245mm
|
|
|
|||
|
Weight
|
|
85
|
|
|
|||
SMT PICK AND PLACE MACHINE SOLUTION
For Proofing and Small Batch Production
Flexible Machine Solution for Placement
ITECH is a professional manufacturer providing a series of SMT machines and THT machines. All products have CE certificate. If you have any questions about the product, please contact us directly.
Smt Pick And Place Machine Hardware Detail
For Trustable Online Performance

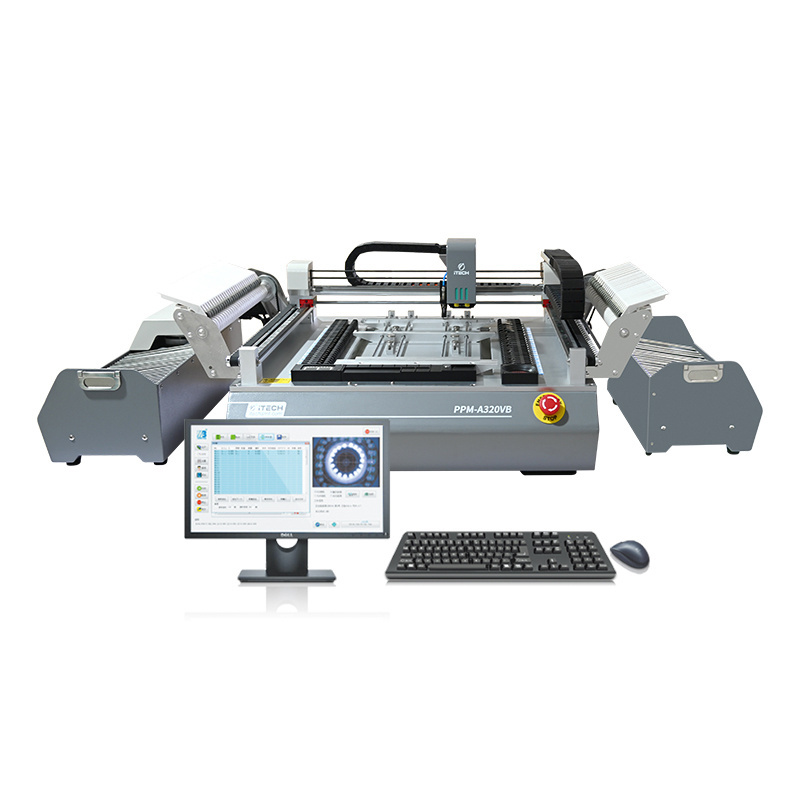

The PPM-A320VB series mounter with 2heads ,can pick and place at the same time. Independent 54 feeder station, 19"Dell display,multiple sets of high resolution CCD industry dual camera vision. The transmission mechanism is equipped with high precision synchronous belt. and linean guideway, stepping servo motor. support CSV. TXT. document edit.
