Quick Details
-
Brand Name:
-
TSAUTOP
-
Model Number:
-
TSHDTM3000B
-
Printing:
-
water transfer printing
-
Product Name:
-
Water Transfer Printing Hydrographics Equipment with Dipping Arm
-
Material:
-
201# Stainless Steel
-
Size:
-
L: 300CM X W: 120CM X H: 90CM
-
Dipping Area dimensions:
-
L: 250CM X W: 110CM X H: 70CM
-
Heating Elements:
-
With 6kw power heater *2pcs
-
Gross WT:
-
400 KGS
-
Package Size:
-
L: 310CM X W: 127CM X H: 110CM
-
Thickness:
-
2.5mm+-0.2mm
-
Voltage:
-
208-240V
-
Certification:
-
CE
Quick Details
-
Method:
-
Water Transfer Printing Hydrographics Equipment with Dipping Arm
-
Usage:
-
water transfer printing
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TSAUTOP
-
Model Number:
-
TSHDTM3000B
-
Printing:
-
water transfer printing
-
Product Name:
-
Water Transfer Printing Hydrographics Equipment with Dipping Arm
-
Material:
-
201# Stainless Steel
-
Size:
-
L: 300CM X W: 120CM X H: 90CM
-
Dipping Area dimensions:
-
L: 250CM X W: 110CM X H: 70CM
-
Heating Elements:
-
With 6kw power heater *2pcs
-
Gross WT:
-
400 KGS
-
Package Size:
-
L: 310CM X W: 127CM X H: 110CM
-
Thickness:
-
2.5mm+-0.2mm
-
Voltage:
-
208-240V
-
Certification:
-
CE

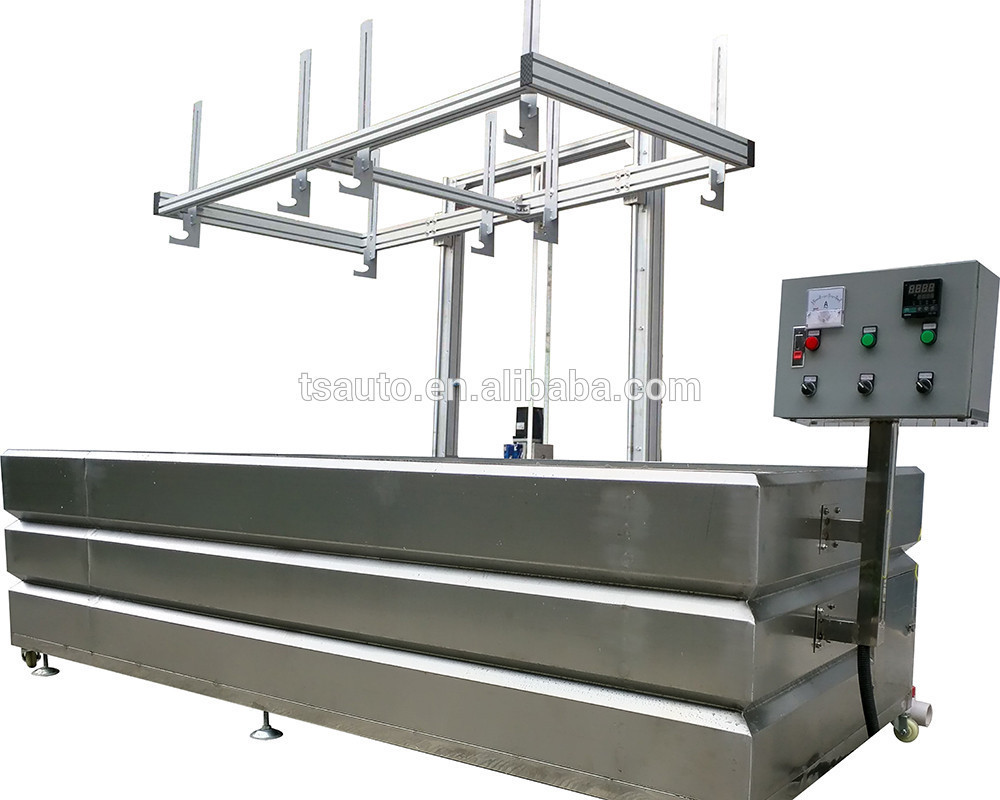

TSAUTOP certification 3x1.2x0.9M Water Transfer Printing Hydrographics Equipment with Dipping Arm
TSAUTOP® semi-automatic hydro dipping tank with CE certification is a simple, safe, useful, eco and efficient hydro dipping machine. It is a key equipment for the whole hydro dipping process. It is very suitable for small dipping business owners. This hydro dipping tank add a dipping arm on the basis of the original manual hydro dipping tank. So it can dip many items automatically one time.
TSAUTOP® hydro dipping tank has a superb welding process and a humanized structural design. All welded parts are welded with 304 stainless steel welding wire. All the welding marks are polished to ensure no leaks. So, it can guarantee no water leakage for 5 years. TSAUTOP® hydro dipping tank is equipped with 4pcs wiper and partition plate and one beam, can wipe the film slag and divide the dipping area into few small areas, ensure the film not to expand too much. TSAUTOP® hydro dipping tank is designed as two parts dipping tank, filter and heating tank. It ensures enough dipping area and fast heating.
TSAUTOP® semi-automatic hydro dipping tank is equipped of high performance and high stability dipping arm. This dipping arm is made of High-strength aluminum alloy and easy to assembly and install with the tank. The height, length and width of holder frame can be adjusted, so it can suitable for all sizes tanks. The dipping arm has two types electric and pneumatic, the electric dipping arm can bear 200kg and the pneumatic dipping arm can bear 80kg. TSAUTOP® semi-automatic hydro dipping tank will help you improve your dipping speed and quality so much.
TSAUTOP® hydro dipping tank is made of 2.5mm thick 201 stainless steel, framed of 2mm thick 304 stainless steel square pipe and equipped 6pcs universal wheels and thick feet, all of these ensure that the hydro dipping tank can hold enough water without deformation. Thick stainless steel can ensure to resist acid, alkali, salt and corrosion. All of these ensure TSAUTOP® hydro dipping tank long life.
TSAUTOP® hydro dipping tank have good quality and high-power heating element.1.2m tank has 1set 6kw heating element,2-3m tank has 2sets 6kw heating elements. This can ensure fast-heating in 30minutes.There has 2 pcs thermostats on the control box and 2pcs temperature sensors, the temperature of dipping tank and heating tank can be set and monitored real-time. When the temperature reaches the set temperature, the heating element will stop to heat water, this will save your power. In the normal, the temperature will set 25-35℃.Certainly, you can turn on all or one or nothing according your local temperature.
TSAUTOP® hydro dipping tank is equipped low-noise, strong-flow and long-life stainless-steel water pump, ensure flush the film slag. 375W pump for 1.2m tank,750w for 2-3m tank, We can make the tanks with various voltages as your requirements, such as single phase 110v,220v,3phases 220v,380v or the other special voltages. There have some high-pressure spray nozzles at the end of water outer ensure the water flushed farther.
The electric box and wires of TSAUTOP® hydro dipping tank is equipped safely. All working units are equipped of circuit breaker protection switches and emergency stop switch, ensure the safety of human and machines in the emergency. All wires are concealed and packed of protective pipe to prevent electricity leakage. All tanks have equipped earth wire to avoid electric shock.
TSAUTOP® hydro dipping tank is easy to install and operate. The electrical wire connecting is simple. Each wire sticks a number, you connect the wire as the number. We supply detail manual book. We have different dimensions hydrographic tank, you can choose the suitable one according to your working items.
TSAUTOP® hydro dipping tank has a superb welding process and a humanized structural design. All welded parts are welded with 304 stainless steel welding wire. All the welding marks are polished to ensure no leaks. So, it can guarantee no water leakage for 5 years. TSAUTOP® hydro dipping tank is equipped with 4pcs wiper and partition plate and one beam, can wipe the film slag and divide the dipping area into few small areas, ensure the film not to expand too much. TSAUTOP® hydro dipping tank is designed as two parts dipping tank, filter and heating tank. It ensures enough dipping area and fast heating.
TSAUTOP® semi-automatic hydro dipping tank is equipped of high performance and high stability dipping arm. This dipping arm is made of High-strength aluminum alloy and easy to assembly and install with the tank. The height, length and width of holder frame can be adjusted, so it can suitable for all sizes tanks. The dipping arm has two types electric and pneumatic, the electric dipping arm can bear 200kg and the pneumatic dipping arm can bear 80kg. TSAUTOP® semi-automatic hydro dipping tank will help you improve your dipping speed and quality so much.
TSAUTOP® hydro dipping tank is made of 2.5mm thick 201 stainless steel, framed of 2mm thick 304 stainless steel square pipe and equipped 6pcs universal wheels and thick feet, all of these ensure that the hydro dipping tank can hold enough water without deformation. Thick stainless steel can ensure to resist acid, alkali, salt and corrosion. All of these ensure TSAUTOP® hydro dipping tank long life.
TSAUTOP® hydro dipping tank have good quality and high-power heating element.1.2m tank has 1set 6kw heating element,2-3m tank has 2sets 6kw heating elements. This can ensure fast-heating in 30minutes.There has 2 pcs thermostats on the control box and 2pcs temperature sensors, the temperature of dipping tank and heating tank can be set and monitored real-time. When the temperature reaches the set temperature, the heating element will stop to heat water, this will save your power. In the normal, the temperature will set 25-35℃.Certainly, you can turn on all or one or nothing according your local temperature.
TSAUTOP® hydro dipping tank is equipped low-noise, strong-flow and long-life stainless-steel water pump, ensure flush the film slag. 375W pump for 1.2m tank,750w for 2-3m tank, We can make the tanks with various voltages as your requirements, such as single phase 110v,220v,3phases 220v,380v or the other special voltages. There have some high-pressure spray nozzles at the end of water outer ensure the water flushed farther.
The electric box and wires of TSAUTOP® hydro dipping tank is equipped safely. All working units are equipped of circuit breaker protection switches and emergency stop switch, ensure the safety of human and machines in the emergency. All wires are concealed and packed of protective pipe to prevent electricity leakage. All tanks have equipped earth wire to avoid electric shock.
TSAUTOP® hydro dipping tank is easy to install and operate. The electrical wire connecting is simple. Each wire sticks a number, you connect the wire as the number. We supply detail manual book. We have different dimensions hydrographic tank, you can choose the suitable one according to your working items.
Product Description
|
Product Name
|
TSAUTOP certification 3x1.2x0.9M Water Transfer Printing Hydrographics Equipment with Dipping Arm
|
Brand
|
TSAUTOP
|
|
Size
|
L: 300CM X W: 120CM X H: 90CM
|
Material
|
Stainless Steel
|
|
Dipping Area dimensions
|
L: 250CM X W: 110CM X H: 70CM
|
Certifcate
|
CE Certification
|
|
Dipping Arm Size
|
(height)200cm*100cm.holding frame 90*180cm
|
Dipping Arm Load-bearing
|
Electric 80kg/pneumatic 200kg
|
|
Heating Elements
|
2 Sets, 208-240V, Single Phase, 50 HZ, 6000W*2
|
Water Recirculation System
|
Stainless Pump, 208-240V, Single Phase, 50 HZ, 750W
|
|
Control Box
|
1. Master Power On/Off Switch
2. Pump On/Off Switch
3. Heating Element1# &2# Switch
4. Digital Thermostat X 2 PCS
5. All the red and green lights needed for the switches.
6. E-stop
|
Package
|
L: 310CM X W: 130CM X H: 110CM
|
|
Water Capacity
|
2.5 Tons
|
Net WT
|
400 KG
|
Other Water Transfer Printing Film Machine
Related Products
Related products
Why Choose Us
OUR FACTORY
Certifications
CERTIFICATE
Our Service
FAQ
Q1:How expensive is hydro dipping?
A1:Most hydrographics shops charge around $75 to $80 per wheel, depending on labor costs and customizations. If hydrodipping is part of a wheel painting package, the cost may be higher.
Q2:What equipment is needed for hydro dipping?
A2:A hydro dip kit is perfect for beginners. The kit includes a hydrographic activator, speed shapes for testing, samples films for testing, and a spray gun system to be used for your top coat or base paint if needed.
Q3:Can I Hydro dip at home?
A3:While there are many companies specializing in hydro dip art for large items (e.g. cars and sports equipment), it's possible to do the process on your own and be creative. Purchase a home hydro dip kit online to apply a design of your choice, with minimal equipment or experience.
Q4:Is Hydro dipping permanent?
A4:Hydrographics, otherwise known as Hydro dipping, is paint based printing process. Once your item is painted and hydro dipped, they are protected with an automotive grade clear coat, whilst this is a permanent change, if you ever did change your mind, you could simply paint over it.
Q5:Is Hydro dipping easy?
A5:When you have a complete hydro dipping kit, the process is easy and fun. You can use the patterns that come with the kit or have a custom pattern applied to the film. You fill a container with water and lay the film on the surface
Q6:Can you Hydro dip guns?
A6:Because the pattern is printed on water-soluble polyvinyl alcohol film, it can dissolve when sprayed with a chemical agent.
Q7:Is Hydrographics a profitable business?
A7:According to industry estimates, the hydro dipping industry is estimated to be a $1 billion industry with a large chunk of the revenue coming from large scale hydrographic companies, and the smaller percentage coming from individual and small local companies.
Q8:Can you Hydro dip shoes?
A8:Hydro dipping is cool way to customize a pair of vans or other shoes
Q9:What shoes are best for Hydro dipping?
A9:Popular shoes to hydro dip include Nike Air Max, Nike Air Force 1, and Nike Air Jordans. You can also dip Converse All Stars, classic Vans Slip-Ons, and even Nike Slides. If you have a new pair of shoes you want to customize, or an old pair you want to give new life to, go it!
Q10:What is Hydro dipping activator?
A10:The activator is a chemical that liquefies the ink on the hydro dip film. After you have primed the object and painted it, the item is ready for the film. ... The film is carefully placed on the water surface of a dipping tank. Once the film is hydrated, you add the activator.
