Quick Details
-
Place of Origin:
-
Henan, China
-
Name:
-
corn grain dryer drying machine
-
Function:
-
drying grain
-
Keywords:
-
Corn Drying Machine
-
Usage:
-
Drying Paddy Grain
-
Feature:
-
Efficient
-
Suitable for:
-
grain
-
Advantage:
-
Multi Functional Usgae
-
Color:
-
Customer's Request
-
Fuel:
-
Fuel Gas
-
Voltage:
-
220v/380v/415v
Quick Details
-
Weight (KG):
-
800
-
Marketing Type:
-
Hot Product 2023
-
Use:
-
dry grain
-
Place of Origin:
-
Henan, China
-
Name:
-
corn grain dryer drying machine
-
Function:
-
drying grain
-
Keywords:
-
Corn Drying Machine
-
Usage:
-
Drying Paddy Grain
-
Feature:
-
Efficient
-
Suitable for:
-
grain
-
Advantage:
-
Multi Functional Usgae
-
Color:
-
Customer's Request
-
Fuel:
-
Fuel Gas
-
Voltage:
-
220v/380v/415v
Product Description

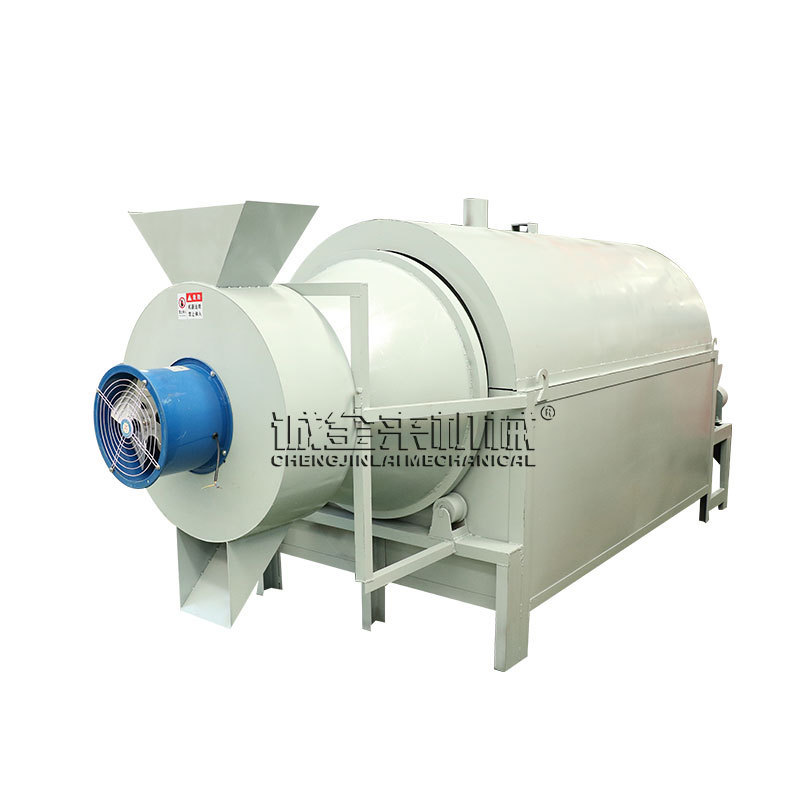

Drum portable small mobile drier machine for corn rotary grain paddy rice dryer
The
Dehumidification fans the types price of grain corn soybean paddy dryers
is mainly composed of a cylinder, a lifting plate, a transmission device, a support device and a head. The dryer is a cylinder that is slightly inclined to the horizontal direction. Materials are added from the higher end. High-temperature hot smoke and materials flow into the cylinder. When the drum rotates, the materials are picked up and dropped, so that the materials and air flow The contact surface is enlarged to increase the drying rate and move the material forward.
Working principle of grain dryer
The
Dehumidification fans the types price of grain corn soybean paddy dryers
adopts a technically mature stirring blade working mode. When operating normally in a timely manner, it can maximize the flipping and lifting of the materials so that they are evenly heated. It is suitable for drying materials with high moisture content. When necessary, the auxiliary dehumidification process can be used, which can effectively save energy consumption and overall working time.
Grain dryer features
1. Traditional dryers have the mature characteristics of wide range of use, strong adaptability and simple operation.
It has a reasonable and novel structure, good drying quality and low energy consumption.
2. It has small investment and low usage cost. It can automatically control the working process, automatically shut down, and is simple and labor-saving to operate. It meets the needs of small and medium-sized farms and farmers.
3. The equipment has a simple structure, small size, and is easy to operate. It does not require auxiliary equipment and is easy to transport and move.
4. It is easy to take out the pot. Just press the reverse switch to take it out of the pot and sieve and separate. It is easy to clean and does not mix seeds. It is especially suitable for drying grain seeds.
5. The heating system has good adaptability to energy. The energy can be selected from coal, firewood or biomass pellets, gas or electricity according to the user's needs.
Detailed Images
Specification
|
Model
|
Dimension(mm)
|
Capcity(kg/h)
|
Drum size(mm)
|
Power(kw)
|
Heating(kw)
|
|
CJL-200
|
3000* 1000* 1450 mm
|
200
|
800*1800*3mm
|
1.5
|
30
|
|
CJL-300
|
3800*1000*1450mm
|
300
|
800*2600*3mm
|
2.2
|
30-40
|
|
CJL-500
|
4200* 1200* 1850mm
|
500
|
1000*2800*3mm
|
3.0
|
40-50
|
|
CJL-1000
|
4800*1500*1700mm
|
1000
|
1200*3400*4mm
|
4.0
|
60-80
|
|
CJL-2000
|
6200*1800*2100mm
|
2000
|
1500*4400*5mm
|
7.5
|
80-100
|
|
CJL-3000
|
7800*1800*2100mm
|
3000
|
1500*6000*5mm
|
11
|
120-150
|
|
CJL-5000
|
9000*2300*2500mm
|
5000
|
1800*6600*8mm
|
15
|
180-200
|
