Quick Details
-
Brand Name:
-
Yufavor
-
Model Number:
-
P520
-
Max. Current:
-
20A
-
Max. Working Pressure:
-
20Bar
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Yufavor
-
Model Number:
-
P520
-
Max. Current:
-
20A
-
Max. Working Pressure:
-
20Bar
Product Overview

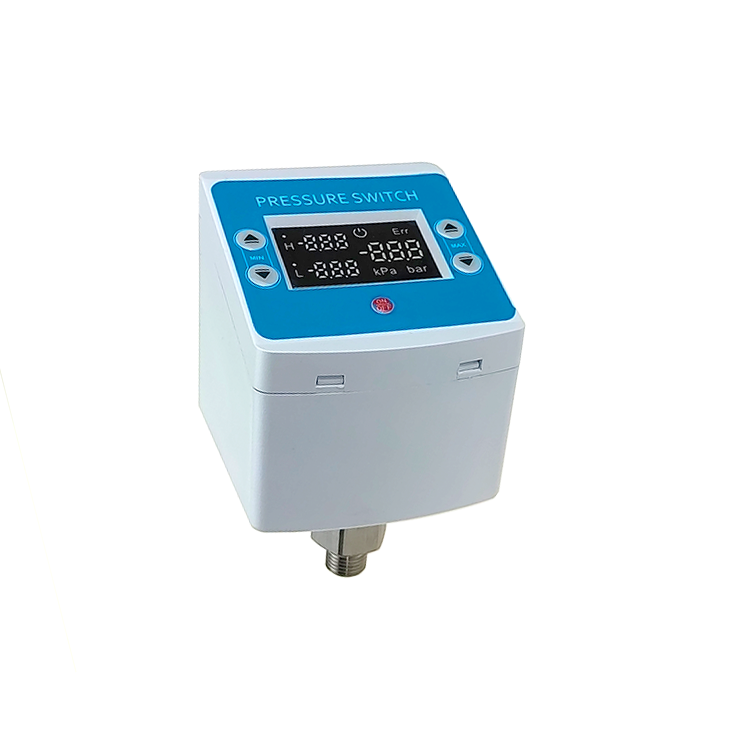

YF P520 VACCUM PRESSURE CONTROLLER
P520 is made by high- reliability sensor to measure pressure. After disposed by back-end circuit, the signal shows on its screen and automatically control relay output when pressure changes. It has been designed by engineering plastic shell and high-contrast LCD displayer so that P520 can be used in various industrial fields. It offers kinds of process connection types to meet different installation requirements. Users can adjust parameters freely, with variety of settings built-in, because it's very flexible and convenient to set up. P520 series with a clear display is featured for anti-vibration, long lifetime, easy operation and high stability.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Pressure range
|
-101-0Kpa;0-1.6MPa;0-20bar
|
|
2
|
Working temperature
|
0℃ to 50℃
|
|
3
|
Output
|
Single AC output
|
|
4
|
Accuracy
|
±1%F.S
|
|
5
|
Medium
|
Dry Air or neutral gas
|
|
6
|
Ingress Protection
|
IP54
|
|
7
|
Power supply
|
220VAC
|
FAQ
Q1：Can you accept OEM service?
A1：We professionally provide OEM service for pressure transducer
Q2: How about the quality of the magnets?
A2: We have certificates of ISO and CE. We could send those test of our company to you.
Q3: How is the price?
A3: We could provide the high quality pressure sensor on the reasonable price.
Q4: Could I visit your factory?
A4: Of course. We will help you visit our factory if needed.
Q5: How to order?
A5: In order to help you get the most suitable sensors through an accuate qotation, please specify things as many as you could like:
1. Range
2. Output signal
3. Pieces
4. Need sample?
5. Delivery time
6. ....
Q2: How about the quality of the magnets?
A2: We have certificates of ISO and CE. We could send those test of our company to you.
Q3: How is the price?
A3: We could provide the high quality pressure sensor on the reasonable price.
Q4: Could I visit your factory?
A4: Of course. We will help you visit our factory if needed.
Q5: How to order?
A5: In order to help you get the most suitable sensors through an accuate qotation, please specify things as many as you could like:
1. Range
2. Output signal
3. Pieces
4. Need sample?
5. Delivery time
6. ....
