Oily Sludge Treatment Mult-Belt Sludge Dewatering Machinery Wastewater Treatment for Sewage Treatment Plant

Oily Sludge Treatment Mult-Belt Sludge Dewatering Machinery Wastewater Treatment for Sewage Treatment Plant

FOB Reference Price: Get Latest Price

≥1 Sets

US $3600

≥2 Sets

US $3510

≥3 Sets

US $3420

≥4 Sets

US $3330

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 205KG

Size:: 1860*750*1080mm

Power:: 0.2

Productivity:: 6~12kg/h DS

Weight (KG):: 205 kg

Product name:: Sludge Dewatering Machine

Material2:: 2205 Stainless Steel

Color:: White

Application:: Sludge Dewatering

Filter Media:: Stainless Steel

Raw material:: 304/316 Stainless Steel

Filtering Type:: Oiled sludge

Use:: Dewatering treatment

Keywords:: Sludge treatment

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Maishan

Material:: Plywood wooden crates, 304 Stainless Steel

Weight:: 205KG

Size:: 1860*750*1080mm

Power:: 0.2

Productivity:: 6~12kg/h DS

Weight (KG):: 205 kg

Product name:: Sludge Dewatering Machine

Material2:: 2205 Stainless Steel

Color:: White

Application:: Sludge Dewatering

Filter Media:: Stainless Steel

Raw material:: 304/316 Stainless Steel

Filtering Type:: Oiled sludge

Use:: Dewatering treatment

Keywords:: Sludge treatment

Product Description

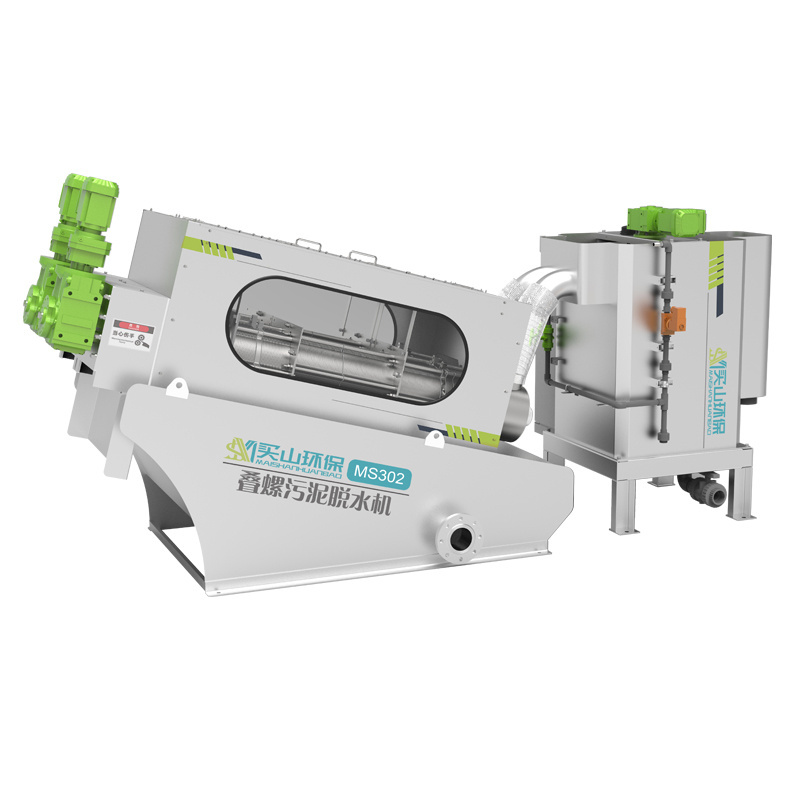

Multi-disc screw press sludge dewatering machine is a new type of solid-liquid separation equipment. The pitch of the screw and the gap between the rings are reduced, which increases its internal pressure, thus realizing dewatering.It can be widely used for sludge dewatering in city sludge, food, beverage, slaughtering and breeding, printing and dyeing, petrochemical, papermaking, leather and other industries, and can also handle oily sludge.

The unique dewatering principle enables the equipment to handle sludge with a concentration of 2000~50000mg/L.Multi-disc screw press wastewater sludge dewatering machine integrates sludge thickening and dewatering, realizing direct dewatering of low concentration sludge.

Product Features

Advantages of our equipment:

1.Designed for activated sludge, excellent at treating oily sludge.

2.Spiral adopts alloy steel surfacing and tungsten carbide spraying, so that the hardness of the blades can be as high as HV1200, which effectively reduces the wear and tear of the equipment. 3.The ring piece is molded in one piece, avoiding the problems of wear and aggravation of the ring piece and motor load caused by the thickness deviation and flatness due to the fragment welding and molding. 4.The ring piece is made of stainless steel 304 and high-strength duplex stainless steel 2205, high strength,ear-resistant, improve the life of the equipment. 5.Each ring piece thickness error ± 0.1mm or less, leveling, deburring, flatness ± 0.05mm, to ensure the accuracy of the filter seam, to ensure the filtration of the water area while reducing the mud run. 6.Dewatering section is equipped with stacked screw cleaning port, which is convenient to quickly and easily exclude the clogging caused by inhaling hard or fibrous impurities. 7. Installed in the stacked screw between the segments of a special processing of the ring piece, through the other ring piece and its comparative effect, can be visualized to observe the wear of the ring piece, easy to maintain in advance, to protect the operation of the equipment. 8.The motor is imported from Germany, the motor runs stably, you can also choose to specify the brand of motor. 9.Electrical components are imported brands to ensure the quality of its operation, PLC control of the automatic operation of the equipment, can be configured with my compan y's Internet of Things system, anytime, anywhere remote monitoring and alarm push, simplify the operation and maintenance.

Specification

item	value
Condition	New
Applicable Industries	Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company
Motor	NISSEI or customizable
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	Hot Product 2022
Warranty of core components	1 Year
Core Components	Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, Motor, PLC
Place of Origin	China
Province	Jiangsu
Brand Name	Maishan
Material	SS 304 / SS 316 / SS 2205
Weight	205 KG
Size	18607501080mm
Power	0.2 kw
Warranty	1 Year
Productivity	6~12KG,DS/h
Gross Weight (KG)	220 KG
Price	Manufacturer's factory price
Speed of delivery	Quick
Product Quality	Industry Benchmark
Type	Sewage Treatment

Quality Control

1. Before confirming the order. We will strictly confirm the equipment model, material, color, customized LOGO, and other special customized requirements. 2. We will follow the different stages of production from the very beginning and take video recordings 3. We will check and clean all the equipments, all the parts before packing. 4. Before product delivery, customer can send a quality controller or appointed third party to check the quality. 5. When any problem occurs, we will propose a suitable solution in a short time.
