Be equipped with an installation sub-board for easy installation and removal.
Install the sub-board on the building wall or on the outdoor bracket; if the product needs to be fixed on the outdoor tree trunk, please use 2 locking straps to pass directly through the base to fasten.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Jinyuopto
-
Model Number:
-
Jy-18006
-
Beam Angle(°):
-
270
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
5
-
Lamp Luminous Flux(lm):
-
1000
-
Working Lifetime(Hour):
-
5000
-
Working Temperature(℃):
-
-20 - 50
-
Product Weight（kg）:
-
0.685
-
Lamp Sizes:
-
32*11.5*12
-
Battery:
-
3.2V/6000mA 32700 Lithium iron phosphate battery
-
Charging Time:
-
5-6 Hours(Full Charged)
-
PIR Motion Sensor:
-
Angle: 180 Degree; Distance: 10 Meters
-
Three Lighting:
-
High Light, Dim Light and Constant Light
-
Solar panel:
-
5V/3W polycrystalline high efficiency solar panel
-
PIR:
-
2 pcs human body pyroelectric infrared sensor
-
Waterproof:
-
IP 65 Outdoor
-
Keyword:
-
IP65 Outdoor LED Walllight
-
Working mode:
-
Body Sensor
-
LED:
-
SMD2835 100PCS
Quick Details
-
Color Temperature(CCT):
-
5000K (Daylight)
-
Lamp Body Material:
-
ABS+PC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jinyuopto
-
Model Number:
-
Jy-18006
-
Beam Angle(°):
-
270
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
5
-
Lamp Luminous Flux(lm):
-
1000
-
Working Lifetime(Hour):
-
5000
-
Working Temperature(℃):
-
-20 - 50
-
Product Weight（kg）:
-
0.685
-
Lamp Sizes:
-
32*11.5*12
-
Battery:
-
3.2V/6000mA 32700 Lithium iron phosphate battery
-
Charging Time:
-
5-6 Hours(Full Charged)
-
PIR Motion Sensor:
-
Angle: 180 Degree; Distance: 10 Meters
-
Three Lighting:
-
High Light, Dim Light and Constant Light
-
Solar panel:
-
5V/3W polycrystalline high efficiency solar panel
-
PIR:
-
2 pcs human body pyroelectric infrared sensor
-
Waterproof:
-
IP 65 Outdoor
-
Keyword:
-
IP65 Outdoor LED Walllight
-
Working mode:
-
Body Sensor
-
LED:
-
SMD2835 100PCS

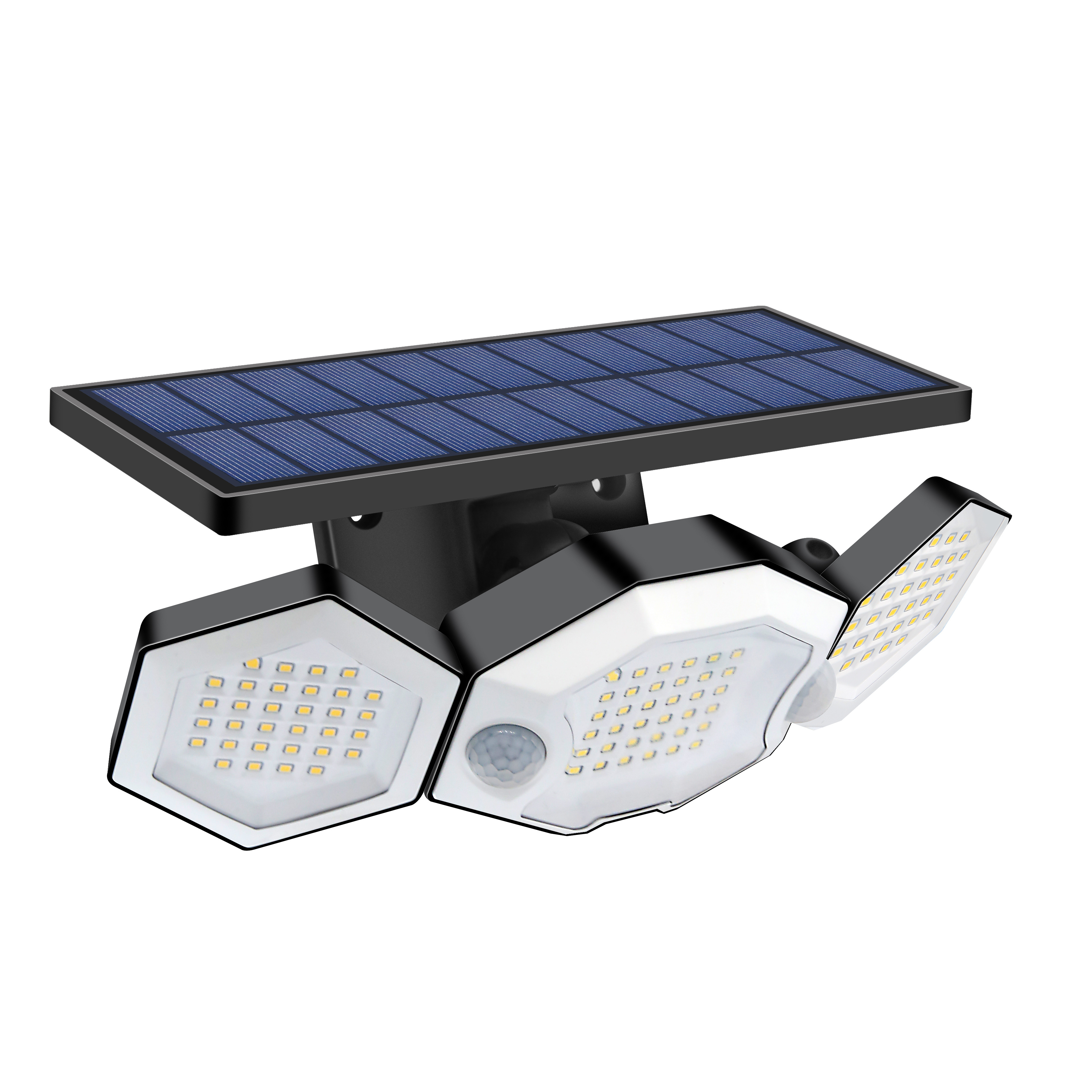

Dual Sensors 6000mAh 1200LM Waterproof Solar Flood Light Outdoor 270Wide Angle Solar Security Lights Solar Motion Sensor Lights
Product Description
Project case
It's a green and environmentally friendly new energy solar lamp; it is suitable for home portal lighting, outdoor courtyard, alley, fence, community, garage and other lighting.
Choose a location with sufficient sunlight to install the product. It is recommended that the installation height be about 2.5 meters above the ground.
Detailed Images
Product details
①1pcs 6000mA lithium iron phosphate battery for power supply.
②1pcs 5V_3W polycrystalline high-efficiency solar panels.
100pcs_0.5W 2835 bright SMD LED
③2pcs PIR human body pyroelectric infrared sensor.
④1pcs power ON/OFF switch (POWER key).
⑤1pcs function mode selection switch (MODE key).
⑥1pcs three-color indicator light_for product function mode selection indication.
⑦The product supports solar charging, light control, and human body induction to trigger lightingfunctions.
PCBA holds lithium battery charge/discharge protection module.
Into the night, when people close to the sensor light within 10 meters, the LED light on; People leave, LED lights go off after 40 seconds.
The sensitivity of the sensor detection is high, and the human body can be sensed within the Angle range of 180 degrees and the light can work
Product Presentation
|
|
32 x 11.5 x 12cm; 685 g
|
|
|
1 Lithium Ion batteries required. (included)
|
|
|
5v-3w
|
|
|
High brightness 100pcs SMD2835 white
|
|
Box packing size
|
250*120*127mm
|
|
12psc/box carton size
|
51*39*33.5cm
|
|
Accessories
|
instructions , screws , cable ties
|
