1.Gross Weight（kg）：850
2.Outside Dimension L×W×H（mm） 2130×1850×1050
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
OSATE
-
Model Number:
-
XRD42
-
Warranty:
-
12 Months
-
Product name:
-
truck tire changer machine
-
Color:
-
Customized Color Acceptable
-
Brand:
-
OEM Acceptable
-
Usage:
-
Changing Truck Tires
-
Other name:
-
Car Repair Machine Tyre Changer
-
Application:
-
Automotive Tire Demounting
-
Type:
-
Tire Repair Equipment
-
Delivery Time:
-
10-15days
-
Material:
-
Steel Body
-
Certification:
-
CE
Quick Details
-
Motor Power:
-
2.2kw
-
Power Supply:
-
220V Opitional
-
Place of Origin:
-
China
-
Brand Name:
-
OSATE
-
Model Number:
-
XRD42
-
Warranty:
-
12 Months
-
Product name:
-
truck tire changer machine
-
Color:
-
Customized Color Acceptable
-
Brand:
-
OEM Acceptable
-
Usage:
-
Changing Truck Tires
-
Other name:
-
Car Repair Machine Tyre Changer
-
Application:
-
Automotive Tire Demounting
-
Type:
-
Tire Repair Equipment
-
Delivery Time:
-
10-15days
-
Material:
-
Steel Body
-
Certification:
-
CE
Product Description
|
Rim Diamter
|
14" - 42"
|
|
Max.wheel weight
|
1600kg
|
|
Max Wheel Width
|
1050mm
|
|
Max Tyre Diameter
|
2300mm
|
|
Hydraulic Pump Motor
|
2.2KW 380V - 3PH - 50HZ（220V Optional）
|
|
Gearbox Motor
|
2.2KW 380V - 3PH - 50HZ（220V Optional）
|
|
Bead Breaker Force
|
3300kg
|
|
Max.Torque
|
5265N.m
|
|
Operation Control Voltage
|
24V
|
|
Machine Weight Approx
|
758kg
|
|
Overall Dimensions Approx
|
2500×2000mm
|
|
Power
|
220/400V 50/60HZ 1P/3P Optional
|
|
Noise Level
|
≤70db
|
|
Temperature
|
0℃~40℃
|

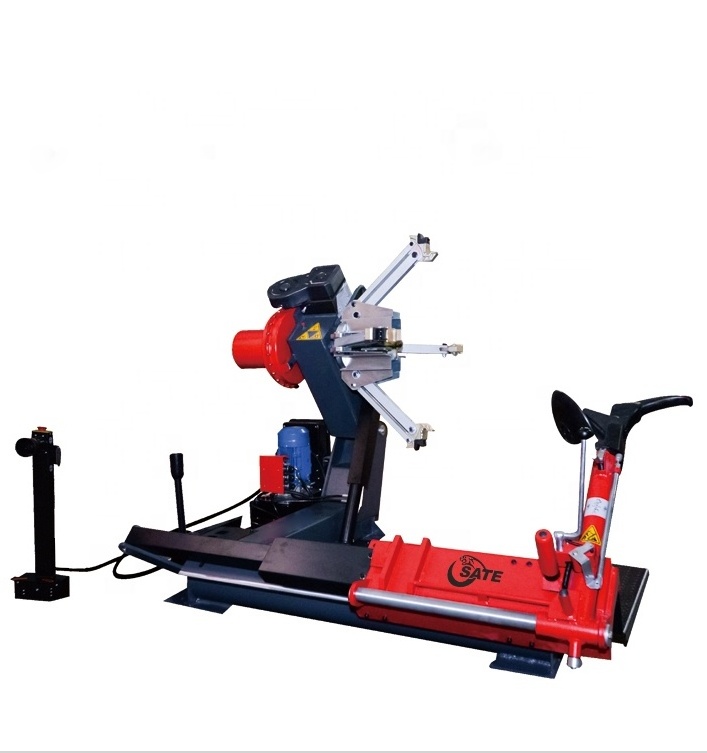

Details Photos
* Manually adjustable swing arm
* Suitable for truck, tractor and bus wheels
* Also suitable for agricultural machinery, tractors
* Electro-hydraulic operation
* Clockwise and counter-clockwise rotation
* Rim clamping capacity: 14"-42"
* Tools are placed on a portable stand
* Moving duckhead
* The lifting arm/demounting unit (lockable at two points) are placed on a hydraulic-operated sliding carriage,
* Suitable for truck, tractor and bus wheels
* Also suitable for agricultural machinery, tractors
* Electro-hydraulic operation
* Clockwise and counter-clockwise rotation
* Rim clamping capacity: 14"-42"
* Tools are placed on a portable stand
* Moving duckhead
* The lifting arm/demounting unit (lockable at two points) are placed on a hydraulic-operated sliding carriage,
force can be adjusted
* Stable frame
* CE certiffied
* Stable frame
* CE certiffied
OPTIONAL ACCESSORIES
STANDARD ACCESSORIES
Order Attention:(Very Important)
1.As the machine heavy and big volume,need to transport by sea not air,it need about one month from China.
2.The price on Alibaba is without any shipping cost.
3.Please send inquiry to us before place order to make sure which is the nearest port can delivery.Thanks!!
Product packaging
1.Gross Weight（kg）：850
2.Outside Dimension L×W×H（mm） 2130×1850×1050
Other Products
Packing and Delivery
|
Lead time
|
3-4 weeks after receiving deposit for 1x20ft order.
|
|
Packing
|
Standard export fumigated wooden pallet,carton box,color box,foam rubbers.
|
|
Lead term
|
EXW,FOB or CFR/CIF,DAF,DDU,etc.
|
|
Warranty period
|
12 months.
|
|
Shipping method
|
By sea or air,by express,etc.
|
Our Company
ABOUT US
Shanghai Xinruida Industrial Co., Ltd., Know as "OSATE" brand, as an expert in the field of automotive maintenance tools and workshop equipment production management, has a product history of more than 20 years. In the past two decades, XRD has provided high-reliability products to countless domestic and foreign users more than 50 contries, such as hydraulic jacks, presses, transport jacks, cranes, car lifts, etc. Products with CE certificates verfied to be complied with high quality standard.
Raw material
Producing line
Pressing machine
Exhibition
Certifications
Customers' Feedbacks
FAQ
Q: Do you test all your goods before delivery?
A:Yes, we have 100% test before delivery.
Q: How long is your delivery time?
A:Generally, it will take 30 to 45 days after receiving your advance payment.
Q: Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A:Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance paid upon B/L copy.If you have another questions, pls feel free to contact us.
Q: Can we print logo on the products ?
A: Yes,but it has MOQ requirment.
