deviation between rolling materials.
The deviation of material is calculated by
- Product Details
- {{item.text}}
Quick Details
-
Printing Type:
-
all Printing Machine
-
Weight (KG):
-
10
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Guangdong, China, Guangdong China (Mainland)
-
Brand Name:
-
Tianji, Tianji
-
Input Power supply:
-
24V DC
-
Output Power supply:
-
12V DC
-
Sensor:
-
12V DC
-
Delivery time:
-
3-7 Days
-
Use temperature:
-
0 ℃~ 40℃
-
Use humidity:
-
Below 80%RH
Quick Details
-
Condition:
-
New
-
Type:
-
Web guide control system
-
Use:
-
all brands of printing machine
-
Printing Type:
-
all Printing Machine
-
Weight (KG):
-
10
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Guangdong, China, Guangdong China (Mainland)
-
Brand Name:
-
Tianji, Tianji
-
Input Power supply:
-
24V DC
-
Output Power supply:
-
12V DC
-
Sensor:
-
12V DC
-
Delivery time:
-
3-7 Days
-
Use temperature:
-
0 ℃~ 40℃
-
Use humidity:
-
Below 80%RH
Product Description
EPC web guide control system
It is also called "All-in-one web guiding system".It is a servo rectifying system operated by high performance full touch screen. It is specially used to track material edge , track line and contrast degree . It is suitable for automatic control of rectifying
deviation between rolling materials.
deviation between rolling materials.
ultrasonic, infrared and CCD sensors, and the result is driven by the result. The motor and the code feedback are used to correct the offset material accurately, mainly used for Melt-blown fabric and non-woven production line,label and sanitary napkins production line, flexo printing,bag making,face mask production line, and other rewinding or unwinding industries.

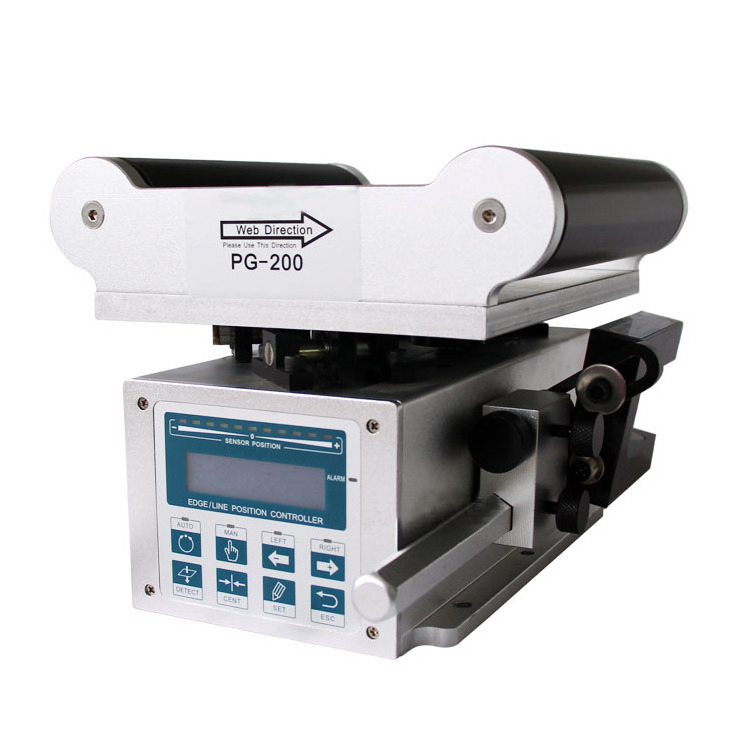

All-In-One Web Guide Control System PG Series Outline :
Our Newly developed all-in-one web guide controller is applied to accurate correct the narrow range of materials. Especially for label printing, packaging and non-woven industries. All-in-one web guiding controller is with compact design, easy installation and saving space. Controller, driver and detector are integrated which help user to increase high efficiency during installation and debugging.
Web guide system Product Features:
1. Brushless DC servo motor driving, maintenance free;
2. Accuracy ball screw bar and accuracy positioning;
3. With large guiding travel;
4. Roller length and width can be custom made;
5. Roller surface treatment can be anodized, rubber and cork leather;
6. Manual or air fixture of the cutting station is optional.
Web guide system Product Features:
1. Brushless DC servo motor driving, maintenance free;
2. Accuracy ball screw bar and accuracy positioning;
3. With large guiding travel;
4. Roller length and width can be custom made;
5. Roller surface treatment can be anodized, rubber and cork leather;
6. Manual or air fixture of the cutting station is optional.
All-In-One Web Guide Control System Data:
|
Technical Data (Web Guide Control system)
|
|
|
|
Power input
|
AC220V /80W
|
|
|
Roller diameter
|
80mm / custom made
|
|
|
Roller length
|
650mm / custom made
|
|
|
Roller width
|
430mm / custom make
|
|
|
Max. driving speed
|
40mm/S
|
|
|
Environment temperature
|
-10~60°C, below RH90%
|
|
|
Reaction time
|
0.5mS
|
|
|
Servo power
|
80W
|
|
|
Accuracy
|
0.1mm
|
|
|
Web Guide range (degree°)
|
±17
|
|
|
Model No.
|
Roller Length L (mm)
|
Roller Dia. D(mm)
|
Roller Width C (mm)
|
Slide Block Height B (mm)
|
Base Length Y (mm)
|
Box body size C(mm)
|
Roller frame length D(mm)
|
Max. Tension (N)
|
Mounting hole size A(mm)
|
|
PG-200A
|
200
|
50
|
230
|
25
|
260
|
312
|
224
|
300
|
185
|
|
PG-250A
|
250
|
50
|
230
|
25
|
260
|
312
|
274
|
300
|
185
|
|
PG-300A
|
300
|
60
|
260
|
25
|
310
|
312
|
324
|
300
|
185
|
|
PG-350A
|
350
|
60
|
260
|
25
|
360
|
412
|
374
|
300
|
285
|
|
PG-400A
|
400
|
60
|
320
|
35
|
410
|
412
|
424
|
500
|
285
|
|
PG-450A
|
450
|
60
|
320
|
35
|
460
|
512
|
474
|
500
|
385
|
|
PG-500A
|
500
|
60
|
320
|
35
|
510
|
512
|
524
|
500
|
385
|
|
PG-600A
|
600
|
60
|
320
|
35
|
610
|
612
|
624
|
500
|
485
|
|
PG-700A
|
700
|
60
|
320
|
35
|
610
|
712
|
724
|
500
|
585
|
System application
EPC web guide control system - Operation Interface Display
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
