Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1480MM*1400MM*2098MM
-
Weight (KG):
-
2200
-
Power (kW):
-
14.75
-
Product name:
-
Spring Coiler
-
Keyword:
-
Spring Machine Tools
-
Function:
-
Spring Forming
-
Machine Type:
-
Cnc
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
vinston
-
Marketing Type:
-
24 year new version
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1480MM*1400MM*2098MM
-
Weight (KG):
-
2200
-
Power (kW):
-
14.75
-
Product name:
-
Spring Coiler
-
Keyword:
-
Spring Machine Tools
-
Function:
-
Spring Forming
-
Machine Type:
-
Cnc
Product Paramenters
|
MODEL
|
|

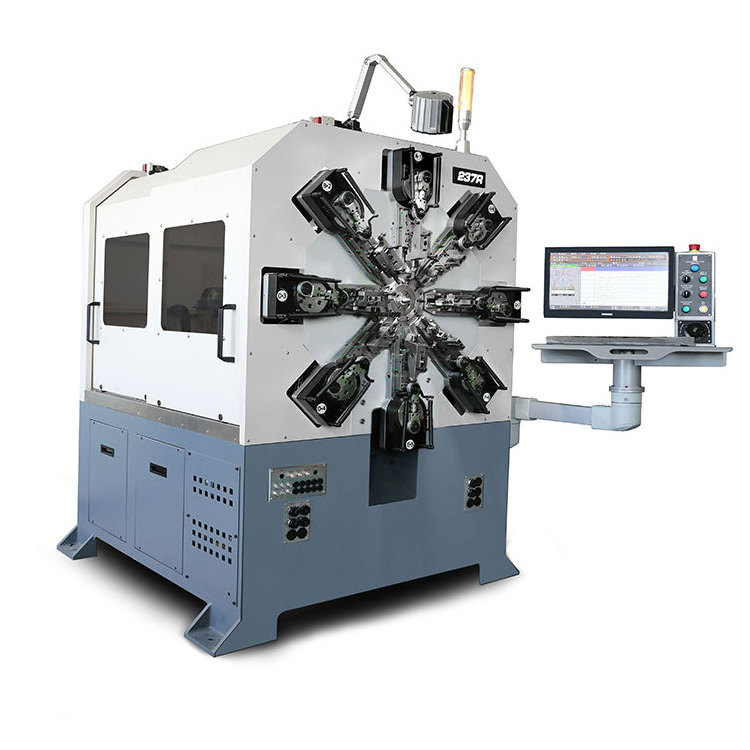

CMM-12-237R Transfer Machine
|
CMM-12-420R Wire transfer machine
|
|||
|
Wire Diameter
|
|
0.4-2.3mm
|
1.2-4.0mm
|
|||
|
Max.Wire Feed
|
|
10000.00mm
|
10000.00mm
|
|||
|
Min.Wire Feed
|
|
0.01mm
|
0.01mm
|
|||
|
Max.Wire Feed Length
|
|
Infinite length
|
Infinite length
|
|||
|
Number Of Axes
|
|
12 axes (including servo angle bender/Spinner)
|
12 axes (including servo angle bender/Spinner)
|
|||
|
Power
|
|
14.75KW
|
24.9KW
|
|||
|
Voltage
|
|
380V
|
380V
|
|||
|
Software
|
|
Pentium Industrial Computer/Intel
|
Pentium Industrial Computer/Intel
|
|||
|
Program Storage
|
|
Over 2000
|
Over 2000
|
|||
|
Voltage Regulator Power
|
|
15000W
|
20000W
|
|||
|
Air Compressor System |
Air pressure
|
5-6KG/cm
|
5-6KG/cm
|
|||
|
|
Air cylinder
|
3 pieces
|
3 pieces
|
|||
|
Dimensions |
Depth
|
1480mm
|
2150mm
|
|||
|
|
Width
|
1400mm
|
1900mm
|
|||
|
|
Height
|
2098mm
|
2070mm
|
|||
|
Machine Weight
|
|
2200KG
|
|
|||
|
The above configuration parameters are subject to change without prior notice, please refer to the actual situation.
|
|
|
|
|||
Products Description
Supporting equipment
The spring machine feeding frame, combined with the computer spring machine, can achieve two speed controls: jog or automatic. When the automatic feeding frame breaks or gets stuck, the entire feeding system will automatically stop, causing the spring machine to stop working and emit an alarm sound. Coupled with Yongteng's spring machine, the feeding speed can be automatically adjusted according to the speed of producing spring.
installation diagram
Reference size of machine footprint
