Video wall processor 2x2,Led video wall,HDMI 4x4 matrix with multiviewer function

Product Description

HDMI &VGA&AV mixed inputs

Video Processing Matrix switcher 4x4

Description

The MVP-4400+ is a high-performance seamless switching output and multi-format inputs 4x4 matrix switcher,4 multi-format inputs supports digital video signals and analog video signals,

and 4 HDMI outputs simultaneously with seamless switching function.The seamless switching mode: cut, fade in/fadeout, blinds and other 16 different effects; the Multi-format matrix switcher adopts the advanced digital

technology,with scaler function, to manage and achieve a variety of signal formats output

signal seamlessly switch to a perfect visual effects. It comes  with infrared matrix functions, analog video signal inputs with embedded audio functions. Diverse and flexible control modes, via the front panel button, remote

control,RS-232 and TCP/IP control.
To configure as a video wall processor, the matrix switcher is able to zoom in one input image four times to the outputs in resulting as a 2x2 Video

Wall. To configure as a Multi-windows processor, the matrix switcher can mix inputs with any combinations to

one image, and transfer to all 4 outputs.

Features

Compliant HDMI1.3, HDCP1.3 and DVI1.0

Input video suppor ts HDMI, VGA and C-video

Supports input resolutions :

HDMI: 480i to 1080p

VGA:1920 x 1080P@60Hz, 1360 x 768P@60Hz,

1280 x 1024P@60Hz, 1024 x 768P@60Hz,

1280 x 720P@60Hz,1280 x 768P@60Hz, 800 x 600@60Hz,

640 x 480P@60Hz

CV: Supports PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats

Supports output resolutions :1920x1080P@60Hz

Supports seamless switching output,optional seamless switching mode:fast switching,fade in/fade out,blinds and other                       16 different effects

The RS-232 for the firmware update

Supports RS-232, remote control, on-panel control and TCP/IP Control

Supports smart EDID management

Picture Adjustment Settings

Automatically adjust the VGA input video

Supports power-off memory

Specification

Input Ports                                            4×HDMI, 4xVGA, 4xRCA, 1×RS-232, 1xRJ-45(Control), 5×IR INPUT, 4xAudio

Output Ports                                         4×HDMI, 4xIR OUTPUT

Input Resolutions                               Supports  Up to 1920x1080P@60Hz

Output Resolutions                            Support Up to 1920x1080P@60Hz

Control                                                   IR , RS-232 , TCP/TP , Buttons

ESD Protection                                     Human-body Model:

± 8kV (Air-gap discharge)

± 4kV (Contact discharge)

Power Supply 12 V/ 2.5 A DC (US/EU standards,

CE/FCC/UL certified)

Dimensions 4 40 mm (W)×2 00 mm (D)× 44.5 mm (H)

Weight 2380 g

Chassis Material                                 Metal

Silkscreen Color                                 Black

Operating Temperature                    0 ºC~40 ºC/32 ºF~104 ºF

Storage Temperature                         −20 ºC~60 ºC/−4 ºF~140 ºF

Relative Humidity                               20~90 % RH (non-condensing)

Power Consumption 13.5 W (Max)/1.2W(Standby)

Packing List

HDMI 4 x4 mixed inputs seamless matrix switcher  1pcs

12 V/ 2.5 A DC power adaptor 1pcs

Operation Manual                             1pcs

Wideband IR Tx cable                      4pcs

Wideband IR Rx cable                        5pcs

Mixed Matrix IR Remote                    1pcs

Mounting ears                                        2pcs

RS232 cable                                          1pcs

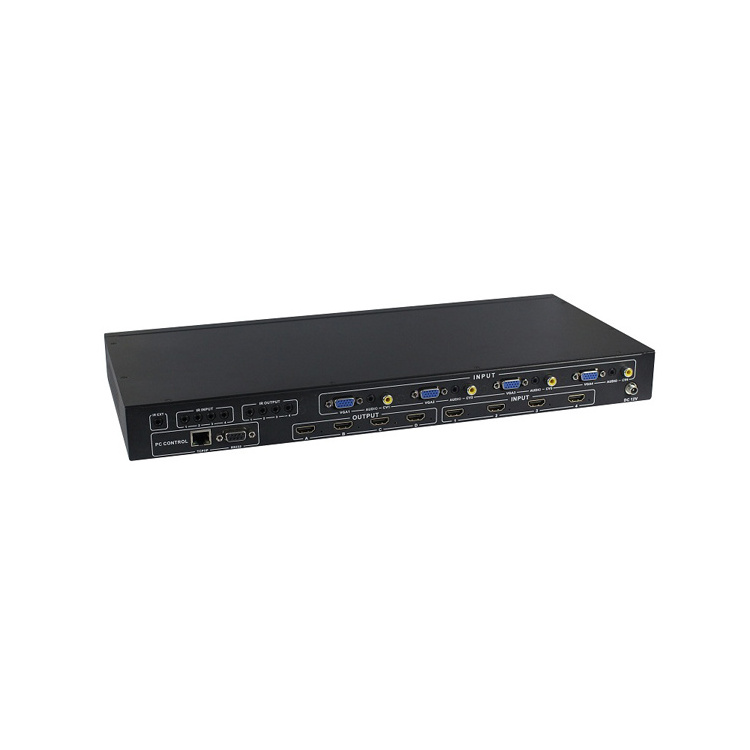

Product Pictrures

Picture outside Picture (POP) Displaying

M ode 1:

Mode 2:

Mode 3:

Picture in Picture (P I P) Displaying

Mode 4:

Diagram of Video Wall Displaying

4x Zoom-in: It means matrix switcher is able to zoom in the input image and spilt to 4 parts, and then full-screen display on the output displayers one to one.

Connection Diagram
