Quick Details
-
Power Source:
-
Electric
-
Place of Origin:
-
China
-
Limit of the tolerance( OFF):
-
±3.5℃
-
Limit of the tolerance( ON):
-
±4℃
-
Max. OT:
-
125℃
-
Rated current and voltage:
-
250V 25A
-
Resistance Between Terminals:
-
Below 50MΩ
-
Min. Diff:
-
11℃
-
Class of temperature characteristics:
-
Normal close / open
-
Tmax:
-
185℃ (Long period) ; 215℃(Short period: Less than 15min)
-
Life Cycle:
-
30000 Times
Quick Details
-
After-sales Service Provided:
-
Return and Replacement
-
Warranty:
-
1 Year
-
Application:
-
Outdoor, Commercial, Household
-
Power Source:
-
Electric
-
Place of Origin:
-
China
-
Limit of the tolerance( OFF):
-
±3.5℃
-
Limit of the tolerance( ON):
-
±4℃
-
Max. OT:
-
125℃
-
Rated current and voltage:
-
250V 25A
-
Resistance Between Terminals:
-
Below 50MΩ
-
Min. Diff:
-
11℃
-
Class of temperature characteristics:
-
Normal close / open
-
Tmax:
-
185℃ (Long period) ; 215℃(Short period: Less than 15min)
-
Life Cycle:
-
30000 Times

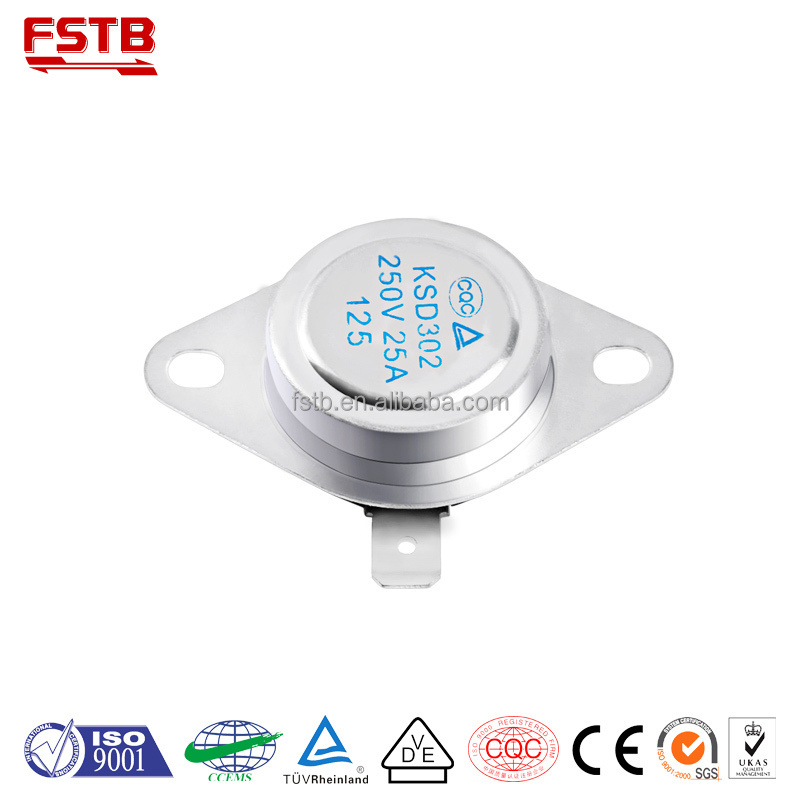

KSD302 25A Big Current Bakelite overheating protection electric heater thermostats with CQC/TUV from FSTB(7/8")
KSD302 series snap-action thermostat is a kind of hermetically sealed high current bimetal thermostat (7/8" disc). It is of single-pole single-throw structure and works under resistive load. Owing to high loading capacity, the product series is appropriately used in high-duty electric appliances to provide overheating protection.
Parameters:
|
Use |
Temperature control/Overheat protection |
|
Appliance |
Heater(heater thermostat) |
|
Reset type |
Automatic |
|
Base material |
resist heat resin base |
|
Amperage |
25A |
|
Max. Operating Temperature |
125 ℃ |
|
Differential |
|
|
Min. Diff |
11 ℃ |
|
Tolerance |
|
|
Protection
|
IP00 |
|
Contact material |
Silver/Gold |
|
Dielectric Strength |
Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover. |
|
Insulation
|
With a DC 500V megger, borne DC 500V, the tested value is over 10M W . |
|
Resistance
|
Below 50m W |
|
Temp. characteristics: |
Normal type: OFF temperature higher than ON temperature.(Normal close)
|
|
Maximum
|
185
℃
(Long period)
|
|
Diameter of
|
( 7/8″ ) |
|
Approvals |
UL/CQC/TUV |
|
Terminal type |
|
|
Cover/Bracket |
Dimension of main body:
Safety certificate:
|
Max. OT |
Life |
250V 25A |
|
125°C |
30,000 |
CQC , TUV |
Covers and terminals:
Seven major series of snap-action thermostats are as follows:
|
Series |
Diameter of bimetal disc |
Max. operating Temp. |
Max. rated current |
Switch structure |
Service purposes |
|
KSD301 |
F 12.8mm ( 1/2 ″) |
280 ° C |
16A |
SPST |
Temperature control and overheating protection for low-duty electric heating applications. |
|
KSD302 |
F 22.25mm ( 7/8 ″) |
125 ° C |
25A |
SPST |
Temperature control and overheating protection for high-duty electric heating applications. |
|
KSD303 |
F 12.8mm ( 1/2 ″) |
50 ° C |
10A |
SPST |
Defrosting and temperature compensation for refrigerator. |
|
KSD305 |
F 22.25mm ( 7/8 ″) |
||||
|
KSD306 |
F 22.25mm ( 7/8 ″) |
120 ° C |
30A |
DPST |
Temperature control and overheating protection for electric heating applications such as water heater. |
|
KSD308 |
F 19mm ( 3/4 ″) |
100 ° C |
16A |
DPST |
Temperature control and overheating protection for electric heating applications such as water heater. |
|
KSD309 |
F 12.8mm ( 1/2 ″) |
280 ° C |
16A |
SPST |
Temperature control and overheating protection for high temperature heating applications. |
Product recommendation:
NOTE:
TERMINALS AND COVERS OF THE SNAP-ACTION THERMOSTAT CAN BE CUSTOMIZED UNDER YOUR REQUEST. PLEASE REFER TO OUR SPECIFICATION. WELCOME TO OUR WEBSITE TO GET MORE INFORMATION ABOUT FSTB THERMOSTATS.
( http://www.thermostat-gb.com/ )
