Quick Details
-
Product name:
-
8x8 HDMI Matrix
-
HDCP version:
-
1.4
-
Input:
-
8*HDMI Type A , 24/26 AWG HDMI cable up to 10M
-
Resolution:
-
Up to 3840x2160@30Hz/ 1080P@60Hz 3D
-
Data rate:
-
10.2 Gbps
-
Output:
-
8*HDMI Type A , 24/26 AWG HDMI cable up to 20M
-
Casing material:
-
Metal
-
Product dimensions:
-
440(L) x 150 (W) x 45 (H) mm
-
Item weight:
-
2000 g
-
Power supply:
-
DC 12V 2A
Quick Details
-
Model Number:
-
HMA0808A30
-
Brand Name:
-
TESmart
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
8x8 HDMI Matrix
-
HDCP version:
-
1.4
-
Input:
-
8*HDMI Type A , 24/26 AWG HDMI cable up to 10M
-
Resolution:
-
Up to 3840x2160@30Hz/ 1080P@60Hz 3D
-
Data rate:
-
10.2 Gbps
-
Output:
-
8*HDMI Type A , 24/26 AWG HDMI cable up to 20M
-
Casing material:
-
Metal
-
Product dimensions:
-
440(L) x 150 (W) x 45 (H) mm
-
Item weight:
-
2000 g
-
Power supply:
-
DC 12V 2A
Product Description

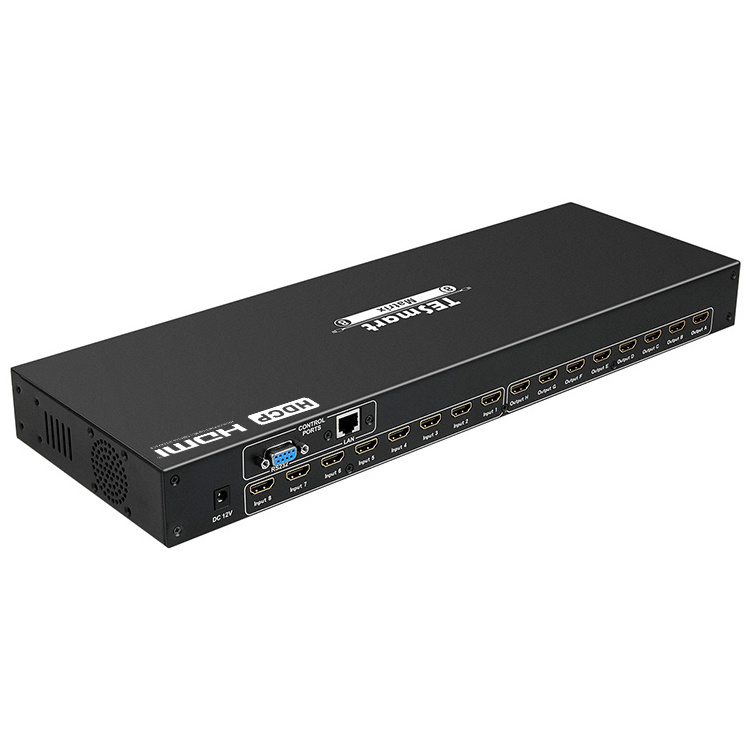

# HMA0808A30
HDMI Matrix can greatly facilitate your management of audio and video devices. If you have multiple sources and display devices like game consoles, streaming boxes, projectors and monitors, our HDMI Matrix can help you match your devices at will.
Features:
⭐All the HDMI outputs can share same input or select standalone input
⭐Support resolution up to 3840x2160@30Hz
⭐HDMI 1.4 compliant
⭐HDCP 1.4 compliant
⭐Support PCM, Dolby AC3, DTS 5.1 and DSD audio format
⭐Matrix status could be memorized after power down, automatically restore previous matrix status after next power on
⭐Smart EDID management, make it compatible with most display devices
⭐Support 8 configurable user preset connections
⭐Easy to control matrix via IR receiver, front panel key and PC (via RS232 port or LAN port)
Packing List：
1 * 8x8 HDMI Matrix
1 * IR Remote Control
1 * IR Extension Cable
1 * DC 24V Power Adapter
2 * Rack-ears
1 * User Manual
Specification
|
HMA0808A30
|
|
8x8 HDMI Matrix
|
|
|||
|
Functionality
|
|
|
|
|||
|
Port selection
|
|
Front panel buttons
|
Yes
|
|||
|
|
|
Console commands
|
RS232 / IP
|
|||
|
|
|
IR remote control
|
Yes
|
|||
|
LCD Display
|
|
24x2 characters
|
|
|||
|
OSD
|
|
No
|
|
|||
|
Smart EDID
|
|
Yes
|
|
|||
|
Technical
|
|
|
|
|||
|
Resolution
|
|
Up to 3840x2160@30Hz/ 1080P@60Hz 3D
|
|
|||
|
HDCP
|
|
No
|
|
|||
|
Data rate
|
|
10.2 Gbps
|
|
|||
|
Input
|
|
8*HDMI Type A, 24/26 AWG HDMI cable up to 10M
|
|
|||
|
Output
|
|
8*HDMI Type A, 24/26 AWG HDMI cable up to 20M
|
|
|||
|
ESD protection
|
|
Human body model - ±8kV (Air-gap discharge)
|
|
|||
|
Mechanical
|
|
|
|
|||
|
Casing material
|
|
Metal
|
|
|||
|
Power supply
|
|
DC 12V 2A
|
|
|||
|
Operating/Storage temperature
|
|
0 to 70 degree/-40 to 85 degree
|
|
|||
|
Operating Humidity
|
|
10 to 90% RH
|
|
|||
|
Product
|
|
Dimension
|
440(L) x 150 (W) x 44.5 (H) mm
|
|||
|
|
|
|
|
|||
|
|
|
Weight
|
1861g
|
|||
|
Item
|
|
Dimension
|
488 (L) x 123 (W) x 186 (H) mm
|
|||
|
|
|
|
|
|||
|
|
|
Weight
|
2321g
|
|||
|
Carton
|
|
Dimension
|
505 (L) x 280 (W) x 395 (H) mm
|
|||
|
|
|
|
|
|||
|
|
|
Quantity
|
4pcs
|
|||
|
|
|
Total Weight
|
10.034kg
|
|||
