Quick Details
-
Brand Name:
-
SENTEC
-
Model Number:
-
FST310
-
Operating Temperature:
-
-20~80℃
-
Product name:
-
water flow switch
-
Output Signal:
-
PNP, NPN,Relay
-
Connection:
-
M12 Connector /2m Cable (option)
-
Medium:
-
water , oil , gas
-
Pressure:
-
25bar
-
Protection Grade:
-
IP67
-
Medium temperature:
-
-20 ° C ~ 80 ° C
-
Application:
-
Electronic Flow Switch
-
Power supply:
-
24±20%VDC or 230V±15%VAC
-
Keywords:
-
Electronic Flow Switch
-
Certification:
-
CE
Quick Details
-
Media Type:
-
Liquid
-
Flow Rate:
-
..150cm/s( water)
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
SENTEC
-
Model Number:
-
FST310
-
Operating Temperature:
-
-20~80℃
-
Product name:
-
water flow switch
-
Output Signal:
-
PNP, NPN,Relay
-
Connection:
-
M12 Connector /2m Cable (option)
-
Medium:
-
water , oil , gas
-
Pressure:
-
25bar
-
Protection Grade:
-
IP67
-
Medium temperature:
-
-20 ° C ~ 80 ° C
-
Application:
-
Electronic Flow Switch
-
Power supply:
-
24±20%VDC or 230V±15%VAC
-
Keywords:
-
Electronic Flow Switch
-
Certification:
-
CE
Related Products
Product Paramenters

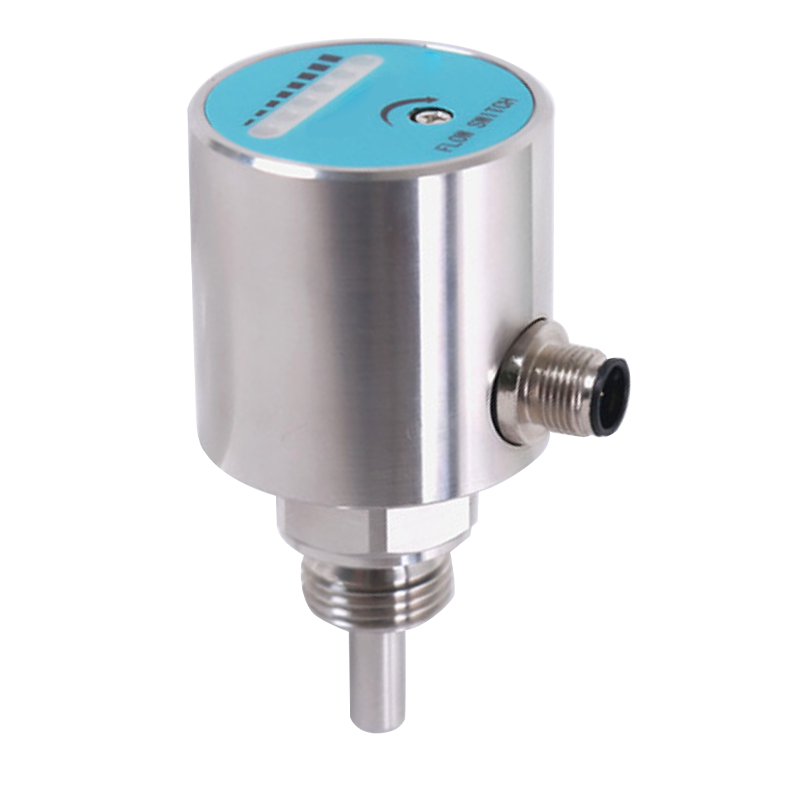

SenTec FST310 electronic flow switch based on the thermal principle, the sealed probe contains two resistors, one of which is not heated as the detection resistance and the other is not heated as the reference resistance. When the mecum flows, the heat on the heating resistance is taken away, the resistance value is changed, and the difference between the two resistors is used as the basis for judging the velocity. No moving parts, maintenance-free, easy to install, one type is suitable for a variety of pipe diameter requirements, switch volume continuously adjustable, very low pressure loss, compact structure, LED display flow trend and switch status.
FST310 Gas-liquid dual type electronic flow switch is used for pneumatic and hydraulic systems, can be used for circulating water, cutting fluid and lubricating oil flow detection and pump idling protection.
FST310 Gas-liquid dual type electronic flow switch is used for pneumatic and hydraulic systems, can be used for circulating water, cutting fluid and lubricating oil flow detection and pump idling protection.
|
SPECIFICATION
|
|
|
|
Flow range
|
1...150cm/s(water)，3...300cm/s(oil)，20...2000cm/s(air)
|
|
|
Response time
|
1-13s, typical values 2s
|
|
|
Turn on the current
|
Max. 400mA(PNP or NPN), Max. 4A(Relay)
|
|
|
No-load current
|
Max. 80mA
|
|
|
Signal output
|
PNP, NPN, relay, Normally open+normally closed (SPDT)
|
|
|
Flow indicator
|
LED row (6)
|
|
|
Pressure range
|
100bar
|
|
|
Power supply
|
24±20%VDC or 230V±15%VAC
|
|
|
Medium temperature
|
-20 ° C ~ 80 ° C
|
|
|
Connection mode
|
M12 plug-in/direction attachment line
|
|
|
Material
|
Stainless steel
|
|
|
Protection grade
|
IP67
|
|
