Quick Details
-
Optical Resolution:
-
4mil
-
Scan Speed:
-
500 scans/second
-
Brand Name:
-
YHDAA
-
Place of Origin:
-
Guangdong, China
-
Material:
-
ABS+PC
-
Interface type:
-
Bluetooth+USB+2.4G wireless
-
Style:
-
2d
-
Transmission mode:
-
Bluetooth/2.4G/Wired
-
Storage:
-
10000 barcodes
-
Sensor:
-
640*480 CMOS
-
Battery:
-
1800mAh
-
Bit error rate:
-
1/5million
-
Printing contract:
-
≥25%
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
CMOS
-
Max Paper Size:
-
A4
-
Optical Resolution:
-
4mil
-
Scan Speed:
-
500 scans/second
-
Brand Name:
-
YHDAA
-
Place of Origin:
-
Guangdong, China
-
Material:
-
ABS+PC
-
Interface type:
-
Bluetooth+USB+2.4G wireless
-
Style:
-
2d
-
Transmission mode:
-
Bluetooth/2.4G/Wired
-
Storage:
-
10000 barcodes
-
Sensor:
-
640*480 CMOS
-
Battery:
-
1800mAh
-
Bit error rate:
-
1/5million
-
Printing contract:
-
≥25%
Video Description >>>>>>YHD-1100DB Barcode Scanner
Products Description
More than 3 colors to choose from freely
1D Laser / 1D CCD / 2D, Wireless / Wired / Bluetooth
Support customization !!!
Just tell us your requirements
>>When placing the purchase order, please mark the colour you require.
>>If there is no remark, color random shipments of goods.
>>If there is no remark, color random shipments of goods.
>>
Contact us for Wholesale Price
Product Paramenters
|

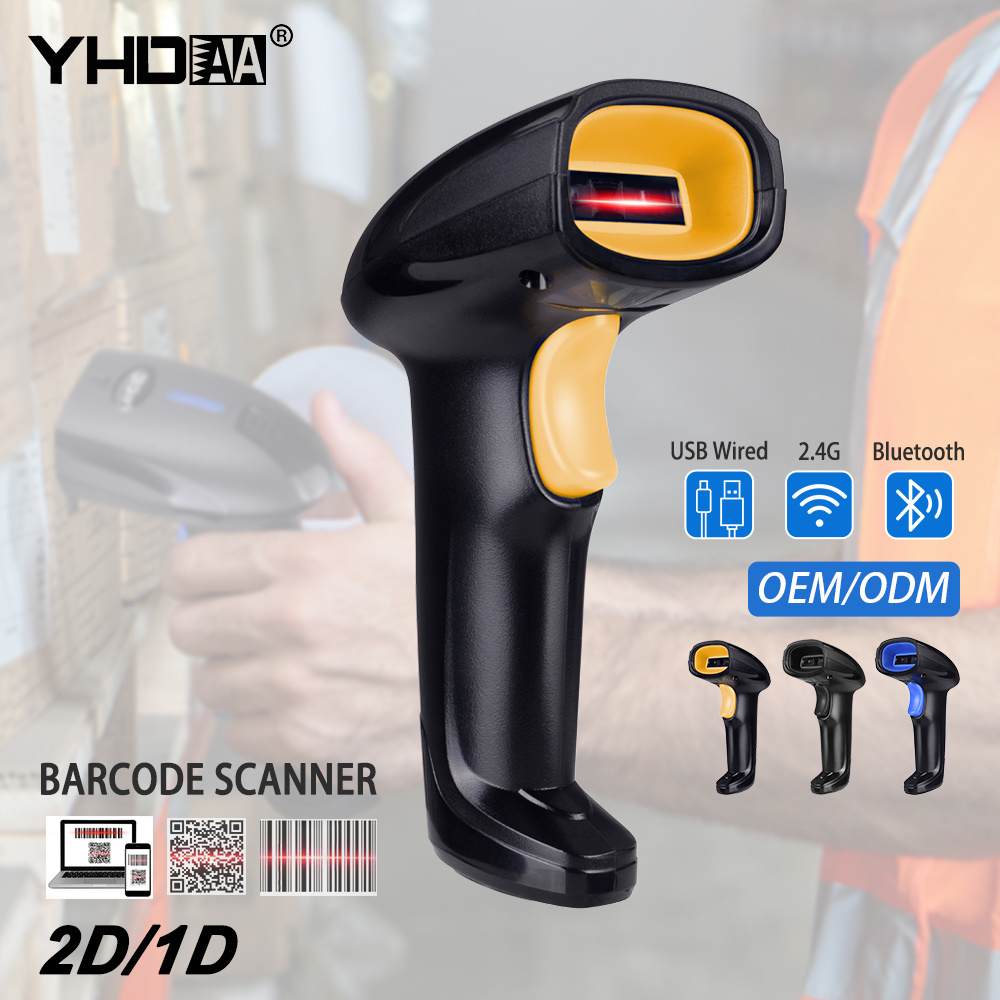

Model: YHD-1100DB 2D Wireless Bluetooth Barcode Scanner
|
|
|
|
|
||||
|
Transmission mode
|
Bluetooth/2.4G/Wired
|
Storage
|
10,000 barcodes
|
|
||||
|
Distance
|
50m/100m/1.5m
|
Sensor
|
640*480 CMOS
|
|
||||
|
CPU
|
ARM 32-bit Cortex
|
Light aimer
|
617nm LED
|
|
||||
|
Indication
|
Buzzer & LED
|
Anti-inference
|
0-100000Lux Max
|
|
||||
|
Resolution
|
4mil
|
Illumination
|
6500K LEDs
|
|
||||
|
Decoding speed
|
500scans/sec
|
Interface
|
USB，USB-COM
|
|
||||
|
Printing Contract
|
≥25%
|
Material
|
ABS+PC
|
|
||||
|
Button life
|
8000,000 times
|
Battery
|
3.7V-1800mAh
|
|
||||
|
Trigger Mode
|
Handheld,Continuous,Auto-Induction
|
Working current
|
38mA--185mA
|
|
||||
|
Working time
|
3 to 7 days
|
Standby current
|
30mA
|
|
||||
|
Charging time
|
3-5 hours
|
Drop test
|
2m
|
|
||||
|
Decode Capability
|
1D：UPC-A，UPC-E，EAN-8，EAN-13，Code 128， Code 39，Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of 5，Standard 2 of 5,Coda bar，MSI Plessey，RSS，etc.
|
2D: QR Code, Data Matrix，PDF417，Aztec code，Maxicode，etc.
|
Supports decode most of 1D 2D QR barcodes on labels, paper and screen
Work with Windows XP/7/8/10, Mac OS, Windows Mobile, Android OS, iOS, Linux
|
|
||||
2D Bluetooth Barcode Scanner Compatible Android/IOS/Windows/Mac Bluetooth Barcode Reader
Features
* Color：Black/ Blue
/
Yellow
.
* Bluetooth/2.4G/Wired Mode.
* Support reading bar codes from screen.
* 32-Bit ARM processor and scan speed 500scans/sec.
* Powerful decode ability, fast scanning 1D/2D barcodes.
* Supports Handheld / Continuous / Auto-Induction , 3modes for option
* Support for smart phones/tablets/computers; compatible for Windows /Android /IOS.
* Built-in 1800mAh Battery, it can support 20 hours Continuous scanning and 2 months standby after 4hours full charge.
* Support turn on or off the sound, hide/add custom prefix/suffix digits, delete character, add keyboard keys (TAB, CR&LF, etc.)
* Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
* Can be customized according to customer demand.
