Factory Price Insert Type 2CH 4CH 8CH 12CH 16CH 18CH CWDM passive Mux Demux

Factory Price Insert Type 2CH 4CH 8CH 12CH 16CH 18CH CWDM passive Mux Demux

FOB Reference Price: Get Latest Price

≥1 Pieces

US $12

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: OEM

Use:: WDM Transmission, Metro and long-haul networks

Warranty Time:: 3 Years

Channels:: 2~18 Channels

Total Ports:: 2~18 ports

Channel wavelength:: CWDM

Channel Spacing (nm):: 20nm

Channel Passband(@-0.5dB bandwidth (nm):: >0.25

Insertion Loss (dB):: 4 channels ≤1.8; 8 channels ≤2.5; 16 channels ≤ 4.0

Return Loss (dB):: >45

Number of Fiber:: Dual Fiber

Channel Uniformity (dB):: <=1.0

Directivity (dB):: >50

Quick Details

Type:: CWDM System

Model Number:: HT6000-CWDM Mux Demux

Place of Origin:: Guangdong, China

Brand Name:: OEM

Use:: WDM Transmission, Metro and long-haul networks

Warranty Time:: 3 Years

Channels:: 2~18 Channels

Total Ports:: 2~18 ports

Channel wavelength:: CWDM

Channel Spacing (nm):: 20nm

Channel Passband(@-0.5dB bandwidth (nm):: >0.25

Insertion Loss (dB):: 4 channels ≤1.8; 8 channels ≤2.5; 16 channels ≤ 4.0

Return Loss (dB):: >45

Number of Fiber:: Dual Fiber

Channel Uniformity (dB):: <=1.0

Directivity (dB):: >50

Products Description

Description

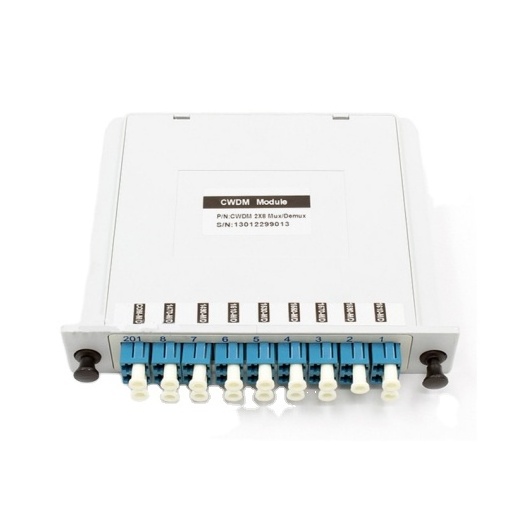

The 2~18 channels CWDM passive MUX and DEMUX modules deliver the benefits of a Coarse Wave Division Multiplexer in a fully passive solution .With matching MUX/DEMUX units placed at each end of an optical link, up to 2~18 channels can be combined and transmitted over a single-mode fiber trunk. It covers all channels from 1270nm to 1610nm in 20nm increments

Features

Multiplexing of up to 2~18 channels Low Insertion Loss Wide passband High channel Isolation High Stability and reliability Plastic insert structure, fits in16-slot 3U chassis Compliant to ITU-T G.694.2 standard and Telcordia GR1209, GR122 Standard 2~18-channel CWDM band 1270nm ~ 1610nm, 20nm spacing Based on thin-film filter technology Passive, no electric power required. (MTBF ca. 500 years)

Application

CWDM transmission Metro and long-haul networks Point-to-point CWDM fiber optimization Linear add/drop CWDM fiber optimization

Ordering Information

Model	Channel	ILoss（dB）			Isolation(dB)			Wavelength (nm)
Model	Channel			MU/DMU	MU+DMU	Adjacent	Non-adjacent	Wavelength (nm)
HT6000-ODM18	18CH MUX and DEMUX	≤3.8	≤4.8	30	40	1270~1610/1271~1611
HT6000-OM18	18CH MUX	≤3.8	≤4.8	30	40	1270~1610/1271~1611
HT6000-OD18	18CH DEMUX	≤3.8	≤4.8	30	40	1270~1610/1271~1611
HT6000-ODM16	16CH MUX and DEMUX	≤3.5	≤4.5	30	40	1270~1610/1271~1611(Any 16CH)
HT6000-OM16	16CH MUX	≤3.5	≤4.5	30	40	1270~1610/1271~1611(Any 16CH)
HT6000-OD16	16CH DEMUX	≤3.5	≤4.5	30	40	1270~1610/1271~1611(Any 16CH)
HT6000-ODM08	8CH MUX and DEMUX	≤3	≤3.5	30	40	1270~1610/1271~1611(Any 8CH)
HT6000-OM08	8CH MUX	≤3	≤3.5	30	40	1270~1610/1271~1611(Any 8CH)
HT6000-OD08	8CH DEMUX	≤3	≤3.5	30	40	1270~1610/1271~1611(Any 8CH)
HT6000-ODM04	4CH MUX and DEMUX	≤1.8	≤2.5	30	40	1270~1610/1271~1611(Any 4CH)
HT6000-OM04	4CH MUX	≤1.8	≤2.5	30	40	1270~1610/1271~1611(Any 4CH)
HT6000-OD04	4CH DEMUX	≤1.8	≤2.5	30	40	1270~1610/1271~1611(Any 4CH)

Questions and Answers

Q1: How many channel for the DWDM can achieve? A1: DWDM wavelengths are packed tightly together over the C-band, In 100GHz grid(0.8nm) can achieve up to 48 wavelengths, In 50GHz grid(0.4nm) can achieve96 wavelengths.
