Quick Details
-
Warranty:
-
3years
-
Brand Name:
-
Cinco
-
Model Number:
-
CNCC10W
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
340*220*1mm
-
Certificate:
-
CE
Quick Details
-
Cell size:
-
125mmx125mm
-
Type:
-
PET / Epoxy, small solar panel
-
Panel Efficiency:
-
10%
-
Warranty:
-
3years
-
Brand Name:
-
Cinco
-
Model Number:
-
CNCC10W
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
340*220*1mm
-
Certificate:
-
CE
Products Description

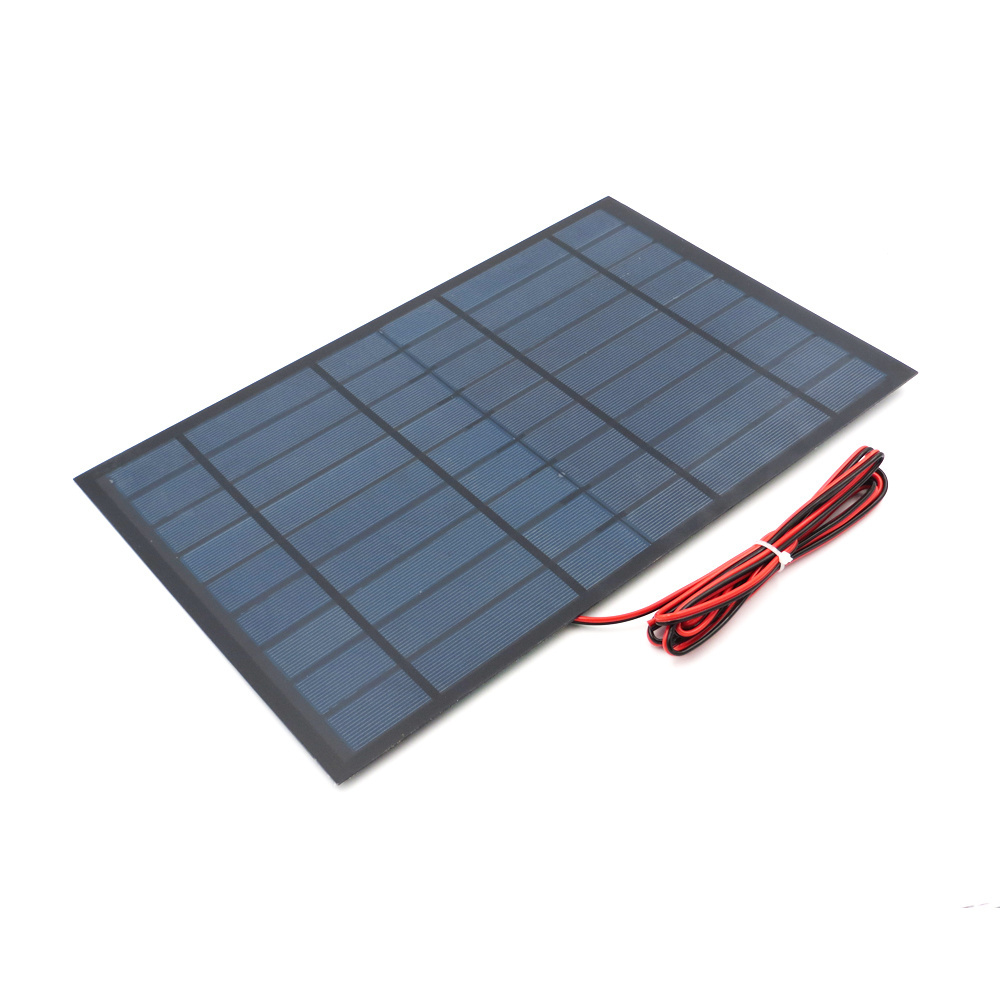

PET Solar Panel
Epoxy/PET Solar Panel is a kind of solar panel, but the encapsulation method is different. ... Due to the small size, the encapsulation method such as glass laminated or PET laminated solar panel is generally not used, but the solar cell sheet is covered with epoxy/PET resin and bonded with the PCB circuit board.
Product Paramenters
The following model all in stock, fast delivery.
Accept customization.
Please contact the sales to quote.
|
Model
|
Type
|
Maximum Power at STC
(Pmax)
|
Optimum Operating Voltage
(Vmp)
|
Optimum Operating Current
(Imp)
|
Open-Circuit Voltage
(Voc)
|
Short-Circuit Current
(Isc)
|
Dimension
(mm)
|
|
CNC53X18-0.5
|
Epoxy
|
0.05W
|
0.5V
|
100mA
|
0.6V
|
110mA
|
53*18
|
|
CNC35X25-1
|
Epoxy
|
0.08W
|
1V
|
80mA
|
1.2V
|
89mA
|
35*25
|
|
CNC60X60-1
|
Epoxy
|
0.5W
|
1V
|
500mA
|
1.2V
|
558mA
|
60*60
|
|
CNC60X70-1.5
|
Epoxy
|
0.45W
|
1.5V
|
300mA
|
1.8V
|
332mA
|
60*70
|
|
CNC60X80-1.5
|
Epoxy
|
0.65W
|
1.5V
|
435mA
|
1.8V
|
483mA
|
60*80
|
|
CNC50X50-2
|
Epoxy
|
0.2W
|
2V
|
100mA
|
2.4V
|
111mA
|
50*50
|
|
CNC60X60-2
|
Epoxy
|
0.3W
|
2V
|
150mA
|
2.4V
|
167mA
|
60*60
|
|
CNC50X80-2
|
Epoxy
|
0.6W
|
2V
|
300mA
|
2.4V
|
335mA
|
50*80
|
|
CNC55X55-3
|
Epoxy
|
0.36W
|
3V
|
120mA
|
3.7V
|
133mA
|
55*55
|
|
CNC60X55-3
|
Epoxy
|
0.45W
|
3V
|
150mA
|
3.7V
|
166mA
|
60*55
|
|
CNC60X120-3.5
|
Epoxy
|
0.9W
|
3.5V
|
250mA
|
4.3V
|
287mA
|
60*120
|
|
CNC55X55-4
|
Epoxy
|
0.24W
|
4V
|
60mA
|
4.9V
|
67mA
|
55*55
|
|
CNC60X80-4
|
Epoxy
|
0.6W
|
4V
|
150mA
|
4.9V
|
167mA
|
60*80
|
|
CNC70X70-4
|
Epoxy
|
0.64W
|
4V
|
160mA
|
4.9V
|
177mA
|
70*70
|
|
CNC60X90-5
|
Epoxy
|
0.7W
|
5V
|
150mA
|
6.1V
|
156mA
|
60*90
|
|
CNC90X70-5
|
Epoxy
|
0.8W
|
5V
|
160mA
|
6.1V
|
177mA
|
90*70
|
|
CNC100X70-5
|
Epoxy
|
1.0W
|
5V
|
200mA
|
6.1V
|
222mA
|
100*70
|
|
CNC110X69-5
|
Epoxy
|
1.2W
|
5V
|
250mA
|
6.1V
|
268mA
|
110*69
|
|
CNC130X150-5
|
Epoxy
|
2.5W
|
5V
|
500mA
|
6.1V
|
554mA
|
130*150
|
|
CNC165X165-5
|
Epoxy
|
4.2W
|
5V
|
840mA
|
6.1V
|
937mA
|
165*165
|
|
CNC60X60-5.5
|
Epoxy
|
0.44W
|
5.5V
|
80mA
|
6.7V
|
89mA
|
60*60
|
|
CNC80X55-5.5
|
Epoxy
|
0.55W
|
5.5V
|
100mA
|
6.7V
|
111mA
|
80*55
|
|
CNC65X65-5.5
|
Epoxy
|
0.6W
|
5.5V
|
109mA
|
6.7V
|
122mA
|
65*65
|
|
CNC90X80-5.5
|
Epoxy
|
0.88W
|
5.5V
|
160mA
|
6.7V
|
177mA
|
90*80
|
|
CNC95X95-5.5
|
Epoxy
|
1.0W
|
5.5V
|
182mA
|
6.7V
|
203mA
|
95*95
|
|
CNC150X86-5.5
|
Epoxy
|
1.6W
|
5.5V
|
291mA
|
6.7V
|
324mA
|
150*86
|
|
CNC60X90-6
|
Epoxy
|
0.6W
|
6V
|
100mA
|
7.3V
|
112mA
|
60*90
|
|
CNC110X60-6
|
Epoxy
|
1.0W
|
6V
|
167mA
|
7.3V
|
186mA
|
110*60
|
|
CNC112X84-6
|
Epoxy
|
1.1W
|
6V
|
183mA
|
7.3V
|
204mA
|
112*84
|
|
CNC136X110-6
|
Epoxy
|
2.0W
|
6V
|
333mA
|
7.3V
|
372mA
|
136*110
|
|
CNC145X145-6
|
Epoxy
|
3.0W
|
6V
|
500mA
|
7.3V
|
558mA
|
145*145
|
|
CNC135X165-6
|
Epoxy
|
3.5W
|
6V
|
583mA
|
7.3V
|
652mA
|
135*165
|
|
CNC165X165-6
|
PET
|
4.5W
|
6V
|
750mA
|
7.3V
|
836mA
|
165*165
|
|
CNC170X230-6
|
PET
|
6.0W
|
6V
|
1000mA
|
7.3V
|
1108mA
|
170*230
|
|
CNC220X340-6
|
Epoxy
|
10W
|
6V
|
1670mA
|
7.3V
|
1859mA
|
220*340
|
|
CNC115X115-9
|
Epoxy
|
2.0W
|
9V
|
222mA
|
11.0V
|
248mA
|
115*115
|
|
CNC125X195-9
|
Epoxy
|
3.0W
|
9V
|
333mA
|
11.0V
|
372mA
|
125*195
|
|
CNC165X165-9
|
Epoxy
|
4.2W
|
9V
|
467mA
|
11.0V
|
520mA
|
165*165
|
|
CNC220X340-9
|
PET
|
10W
|
9V
|
1120mA
|
11.0V
|
1239mA
|
220*340
|
|
CNC110X110-12
|
Epoxy
|
1.8W
|
12V
|
150mA
|
14.6V
|
166mA
|
110*110
|
|
CNC130X110-12
|
Epoxy
|
1.92W
|
12V
|
160mA
|
14.6V
|
177mA
|
130*110
|
|
CNC110X136-12
|
Epoxy
|
2.0W
|
12V
|
167mA
|
14.6V
|
186mA
|
110*136
|
|
CNC213X92-12
|
Epoxy
|
2.5W
|
12V
|
208mA
|
14.6V
|
232mA
|
213*92
|
|
CNC145X145-12
|
Epoxy
|
3.0W
|
12V
|
250mA
|
14.6V
|
279mA
|
145*145
|
|
CNC115X85-18
|
Epoxy
|
1.5W
|
18V
|
83mA
|
22.0V
|
93mA
|
115*85
|
|
CNC170X170-18
|
Epoxy
|
4.5W
|
18V
|
250mA
|
22.0V
|
279mA
|
170*170
|
|
CNC170X220-18
|
PET
|
5.0W
|
18V
|
278mA
|
22.0V
|
308mA
|
170*220
|
|
CNC220X340-18
|
PET
|
10W
|
18V
|
556mA
|
21.6V
|
630mA
|
220*340
|
