Quick Details
-
Product name:
-
chiller unit
-
Name:
-
refrigerator freezing condensing unit
-
Voltage:
-
220V/50Hz
-
Application:
-
Refrigeration Parts
-
Horse power:
-
3HP
-
Compressor:
-
Electric Compressor
-
Compressor type:
-
Hermetic Rotary Compressor
-
Product Type:
-
refrigerated standby electric unit truck
-
Function:
-
Frozen Refrigeration Unit
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Weight:
-
89
-
Refrigerant:
-
R404a
-
Product name:
-
chiller unit
-
Name:
-
refrigerator freezing condensing unit
-
Voltage:
-
220V/50Hz
-
Application:
-
Refrigeration Parts
-
Horse power:
-
3HP
-
Compressor:
-
Electric Compressor
-
Compressor type:
-
Hermetic Rotary Compressor
-
Product Type:
-
refrigerated standby electric unit truck
-
Function:
-
Frozen Refrigeration Unit
Product Description

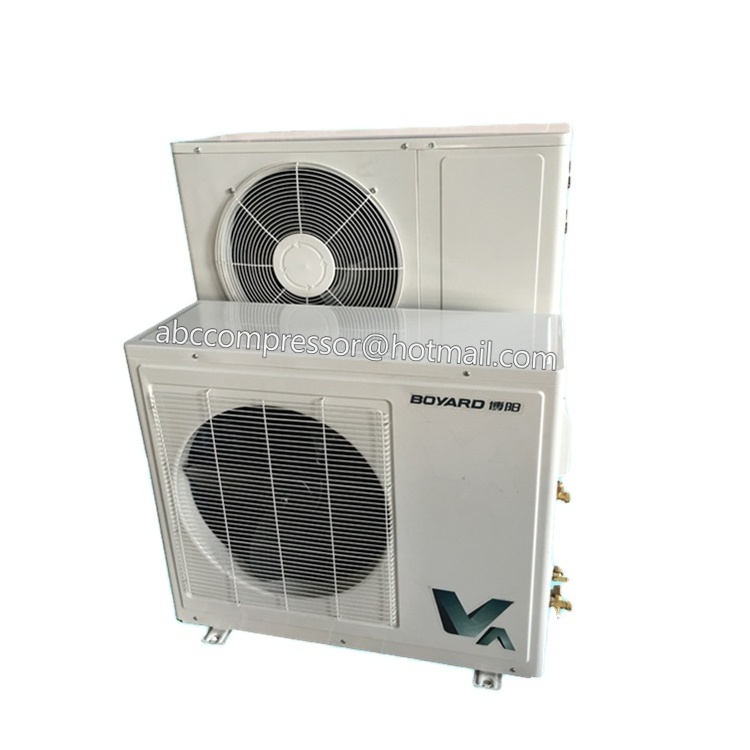

Outdoor Condensing unit
Refrigerant: R404A
Power: 220V~240V/50HZ
Capacity: 0.5 HP ~ 3 HP
Evaporating temperature: from -5 degree C to -40 degree C
Model:
Refrigerant: R404A
Power: 220V~240V/50HZ
Capacity: 0.5 HP ~ 3 HP
Evaporating temperature: from -5 degree C to -40 degree C
Model:
CDXL-047KA 0.50 HP
CDXL-065KA 0.75 HP
CDXL-085KA 1.00 HP
CDXL-105KA 1.25 HP
CDXL-123KA 1.50 HP
CDXL-158KA 2.00 HP
CDXL-180KA 2.50 HP
CDXL-200KA 3.00 HP
CDXL-065KA 0.75 HP
CDXL-085KA 1.00 HP
CDXL-105KA 1.25 HP
CDXL-123KA 1.50 HP
CDXL-158KA 2.00 HP
CDXL-180KA 2.50 HP
CDXL-200KA 3.00 HP
Low noise & vibration.
In the rotary type, noise and vibration is largely reduced compared with the reciprocating compressor.
Therefore noise generated by the unit can be reduced.
Therefore noise generated by the unit can be reduced.
High reliability.
High reliability is achieved due to high-quality material and high-accuracy parts.
High efficiency.
Using high efficiency rotary compressor and motor, energy saving.
Wide Evaporating temperature range. Evaporating Temperature is from -5 degree to -40 degrees.
Hermetic design and anti-corrosion housing design. Avoid of sunshine and raining effect.
Wide Evaporating temperature range. Evaporating Temperature is from -5 degree to -40 degrees.
Hermetic design and anti-corrosion housing design. Avoid of sunshine and raining effect.
Detailed Images
Size Information
|
HP
|
|
0.5
|
0.75
|
1
|
1.25
|
1.5
|
2
|
2.5
|
3
|
||||||||
|
MODEL
|
|
CDXL-047KA
|
CDXL-065KA
|
CDXL-085KA
|
CDXL-105KA
|
CDXL-123KA
|
CDXL-158KA
|
CDXL-180KA
|
CDXL-200KA
|
||||||||
|
NOMINAL INPUT
(W)①
|
|
470
|
650
|
850
|
1050
|
1230
|
1580
|
1800
|
2000
|
||||||||
|
REFRIGERANT
(MAX.KG)
|
|
R404A
(1.0)
|
R404A
(1.5)
|
R404A
(1.5)
|
R404A
(2.0)
|
R404A
(2.5)
|
R404A
(3.0)
|
R404A
(3.0)
|
R404A
(3.5)
|
||||||||
|
POWER SUPPLY
|
|
1PH 220V-240V/50Hz
|
|
|
|
|
|
|
|
||||||||
|
REFRIGERANT
|
|
R404a
|
|
|
|
|
|
|
|
||||||||
|
REFRIGERANT MAX.(KG)
|
|
1.2
|
1.2
|
1.5
|
1.5
|
2.0
|
2.5
|
2.5
|
3.5
|
||||||||
|
RUNNING CURRENT(A)
|
|
2.13
|
3.60
|
3.86
|
4.77
|
5.60
|
7.18
|
8.18
|
9.10
|
||||||||
|
MAX LOADING CURRENT(A)②
|
|
3.2
|
5.4
|
5.8
|
7.2
|
8.4
|
10.7
|
12.2
|
13.6
|
||||||||
|
AMBIENT TEMP. (°C)
|
|
5~43
|
|
|
|
|
|
|
|
||||||||
|
COMPRESSOR (MODEL)
|
|
JXD092KS
|
QXD-13K
|
QXD-16K
|
QXD-19K
|
QXD-23K
|
QXD-30K
|
QXD-36K
|
QXD-41K
|
||||||||
|
CONDENSER
|
HEAT RADIATING AREA(m²)
|
1.95
|
9
|
3.6
|
4.27
|
5.18
|
6.18
|
7.27
|
8.54
|
||||||||
|
|
HEAT DISSIPATING CAPACITY
(W)
|
2.9
|
2.108
|
5.4
|
6.41
|
7.77
|
9.27
|
10.9
|
12.8
|
||||||||
|
FAN MOTOR
|
DIA.*QTY
|
Φ250*1
|
Φ250*1
|
Φ400*1
|
Φ400*1
|
Φ400*1
|
Φ420*1
|
Φ420*1
|
Φ450*1
|
||||||||
|
|
OUTPUT POWER(W)
|
45
|
45
|
45
|
80
|
80
|
150
|
150
|
180
|
||||||||
|
|
AIR FLOW(m³/hr)
|
1000
|
1200
|
2200
|
2200
|
2800
|
2800
|
2800
|
3800
|
||||||||
|
PIPE (mm)
|
SUCTION
(INCH)
|
Φ9.52
(3/8")
|
Φ9.52
(3/8")
|
Φ9.52
(3/8")
|
Φ12.7
(1/2")
|
Φ12.7
(1/2")
|
Φ12.7
(1/2")
|
Φ12.7
(1/2")
|
Φ15.6
(5/8")
|
||||||||
|
|
LIQUID OUTLET
(INCH)
|
Φ6.35
(1/4")
|
Φ6.35
(1/4")
|
Φ6.35
(1/4")
|
Φ9.52
(3/8")
|
Φ9.52
(3/8")
|
Φ9.52
(3/8")
|
Φ9.52
(3/8")
|
Φ9.52
(3/8")
|
||||||||
|
OUT SIZE
|
LENGTH (mm)
|
650
|
720
|
760
|
760
|
760
|
850
|
850
|
865
|
||||||||
|
|
WIDTH (mm)
|
350
|
350
|
320
|
320
|
320
|
345
|
345
|
375
|
||||||||
|
|
HEIGHT (mm)
|
400
|
400
|
530
|
530
|
530
|
580
|
580
|
710
|
||||||||
|
WEIGHT(Kg)
|
|
22
|
24
|
29.5
|
32
|
35.5
|
47
|
48
|
55
|
||||||||
|
REFRIGERATION CAPACITY
|
EVAP. TEMP.(°C)
|
COOLING CAPACITY(W)
|
|
|
|
|
|
|
|
||||||||
|
|
-40
|
400
|
500
|
630
|
740
|
850
|
1200
|
1250
|
1423
|
||||||||
|
|
-30
|
510
|
790
|
820
|
900
|
1104
|
1506
|
1604
|
1828
|
||||||||
|
|
-25
|
601
|
950
|
950
|
1100
|
1240
|
1803
|
2030
|
2314
|
||||||||
|
|
-20
|
735
|
1160
|
1203
|
1400
|
1565
|
2200
|
2560
|
2918
|
||||||||
|
|
-15
|
882
|
1400
|
1430
|
1660
|
1890
|
2604
|
3050
|
3480
|
||||||||
|
|
-10
|
1074
|
1700
|
1705
|
1950
|
2130
|
2950
|
3500
|
3990
|
||||||||
|
|
-5
|
1269
|
2030
|
2050
|
2240
|
2460
|
3560
|
4230
|
4822
|
||||||||
Related Products
Packing&Shipping
Company Introduction
Head office & plant
New plant
Be launched in 2018, floor space of 110 bhou, building area of 40000m², more than 100 employees. With modern standard workshop, advanced intelligent equipment and mature production process, with capable of producing 250,000 condensing units annually. Complete quality and environmental management system has been established.
Compressor extension product design, manufacturing, sales, services, products are widely used in the supermarket refrigerator, logistics cold chain, cold storage, liquid cooling, battery heat management and other different application areas, to provide customers with fixed refrigeration field solutions suppliers.
FAQ
Q: What’s type of compressor of the condensing unit?
What’s the advantage compared to reciprocating compressors?
The compressor is rotary compressor. In the rotary type, noise and vibration is largely reduced compared with the reciprocating compressor. Therefore noise generated by the unit can be reduced. The COP of rotary compressor is 20% higher than reciprocating
compressor.
Q: Are you manufacturer?
Yes. We are professional manufacturer of rotary compressor and condensing units for more than 12 years.
Q: Do you have the warranty?
We have one year warranty for manufacturers.
Q: Which customers do you cooperated with?
We have cooperated with many domestic and international manufacturers, like PREAIR, KINGTEC, HAIER, SANYO, and DAYRELAX and so on.
Q: What are your payment terms?
T/T and L/C are both OK.
compressor.
Q: Can we use this condensing unit frozen room -22°C?
Yes. The evaporating temperature of condensing unit is from -5 degree to -40 degrees. It can use in frozen room also cold storage room.
Yes. The evaporating temperature of condensing unit is from -5 degree to -40 degrees. It can use in frozen room also cold storage room.
Q: Are you manufacturer?
Yes. We are professional manufacturer of rotary compressor and condensing units for more than 12 years.
Q: Do you have the warranty?
We have one year warranty for manufacturers.
Q: Which customers do you cooperated with?
We have cooperated with many domestic and international manufacturers, like PREAIR, KINGTEC, HAIER, SANYO, and DAYRELAX and so on.
Q: What are your payment terms?
T/T and L/C are both OK.
