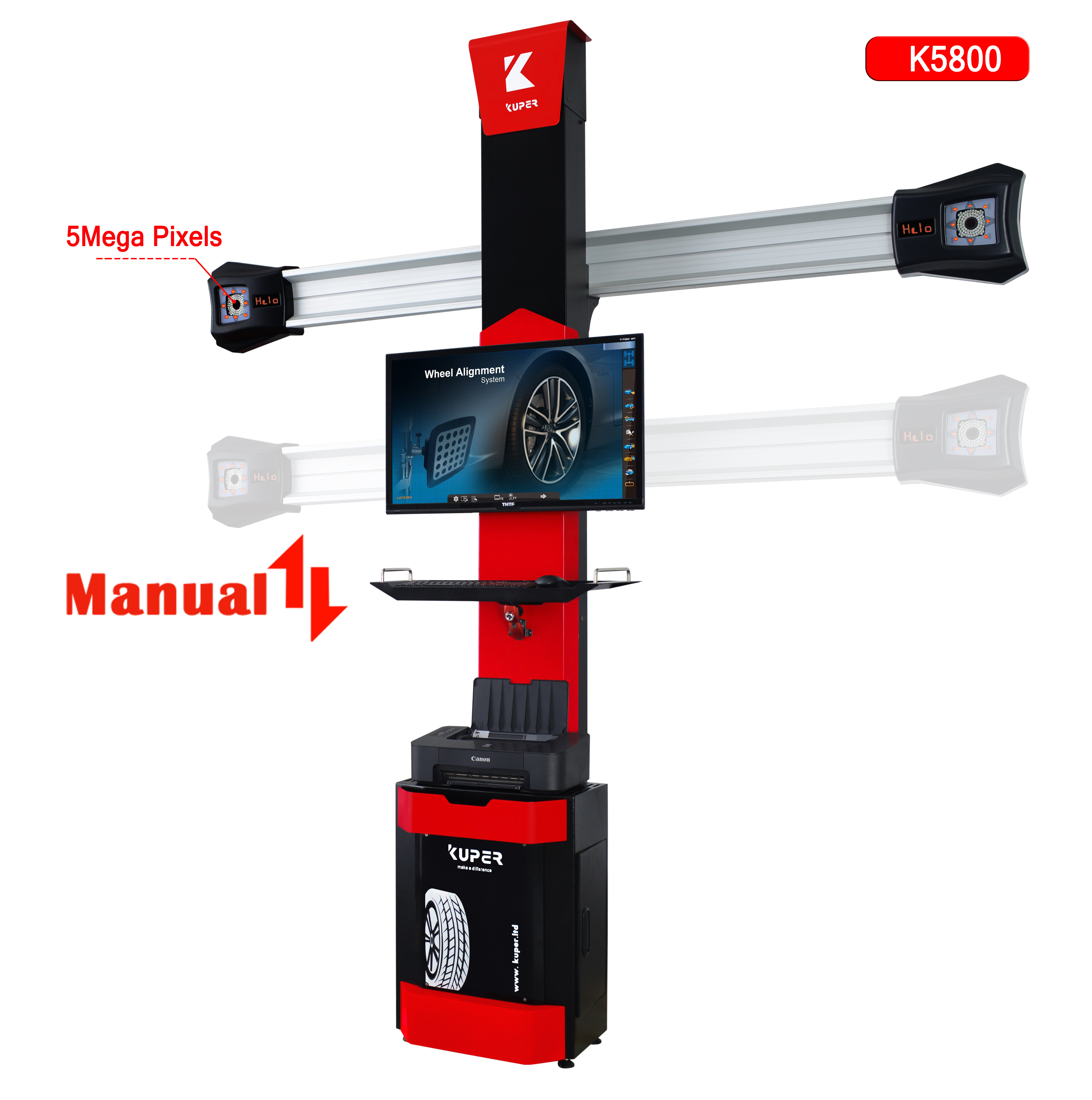

Equipped with black tech targets and mobile trolley touchless wheel adaptor. Magnesium
alloy protection ring.Match dual display system,make work more convenient
- Product Details
- {{item.text}}
Quick Details
-
Max. Wheel Weight:
-
No limit
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LAWRENCE
-
Model Number:
-
k5800
-
Warranty:
-
18 Months
-
Software:
-
3D Display
-
Certificate:
-
CE and ISO9001
-
Color:
-
Red
-
Product Name:
-
3D Wheel Alignment Machine
-
Certification:
-
CE ISO
-
Application:
-
Tire Workshop
-
Keywords:
-
Wheel Alignment Machine Automotive Workshop
-
Function:
-
Wheel Angles Measuring
-
Name:
-
Wheel Aligner System
-
Language:
-
Global
Quick Details
-
Power:
-
50Hz/ 60Hz
-
Power Supply:
-
110V/220V/380V
-
Balancing Speed:
-
216
-
Max. Wheel Weight:
-
No limit
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LAWRENCE
-
Model Number:
-
k5800
-
Warranty:
-
18 Months
-
Software:
-
3D Display
-
Certificate:
-
CE and ISO9001
-
Color:
-
Red
-
Product Name:
-
3D Wheel Alignment Machine
-
Certification:
-
CE ISO
-
Application:
-
Tire Workshop
-
Keywords:
-
Wheel Alignment Machine Automotive Workshop
-
Function:
-
Wheel Angles Measuring
-
Name:
-
Wheel Aligner System
-
Language:
-
Global
You May Like
Even if the rim, wheel clamp, and target axis are deformed, only one push measurement is needed to complete all the data compensation to obtain the most realistic wheel alignment parameters.
supports to clamp the tire from any direction
With powerful calculation system, which supports to clamp the tire by any direction and the use of touchless wheel clamping system. Even the tire pressure is insufficient, it can still get the best measurement data.
Apply 5.0 mega pixels high definition SONY cameras, five times higher than the industry average (1.3 mega pixels). Higher-pixel cameras capture more clear images, more accurate data, and support smaller targets.
Advanced Configuration Bring Us the Profits
The hardware configuration is much higher than the industry average to meet the most picky quality needs for various users.
The program can guide the operators to adjust the best position of camera crossbeam to finish the alignment measurement.
It can measure on the ground and adjust in higher position, as well as support the measurement and adjustment on 2-post and mini scissor lift by manual camera beam lifting system.
Support with different O.S: WindowsXP, Windows7, Windows10. Support for 32-bit and 64-bit systems.Free upgrade and installation system to ensure users can use the software smoothly. Remote control service is available to ensure customers running business effectively any time.
Leading i-TOE1 function (One of the only two in the industry), effectively apply to a variety of new and used vehicles. There is no need to test drive (improve the efficiency of equipment use and less labor costs), adjust the vehicle toe and the center of the steering wheel at one time. Improve the coverage of customers: new vehicles on the market account for 30%, old vehicles 70%. The i-TOE1 function can better apply to the adjustment needs of old vehicels. There is no need to test drive, and the steering wheel can be adjusted at one time.
The i-TOE 2 function (Top three in the world). Some vehicles have a lid on the bottom of the vehicle, so it is not possible to adjust the Toe below the vehicle. Only the front wheels turn to Toe in, and the Toe is adjusted at the rear of the front wheels. This feature can meet the needs of more complex models and increase potential profits.
Software Advantages
Product Paramenters
|
Measurement Range and Accuracy
|
|
|
|
|
|
|
|
|
||||||||
|
Items
|
Camber
|
Caster
|
S.A.I
|
Toe
|
Setback
|
Thrust Angle
|
Wheel base
|
Track Width
|
||||||||
|
Range
|
±45°
|
±40°
|
±40°
|
±30°
|
±15°
|
±15°
|
＜6m
|
＜3m
|
||||||||
|
Accuracy
|
±0.01°
|
±0.01°
|
±0.01°
|
±0.01°
|
±0.01°
|
±0.01°
|
±5m
|
±5m
|
||||||||
Measurement Functions
Basic Measurement:
Toe, Camber, Caster, Kingpin Inclination, Setback, Thrust Angle,Included Angle.
Additional Functions:
Max Turning Angle, Toe-out-on turn, Wheel Roll Radius Measurement , Tire Rotations Rate, Axle Offset, Wheel Offset, Track Width/Wheelbase, Vehicle Lifting Measurement, Alignment Platform Level Detection, Toe Constant Value Measurement, TwoWheelMeasurement (optional), Ride Height Measurement (optional).
Accessories & Parts
Product Package & Size
Why Choose Us
Factory View
FAQ
Q: Can computer and camera beam be installed in different room ?
A: Yes.We will provide different install solution according to your workshop condition.
Q:Cane we use 380V/50HZ as power supply ?
A:Yes,additional cost needed .
Q:Can you install wheel on cabinet make the machine movable?
A:Yes,but it's only valid on 8s and 708 model.
Q: How to update the database?
A:Freely whole life through online .
Q:Can you customize logo, color, interface on cabinet and software interface?
A:Yes.As long as the LOGO function for your request if you want to add or remove any function and database bank can be yours name also.
Q:Can I be exclusive representative?
A:We are looking for long term exclusive distributor except in Brazil ,India, South Africa, Pakistan, Malaysia. Welcome to join Lawrence!
Q:Can I buy wheel aligner kit ?
A:Yes ,but please be noted that our software can only operated with our own target plates and cameras.
Q:Can I get 2 years warranty or longer warranty ?
A:We offer 1 year warranty for free.2 year warranty with extra money.
Q:Can I pay in RMB currency?
A:Yes, but we need to add extra 20% based on the current price. Because we need to pay more tax ,so we suggest you pay in US dollars.
Q:How to calibrate the camera and target plates ?
A:For camera ,useless they are totally destroyed or crashed to deformation .They don't need calibration. Camera calibration need calibration bar. Target plates calibration is simple .The calibration finished in few minutes, following software instruction.
Q:Do I need to Re-Calibrate after equipment arrived and installed ?
A:No need, we already calibration well in factory before departure.
Q:Where Calibration Data Your Battle-Axe Designed ?
A:Inside of camera processor instead of inside software ,this design will save after service time for customer when their computer break
Q:What is delievery time ?
A:2 working days upon receiption of down payment .
Q:Could you send me a demo software ?
A:Yes. Contact us for download linkage.
Q:Could you translate the software language to our native language ?
A:We already have Spanish, English ,Portuguese, Japanese and Chinese language .If you need other language we can add it for you ,or you can help us transfer(we prefer this way ), We will offer you discount as your efforts .
Q:How to installation ?
A:Through video show training.
Q:How long is the lifetime of the machine ?
A:At least ten years, under good preservation .
