Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Guangxi, China
-
Model Number:
-
RVV
-
Product name:
-

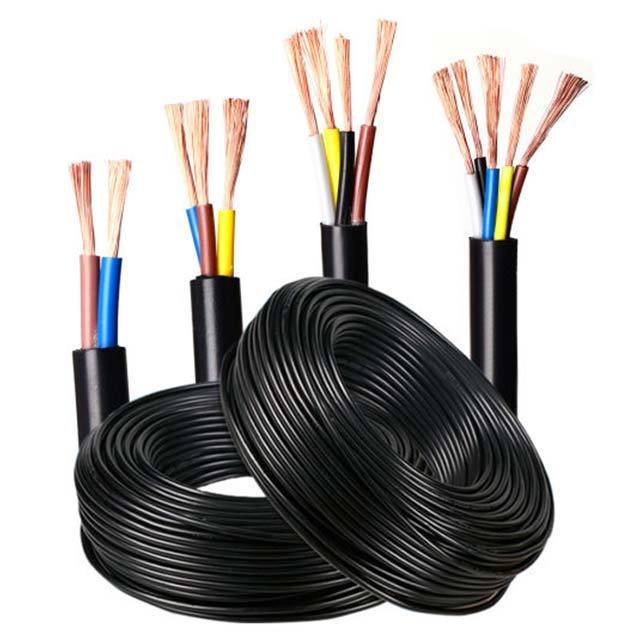

PVC insulated PVC sheathed circular joint flexible wire
-
Material:
-
copper+PVC+PVC
-
Colour:
-
BLACK
-
Adaptable Voltage (v):
-
450/750V
-
Specification:
-
multi core
-
MOQ:
-
100m
-
Sample:
-
free
-
Certificaion:
-
CE
-
Package:
-
seaworthy packing
-
Delivery time:
-
within 7 days
Quick Details
-
Application:
-
Underground
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Guangxi, China
-
Model Number:
-
RVV
-
Product name:
-
PVC insulated PVC sheathed circular joint flexible wire
-
Material:
-
copper+PVC+PVC
-
Colour:
-
BLACK
-
Adaptable Voltage (v):
-
450/750V
-
Specification:
-
multi core
-
MOQ:
-
100m
-
Sample:
-
free
-
Certificaion:
-
CE
-
Package:
-
seaworthy packing
-
Delivery time:
-
within 7 days
Product Paramenters
1. Product use
The product is suitable for fixed wiring of power plant and electrical equipment with rated AC voltage up to and including 450/750V.
2.operating characteristic
A)U0/U is 450/750V, 300/500V and 300/300V
B) The long-term allowable working temperature of the cable core shall not exceed 70℃
Bv-90 should not exceed 90℃, short-term working temperature can be raised
to 105℃
The cable laying temperature shall not be lower than 0℃
C) Allowable bending radius of cable:
If the cable outer diameter (D) is less than 25mm, it should not be less than 4D
If the cable diameter (D) is 25mm and above, it shall not be less than 6D
3.products model and technical parameters
|
Core NO×
nominal
cross section
mm2
|
conductor
species
|
Insulation
Thickness
mm
|
approximation protective layer thickness mm
|
sheath thickness rated value mm
|
|
average
outside diameter
mm
|
|
conductor biggest resistance at 20 ℃ Ω/k
|
||
|
|
|
|
|
lower limit
|
upper limit
|
Copper core
|
Tin plated copper
|
|
||
|
2×0.75
|
5
|
0.6
|
0.8
|
6.0 or
3.8×6.0 |
7.6 or
5.2×7.6 |
26.0
|
26.7
|
0.011
|
||
|
2×1
|
5
|
0.6
|
0.8
|
6.4
|
8.0
|
19.5
|
20.0
|
0.010
|
||
|
2×1.5
|
5
|
0.7
|
0.8
|
7.4
|
9.0
|
13.3
|
13.7
|
0.010
|
||
|
2×2.5
|
5
|
0.8
|
1.0
|
8.9
|
11.0
|
7.98
|
8.21
|
0.009
|
||
|
3×0.75
|
5
|
0.6
|
0.8
|
6.4
|
8.0
|
26.0
|
26.7
|
0.011
|
||
|
3×1
|
5
|
0.6
|
0.8
|
6.8
|
8.4
|
19.5
|
20.0
|
0.010
|
||
|
3×1.5
|
5
|
0.7
|
0.9
|
8.0
|
9.8
|
13.3
|
13.7
|
0.010
|
||
|
3×2.5
|
5
|
0.8
|
1.0
|
9.6
|
12.0
|
7.98
|
8.21
|
0.009
|
||
|
4×0.75
|
5
|
0.6
|
0.8
|
6.8
|
8.6
|
26.0
|
26.7
|
0.011
|
||
|
4×1
|
5
|
0.6
|
0.9
|
7.6
|
9.4
|
19.5
|
20.0
|
0.010
|
||
|
4×1.5
|
5
|
0.7
|
1.0
|
9.0
|
11.0
|
13.3
|
13.7
|
0.010
|
||
|
4×2.5
|
5
|
0.8
|
1.1
|
10.5
|
13.0
|
7.98
|
8.21
|
0.009
|
||
|
5×0.75
|
5
|
0.6
|
0.9
|
7.4
|
9.6
|
26.0
|
26.7
|
0.011
|
||
|
5×1
|
5
|
0.6
|
0.9
|
8.3
|
10.0
|
19.5
|
20.0
|
0.010
|
||
|
5×1.5
|
5
|
0.7
|
1.1
|
10.0
|
12.0
|
13.3
|
13.7
|
0.010
|
||
|
5×2.5
|
5
|
0.8
|
1.2
|
11.5
|
14.0
|
7.98
|
8.21
|
0.009
|
||
4.Flame retardant, fire resistance, low smoke halogen-free, termite and other shielding wire range:
(1) Flame retardant shielded wire is suitable for voltage 300/300V and below have flame retardant requirements of electrical appliances, instruments and electronic equipment and automation devices.
(2) Fire-resistant shielded wire is suitable for voltage 300/300V and below fire-resistant electrical appliances, instrumentation and electronic equipment and automation devices.
(3) Halogen-free low smoke shielded wire is suitable for voltage 300/300V and below, with low smoke, low poison and flame retardant fire resistance requirements of electrical equipment, instrumentation and electronic equipment and automation devices.
(4) Termite-proof shielded wire is suitable for electric appliances, instrumentation and electronic equipment and automation devices with voltage 300/300V and below where termite damage is more serious.
