Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ANISUN/DECAR
-
Model Number:
-
A-TC950
-
Warranty:
-
3 Years
-
Certification:
-
CE / ISO9001
-
NOISE LEVEL:
-
UNDER 75DB
-
Color:
-
Red/Bule
-
Trade Term:
-
FOB/EXW/CIF
-
Delivery Time:
-
Within 15 Days
-
Inside clamping:
-
10"-21"
-
Outside clamping:
-
12"-24"
-
Packing Size:
-
1100*860*980mm
-
Volume:
-
0.93
Quick Details
-
Motor Power:
-
0.75/1.1KW
-
Operating Pressure:
-
8-10bar
-
Power Supply:
-
220/380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ANISUN/DECAR
-
Model Number:
-
A-TC950
-
Warranty:
-
3 Years
-
Certification:
-
CE / ISO9001
-
NOISE LEVEL:
-
UNDER 75DB
-
Color:
-
Red/Bule
-
Trade Term:
-
FOB/EXW/CIF
-
Delivery Time:
-
Within 15 Days
-
Inside clamping:
-
10"-21"
-
Outside clamping:
-
12"-24"
-
Packing Size:
-
1100*860*980mm
-
Volume:
-
0.93

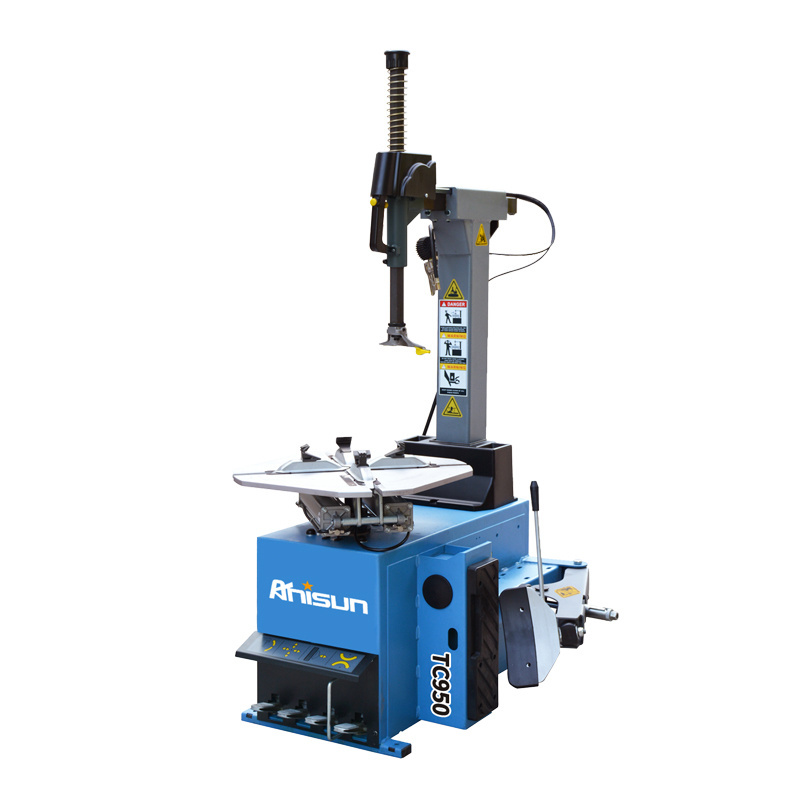

Product Description
|
Model
|
TC-950
|
Noise Level
|
<75dB
|
|
Rim Clamping from Outside
|
10″-21″
|
Net Weight
|
249KG
|
|
Rim Clamping from Inside
|
12″-24″
|
Gross Weight
|
261KG
|
|
Maximum Wheel Diameter
|
1040mm
|
Packing Dimension
|
1100*860*980mm
|
|
Wheel Width
|
3″-12″
|
Volume
|
0.93m³
|
|
Operating Pressure
|
8-10bar
|
Quantity in 20″Container
|
24
|
|
Motor Power
|
0.75/1.1KW
|
Quantity in 40″Container
|
52
|
Product Feature
2.The universal switch is 40A with a pure silver touching point, it can bear great load with a long using life.
3.
The clamp is made of special material, strong and durable.
4.The protective sheath of the bead breaker is optional.
Details Images
The mounting/demounting head with special steel sturdy, durable and noteasy to deform.
The process of tilt-back, forwarding and locking is acheieved by penumatic tool.
The head breaker system has two postions tp adjust and the blade has arc shovel desigg. It can rotate 360 degrees that make it easy to loosen the beam.
The horizontal slide device is specially fitted with manual control device and locking plate reinforcement devic, which make it more safe and stable to disassembly stiff-wall tire.
It's equipped with 41mm hexagonal shaft, 50mm square shaft, which can guarantee high bending strength. It's applied to low profile tyres and stiff sidewall tyres.
Front cover of pedal is removable, it is easy to repair when there is afte-salesservice problem of the pedal assembly.
