Quick Details
-
Brand Name:
-
HNJS
-
Dimension(L*W*H):
-
7933*2616
-
Weight:
-
11645
-
Product name:
-
20000L 1.6mpa liquid nitrogen container LO2 LAr LN2 tank
-
Application:
-
storage
-
Material:
-
S30408 stainless steel
-
Color:
-
Customers' Demands
-
Type:
-
Veritical or horizontal
-
Medium:
-
Liquid Nitrogen Oxygen Argon
-
Keywords:
-
liquid oxygen tank sizes
-
Volume:
-
20000L
-
pressure:
-
1.6Mpa
-
Certification:
-
ISO9001
Quick Details
-
Capacity:
-
20 cbm
-
Max Working Pressure(MPa):
-
2.16 MPa
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HNJS
-
Dimension(L*W*H):
-
7933*2616
-
Weight:
-
11645
-
Product name:
-
20000L 1.6mpa liquid nitrogen container LO2 LAr LN2 tank
-
Application:
-
storage
-
Material:
-
S30408 stainless steel
-
Color:
-
Customers' Demands
-
Type:
-
Veritical or horizontal
-
Medium:
-
Liquid Nitrogen Oxygen Argon
-
Keywords:
-
liquid oxygen tank sizes
-
Volume:
-
20000L
-
pressure:
-
1.6Mpa
-
Certification:
-
ISO9001

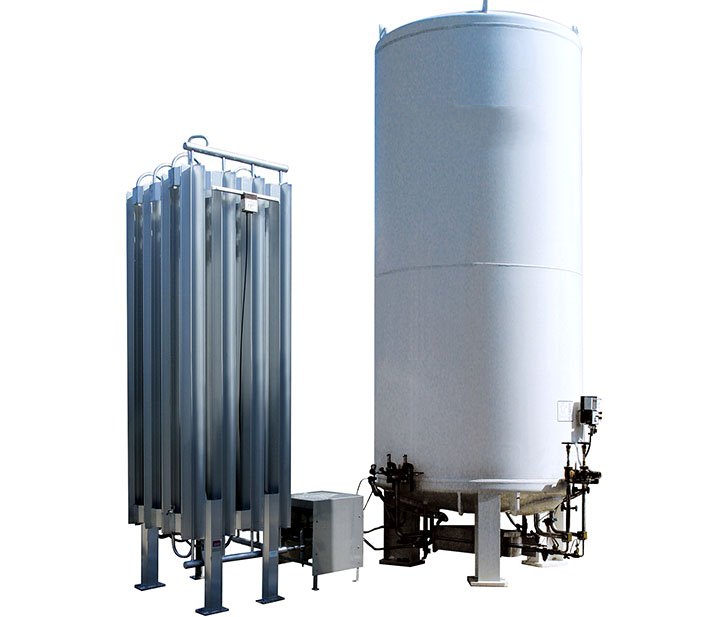

ASME or GB Standard Liquid Oxygen Nitrogen Argon Cryogenic Tank
Product Description
Liquid oxygen tank sizes for double wall, inner layer adopts S30408 stainless steel and outer layer adopts Q245R alloy steel, vertical or horizontal structure, adopt vacuum powder insulation, with the advantage of compact structure, low daily evaporation rate, small footprint, centralized control, safe, reliable, easy operation and maintenance.
Product Parameters
| Name |
L iquid oxygen tank sizes |
| Medium | Liquid Nitrogen Oxygen Argon |
| Material | inner liner S30408 stainless steel |
| outer layer Q245R alloy steel/Q235bcarbon steel | |
| Size(Dia*height*length)mm | 2716*2716*7361 |
| Pressure(Mpa) | 0.8-1.2 |
| Volume | 5000liter-150,000liter |
| Color | white or customized |
| Technics |
carbon steel used gas shielded arc welding
stainless steel used argon arc welding |
PS: We offer a complete range of L iquid oxygen tank sizes from 5000 liters to 150,000 liters and in both horizontal and vertical vessels. The data are for reference only.
Production Process
Application of L iquid oxygen tank
L iquid oxygen tank sizes, mainly applied to chemical engineering, steel processing, machine manufacturing, nonferrous metal smelting, metal constructions, hospital, gas charging station and so on. It can not only fill the cryogenic liquid bottle directly but also gasification pressurized filling normal temperature high pressure gas cylinder or build centralized gas station.
Certification
L iquid oxygen tank sizes certificate includes ISO9001, China special equipment manufacturing license (Class I pressure vessel, Class II low, medium pressure vessel, High pressure vessel, Class III low medium pressure vessel), radiation Safety license, Utility Model Patent Certificate.
Our Factory
Henan Jian Shen Metal Materials Co., Ltd. was established in 2000, has been committed to the production of pressure vessels, designed for the major enterprises to install high-quality products, Our company's main products are: cryogenic liquid storage tank, LNG/LPG liquid storage tank, cryogenic liquid pump, air vaporizer, gas pressure regulating device and pressure vessel etc.
Packaging&Deliveing
Sea transportation. Plastic packaging or according to customer s requirements
