Quick Details
-
Model Number:
-
2W160-15, 2W160-15
-
Brand Name:
-
VPC
-
body material:
-
brass
-
working terperature:
-
-5~80℃
-
max pressure:
-
1.05Mpa
-
acting type:
-
direct acting
-
seals:
-
NBR
-
type:
-
normal closed/normal open
-
Certificate:
-
CE RoHS
Quick Details
-
Port Size:
-
1/2", 1/ 2 inch
-
Warranty:
-
1 Year, 1 Year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
2W160-15, 2W160-15
-
Brand Name:
-
VPC
-
body material:
-
brass
-
working terperature:
-
-5~80℃
-
max pressure:
-
1.05Mpa
-
acting type:
-
direct acting
-
seals:
-
NBR
-
type:
-
normal closed/normal open
-
Certificate:
-
CE RoHS

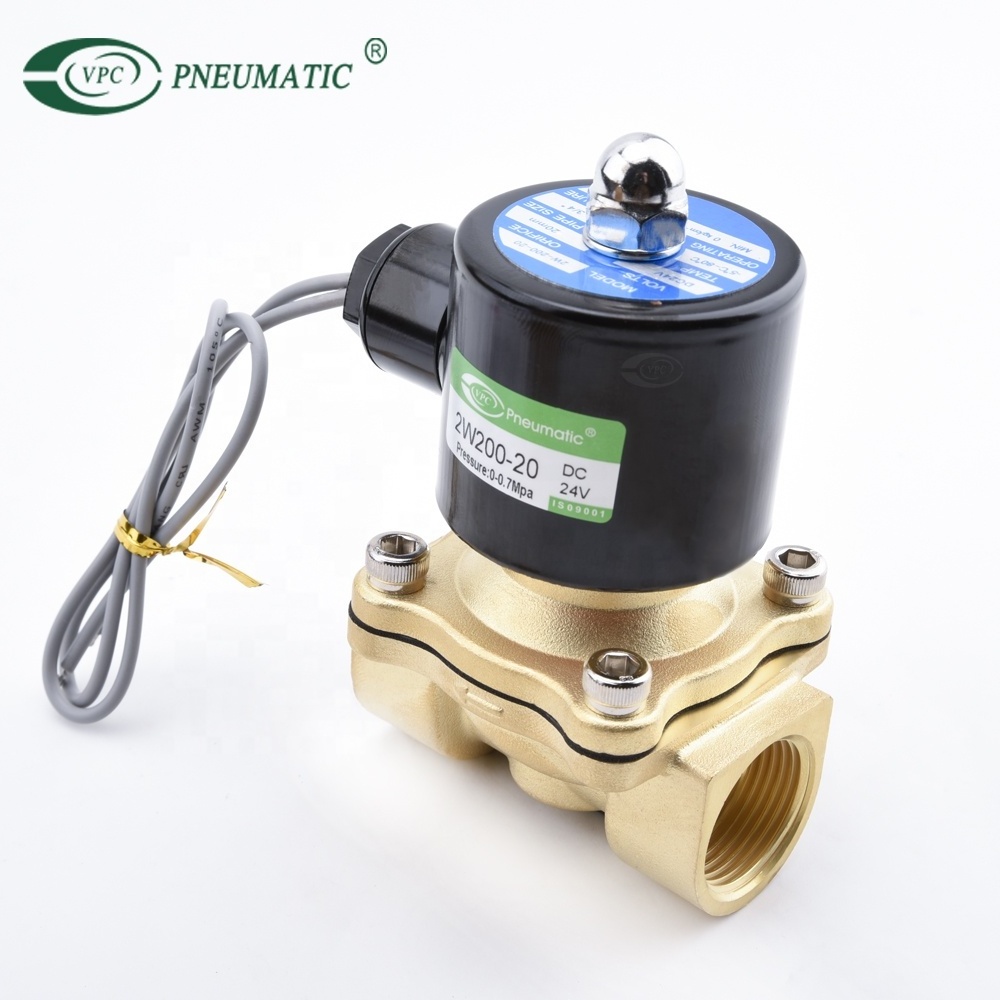

2W Series 2 Position 2 Port Big Orifice Solenoid Valves
Product Feature
2W series solenoid valve with big oriffice type, thread size range from 3/8" to 2", oriffice size range from 16mm to 50mm, with thread pipe connection and flange connection types. Din connector type and flying leads type, anti-explosion and anti-water coil are available. The initial state for normally closed, normally open only for oriffice with 16mm, 20mm and 25mm. With the stable function and extensive application, 2W valve is popular with customers.
|
Model
|
2W160-10
|
2W160-15
|
2W200-20
|
2W250-25
|
2W350-35
|
2W400-40
|
2W500-50
|
||||||
|
Working Medium
|
Air、Water、Oil、Gas
|
|
|
|
|
|
|
||||||
|
Acting Type
|
Direc Acting Type
|
|
|
|
|
|
|
||||||
|
Control Style
|
Normal Close/Normal Open
|
|
|
|
|
|
|
||||||
|
Orifice
|
16mm
|
|
20mm
|
25mm
|
35mm
|
40mm
|
50mm
|
||||||
|
CV Value
|
4.8
|
|
7.6
|
12
|
24
|
29
|
48
|
||||||
|
Joint Size
|
G3/8"
|
G1/2"
|
G3/4"
|
G1"
|
G1
1
/4"
|
G1
1
/2"
|
G2"
|
||||||
|
Working Pressure
|
Air:0~0.7Mpa ; Water:0~0.5Mpa ; Oil:0~0.5Mpa; Gas:0~0.7Mpa
|
|
|
Air、Water、Oil:0~2.0Mpa
|
|
|
|
||||||
|
Max.Pressure
|
1.05Mpa
|
|
|
3.5Mpa
|
|
|
|
||||||
|
Working Temperature
|
-5~80℃（The temperature can reach -5~150℃ if change the seal）
|
|
|
|
|
|
|
||||||
|
Valve Body
|
Brass
|
|
|
|
|
|
|
||||||
|
Seal material
|
NBR、VITON
|
|
|
|
|
|
|
||||||
Ordering Code
2W(UW) Series 2/2 Direct Acting Solenoid Valve(Big Orifice)
2W 160 - 15 F D
□
AC110V
2W→Type Code
2W:Direction Solenoid Valve
160→Orifice
160:16mm 200:20mm 250:25mm 300:30mm 350:35mm 400:40mm 500:50mm
15→Joint Size
10:3/8" 15:1/2" 20:3/4" 25:1"
35:1-1/4" 40:1-1/2" 50:2"
160→Orifice
160:16mm 200:20mm 250:25mm 300:30mm 350:35mm 400:40mm 500:50mm
15→Joint Size
10:3/8" 15:1/2" 20:3/4" 25:1"
35:1-1/4" 40:1-1/2" 50:2"
F→Mounting Type
Blank:Standard
F:With Flange
D→Coil Type
Blank:Flying leads
Blank:Flying leads
D:DIN Type
E:Anti-explosion Coil
G:Water-Proof Coil
□→Control Style
Blank:Normal Close T:Normal Open
AC110V→Standard Voltage
DC12V DC24V
Blank:Normal Close T:Normal Open
AC110V→Standard Voltage
DC12V DC24V
AC24V 50/60HZ AC110V 50/60HZ AC220V 50/60HZ AC380V 50/60HZ
Note:Only 2W160、2W200、2W250 valve can make normal open type
