Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
lc
-
Weight:
-
145 KG
-
Certification:
-
ce
-
Model No.:
-
LC-PA-400E
-
Product Appearance:
-
Round /oblate /flat
-
Max Printing Diameter(Round):
-
120mm
-
Max Printing Arc Length:
-
370mm(Round)
-
Max Printing Diameter(oblate):
-
500mm
-
Max Printing Area(flat):
-
320*220mm
-
Printing Speed:
-
1200 PC/H
-
Air Pressure:
-
0.5Mpa
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Voltage:
-
220v
-
Place of Origin:
-
China
-
Brand Name:
-
lc
-
Weight:
-
145 KG
-
Certification:
-
ce
-
Model No.:
-
LC-PA-400E
-
Product Appearance:
-
Round /oblate /flat
-
Max Printing Diameter(Round):
-
120mm
-
Max Printing Arc Length:
-
370mm(Round)
-
Max Printing Diameter(oblate):
-
500mm
-
Max Printing Area(flat):
-
320*220mm
-
Printing Speed:
-
1200 PC/H
-
Air Pressure:
-
0.5Mpa
Products Description

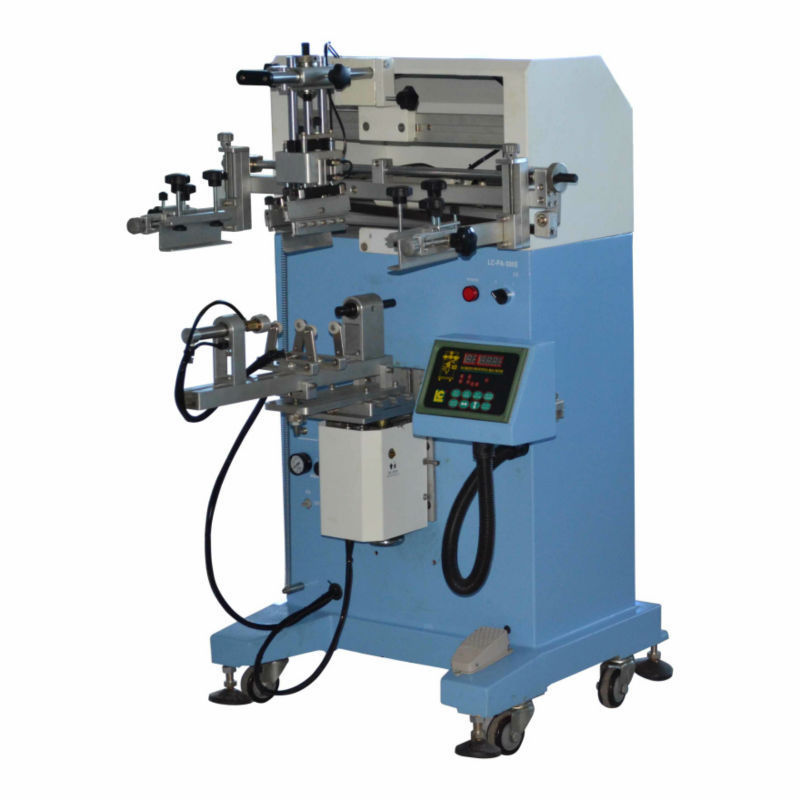

cylinder rotary screen printing machine
Our cylinder screen printer is multifunctional screen printing machine. it suitable to print on flat, round, oval shaped products.such as metal, plastic, ceramic, glass, wood etc.Printing objects such as lipstick, cosmetic bottles, scour bottles, drink bottles, oil-filter shell etc.Cylinder screen printers can print one color at one time. Once replacing frame and ink, they can print 2, 3^colors.
|
cylinder rotary screen printing machine
|
|
|
|
|||
|
model number
|
LC-PA-400E
|
printing bottle diameter
|
Φ120mm
|
|||
|
printing flat area
|
220*360mm
|
max product gradient
|
<14°
|
|||
|
Air supply
|
6 bar
|
power
|
50W
|
|||
|
power supply
|
AC110V/220V
|
machine dimension
|
1080*850*1280mm
|
|||
|
machine weight
|
145kg
|
printing color
|
one by one(can print multi colors)
|
|||
Machine Show
Details Images
Microcomputer control screen
High degree of automation,easy to operate,with four-digit automatic counter which convenient to
record the number of printed product
Precision printing head
Freely adjustable height
Ink return knife/rubber squeegee
Freely adjustable angle
T-slot aluminum alloy mesa
Lock firmly various molds
Samples
|
plastic bottles
|
glass bottles
|
plastic bottles
|
Cream bottle
|
|||
|
More samples pictures and video , please contact with us.
|
|
|
|
|||
More pictures and video of the machine , please contant with us.It can print various materials bottles, cups, tubes, etc.
