Quick Details
-
Length of aluminum ingots:
-
200~550mm
-
The inner diameter of container:
-
95mm
-
Length of container:
-
550mm
-
Output port size:
-
140*160mm
-
Height of main engine center:
-
950mm
-
Extrusion power:
-
645T
-
Rated system pressure:
-
21MPa
-
Main cylinder plunger diameter:
-
600mm
-
Main cylinder extrusion pressure:
-
590t
-
After-sales Service Provided:
-
Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
BOBO
-
Aluminum ingots diameter:
-
90mm
-
Length of aluminum ingots:
-
200~550mm
-
The inner diameter of container:
-
95mm
-
Length of container:
-
550mm
-
Output port size:
-
140*160mm
-
Height of main engine center:
-
950mm
-
Extrusion power:
-
645T
-
Rated system pressure:
-
21MPa
-
Main cylinder plunger diameter:
-
600mm
-
Main cylinder extrusion pressure:
-
590t
-
After-sales Service Provided:
-
Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
Product Description
Summary

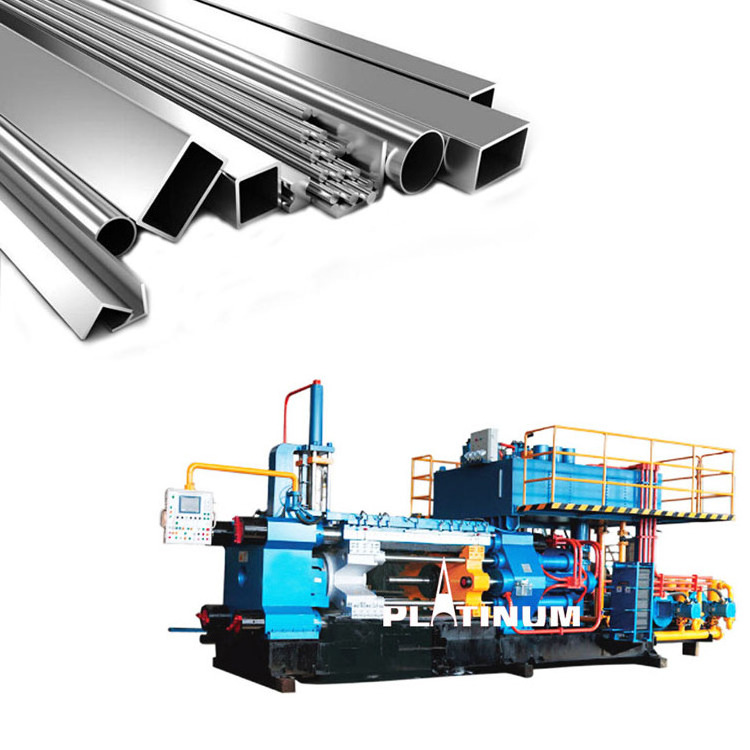

The aluminum extruder is the main machine, which is the power device for extruding the
profile.
* user to provide working medium: anti-wear hydraulic oil N68, about 2500Lone time.
* Power facilities provided by > users: 380V±10%; 50HZ 90KW
* cooling water source: cooling water quality: pH 6-8
Cooling water temperature: ≤30℃.
Circulating water flow: ≥10m3/ hour.
Circulating water pressure: 0.2-0.3MPa
profile.
* user to provide working medium: anti-wear hydraulic oil N68, about 2500Lone time.
* Power facilities provided by > users: 380V±10%; 50HZ 90KW
* cooling water source: cooling water quality: pH 6-8
Cooling water temperature: ≤30℃.
Circulating water flow: ≥10m3/ hour.
Circulating water pressure: 0.2-0.3MPa
Specification
|
Aluminum ingots diameter
|
Φ90mm
|
|
Length of aluminum ingots
|
200～550mm
|
|
The inner diameter of container
|
Φ95mm
|
|
Length of container
|
550mm
|
|
Output port size
|
Φ140×160mm
|
|
Electric power
|
380V±10%;50HZ 90KW
|
|
Height of main engine center
|
950mm
|
|
Extrusion power
|
645T
|
|
Rated system pressure
|
21MPa
|
|
Conventional aluminum bar specifications
|
φ90mm×（200-550）mm
|
|
Machine dimensions
|
7m×3.2m×2.8m
|
|
Main cylinder plunger diameter
|
φ600mm
|
|
Main cylinder extrusion pressure
|
590t
|
|
Side cylinder diameter
|
φ125mm/φ90mm
|
|
Side cylinder extrusion pressure
|
50t
|
|
Lock force of extrusion cylinder
|
103t
|
|
Shear mechanism diameter of oil cylinder
|
Φ125mm / Φ90mm
|
|
Shear force (working pressure 14MPa)
|
17T
|
|
The extrusion speed
|
0.2-8.6mm/s(adjustable) constant rate extrusion
|
|
Fast forward speed
|
295mm/s
|
|
Fast speed back
|
208mm/s
|
|
Opening speed of extrusion barrel
|
175mm/s
|
|
Closing speed of extrusion cylinder
|
152mm/s
|
|
Scissor descent rate
|
400mm/s
|
|
Scissor rising speed
|
500mm/s
|
Product packaging
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like
to have seamless cooperation with your forwarder at your convenience.
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like
to have seamless cooperation with your forwarder at your convenience.
