Quick Details
-
Brand Name:
-
Atopkoo
-
Model Number:
-
OD-S1
-
Item:
-
Smart Rim LOCK
-
Unlock Ways:
-
ID Card, Key,Remote control (optional)
-
Material:
-
Iron alloy
-
Memory Capacity:
-
1000 user's card ,With management card
-
Remote Capacity:
-
30 user's
-
Power:
-
4 AA Alkaline Battery OR external DC12V/350mA
-
Working temperature range:
-
-20℃--60℃
-
Weight/Size:
-
1.5KG/132Lx100Wx43H(mm)
-
Frequency:
-
13.56mHz,125kHz
-
Application:
-
Office, Home, Apartment
Quick Details
-
Door Type:
-
Aluminum door, Brass door, Stainless Steel door, Steel door, Wood door
-
Network:
-
bluetooth
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Atopkoo
-
Model Number:
-
OD-S1
-
Item:
-
Smart Rim LOCK
-
Unlock Ways:
-
ID Card, Key,Remote control (optional)
-
Material:
-
Iron alloy
-
Memory Capacity:
-
1000 user's card ,With management card
-
Remote Capacity:
-
30 user's
-
Power:
-
4 AA Alkaline Battery OR external DC12V/350mA
-
Working temperature range:
-
-20℃--60℃
-
Weight/Size:
-
1.5KG/132Lx100Wx43H(mm)
-
Frequency:
-
13.56mHz,125kHz
-
Application:
-
Office, Home, Apartment
Recommend Products
Features
* The length of the lock tongue>20mm,meet GA/T73-94 5.1.6B standard

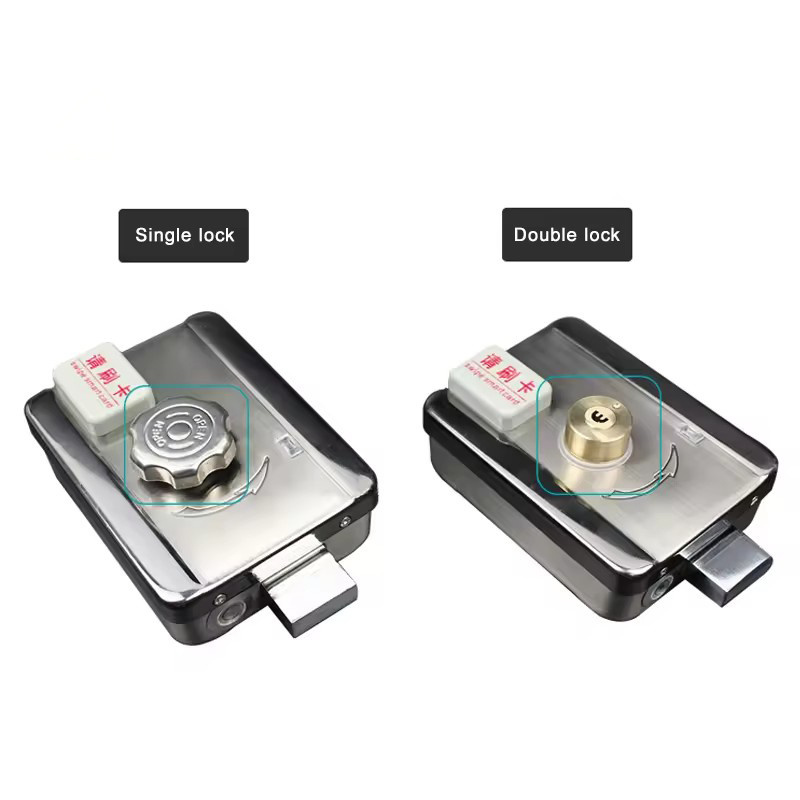

* Single end usually, Double end optional.
Single end:Exit the door by knob or Card,Enter the door by key or Card make you fell convenient
Double end: Exit or enter the door all by key or Card make you feel safety
* Can be compatible with building system of entrance guard system, etc
* Automatically detects the door status, automatic processing to open close the door
* Mistakenly lock or unlock after no entry, the door automatically locked in around 10 seconds
* Can be installed on the left door, right door, interior door, outside the door and other doors
* Power supply: DC 6V 4pc AA battery or external 12VDC electricity.
* Working temperature range -20℃--60℃
* Long life (more than 500,000), on / off, high sensitivity about ON/OFF, low power consumption
Specification
|
Brand Name
|
ATOPKOO /OEM
|
|
Model Number
|
OD-S1 RFID Smart Electro motor Lock
|
|
Material
|
Iron alloy
|
|
Colour
|
silvery/Customizable
|
|
Unlock way
|
ID Card, Key,Remote control (optional)
|
|
Memory Capacity
|
1000 user's card ,With management card
|
|
Remote Capacity
|
30 user's
|
|
Working voltage
|
DC 6V
|
|
Communication Interface
|
RFID
|
|
Frequency
|
13.56mHz,125kHz
|
|
Function
|
External card readeris available
|
|
Features
|
Low noise, Low consumption long life, convenient installation
|
|
Power supply
|
4 AA Alkaline Battery OR external DC12V/350mA
|
|
Application
|
Apartment, Home security,Entrance guard system
|
|
Working temperature range
|
-20℃--60℃
|
|
Weight/Size
|
1.5KG/132Lx100Wx43H(mm)
|
|
Door thickness
|
35-80mm
|
|
Door Type
|
Wood door, Security door, safety door, room door, metal doors, armored doors
|
