Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
T3-1
-
Name:
-

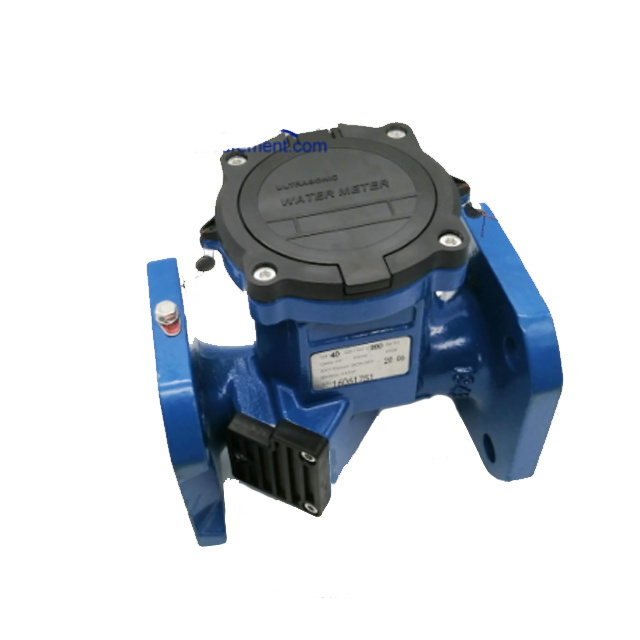

T3-1 Dual-Channel Bulk Ultrasonic Water Meter
-
Measurement Liquid:
-
Water, Sewage, Seawater and other liquid
-
Medium Temperature:
-
0.1-30℃
-
Working Environment:
-
erature;-10~45℃;Humidity≤100% (RH)
-
Working Pressure:
-
1.6Mpa(2.5Mpa optional)
-
The sensitivity:
-
U3
-
Communication Interface:
-
RS485/USART/INFRARED
-
Output signal:
-
wo way OCT pulse output/TTL pulse output/ one way 4-20mA output
-
Protection Class:
-
IP68, can work 2 meters under water
Quick Details
-
Warranty:
-
18 months
-
Type:
-
Ultrasonic meters
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
OEM
-
Model Number:
-
T3-1
-
Name:
-
T3-1 Dual-Channel Bulk Ultrasonic Water Meter
-
Measurement Liquid:
-
Water, Sewage, Seawater and other liquid
-
Medium Temperature:
-
0.1-30℃
-
Working Environment:
-
erature;-10~45℃;Humidity≤100% (RH)
-
Working Pressure:
-
1.6Mpa(2.5Mpa optional)
-
The sensitivity:
-
U3
-
Communication Interface:
-
RS485/USART/INFRARED
-
Output signal:
-
wo way OCT pulse output/TTL pulse output/ one way 4-20mA output
-
Protection Class:
-
IP68, can work 2 meters under water
Product Description
T3-1 Dual Channel Digital Ultrasonic Flow Water Meter
The conventional water meters suffer from the drawbacks that they are only operable at a higher flow rate and are insensitive to a small flow rate. However, the water meter can help tackle the bottleneck. And the meter is highly adaptable to diversified industrial conditions.
Specification
|
Place of Origin
|
Liaoning, China
|
|
Model Number
|
T3-1
|
|
Type
|
Ultrasonic meters
|
|
Name
|
T3-1 Dual-Channel Bulk Ultrasonic Water Meter
|
|
Measurement Liquid
|
Water, Sewage, Seawater(other liquid need to customized), liquid should be full of the pipeline
|
|
Medium Temperature
|
0.1-30℃
|
|
Working Environment
|
erature;-10~45℃;Humidity≤100% (RH)
|
|
Working Pressure
|
1.6Mpa(2.5Mpa optional)
|
|
The sensitivity
|
U3
|
|
Communication Interface
|
RS485/USART/INFRARED
|
|
Output signal
|
wo way OCT pulse output/TTL pulse output/ one way 4-20mA output
|
|
Protection Class
|
IP68, can work 2 meters under water
|
|
Digital display
|
Multi line 9 digital accumulative flow, 4 digital display for instantaneous flow, varies of state prompt and units
|
|
Data Storage
|
EEPROM/FLASH, automatically record the accumulative flow of last 512 days
|
|
Measurement cycle
|
Measuring:1 times/ second;Verification;4 times/second
|
|
Power consumption
|
≤2.7AH/Year, 6 year battery life
|
